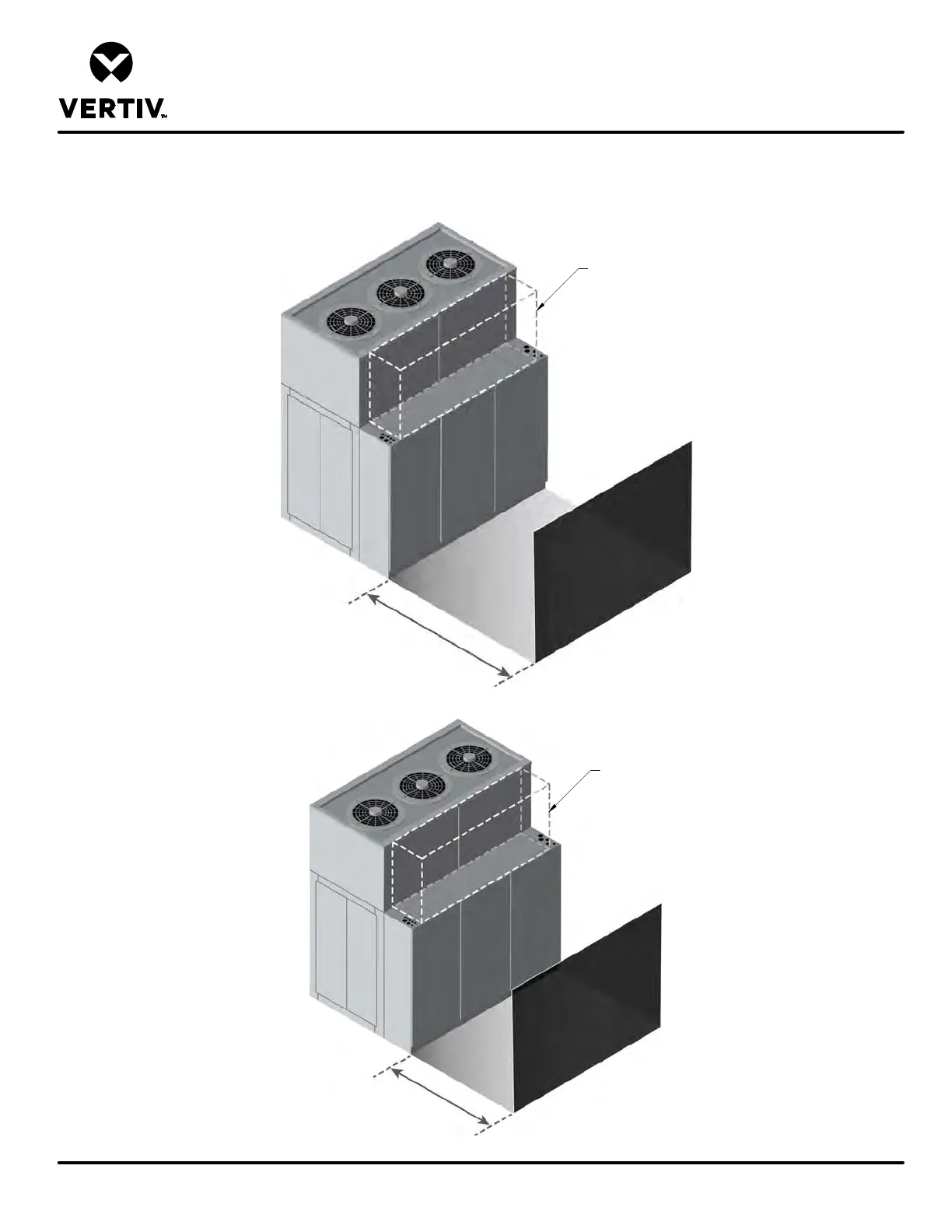

INSTALLATION & SERVICE CLEARANCE DATA DA250, DA265
LIEBERT
®
DSE
88"
(2235mm)
Data Hall
Fan service zone
Piping & Cables
must not be
routed in this zone.
Gallery Side
Full Unit and
Electrical Panel
Access
Data Hall
Fan service zone
Piping & Cables
must not be
routed in this zone.
Gallery Side
68"
(1727mm)
Unit Disassembly access
and Electrical Panel access
INSTALLATION, SERVICE, AND MAINTENANCE FROM GALLERY
