Vertiv Liebert PSA4 - Controls and Indicators

The Liebert PSA4 is shipped with the following items:
• CD with Liebert MultiLink® Shutdown Software and User manual (electronic version)
• USB cable; one 1.8m (6 ft.) long
• Coax cable; one 1m (3ft.) long
• User Manual with warnings safety instructions and WEEE recycling sheet
(ISO14001compliance)

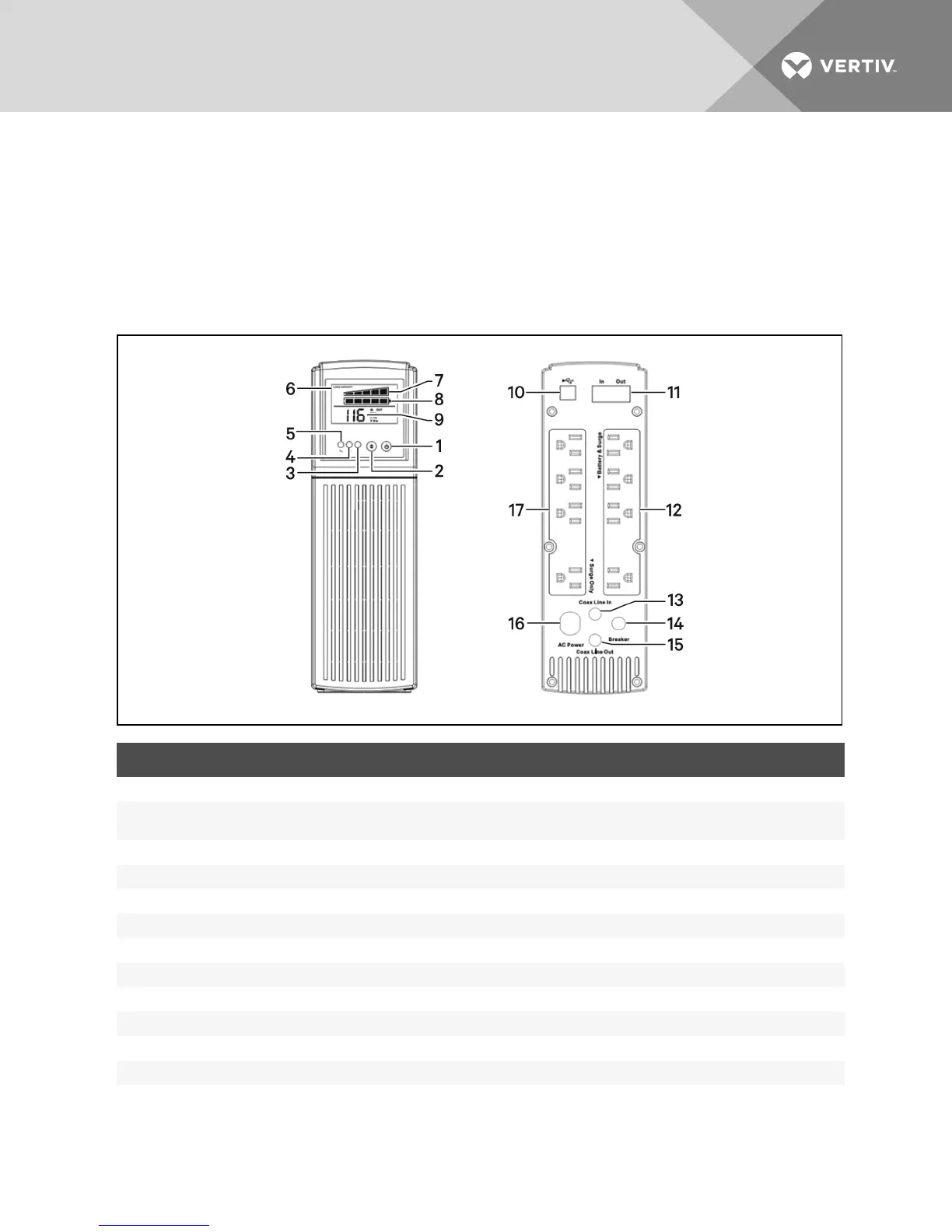

1.1 Controls and Indicators
ITEM DESCRIPTION
1 On/Off button.
2
Scroll button.
To scroll through the LCD-display parameters and, when on battery power, silences the audible alarm.
3 Fault LED (red).
4 Battery operation LED (amber).
5 On Utility LED (green).
6 LCD display with icons and:
7 State 1: Load Capacity bar in 20% increments.
8 State 2: Battery Capacity bar in 20% increments.
9 State 3: Numeric information to display UPS operational parameters.
10 Type B USB port for USB communication, monitoring and control.
11 RJ11/45 connectors for phone/fax/modem or network surge protection.
12 Battery-backed and surge-protected output power receptacles.
13
Coax Cable Line In
for cable modem, DSS receiver, or cable-TV converter surge protection.
Vertiv | Liebert® PSA4™ Installer/User Guide | 6
