Vertiv™ NetSure™ 5100 Series -48 VDC Power System User Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
16

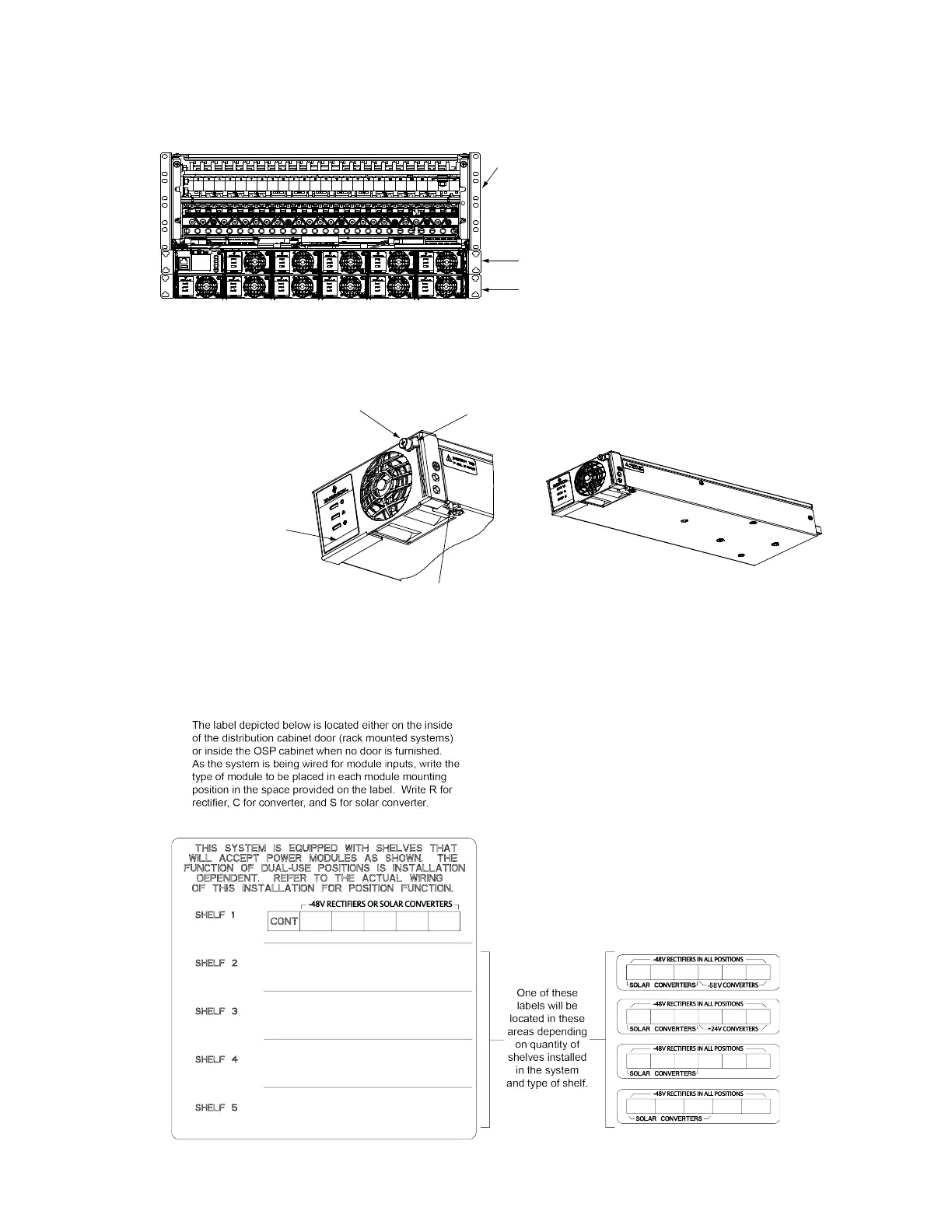

Figure 4.5 Installing Rectifier and -48 VDC to +24 VDC Converter Modules (List 27)
Figure 4.6 Module Position Identification Label
Rectifier or Converter Module
Model Number Label
(R48-2000e3 Rectifier)
(S48-2000e3 Solar Converter)
(C48/24-1500 Converter)
Captive Screw
Latch
Handle
Front
Up to Four (4) Additional Module Mounting Shelves
588705300
List 01, 04, 05: Rectifier, Solar Converter,
Converter Mounting Positions
List 21, 24, 25: Rectifier, Solar Converter
Mounting Positions
(See PD588705300)
One (1) Module Mounting Shelf w/ Controller
588705300 List 11, 14, 15: Controller, Rectifier,
Solar Converter Mounting Positions
(See PD588705300)
23-inch, 1-Row
Distribution Cabinet
The distribution panel is shipped configured
with all -48 VDC distribution positions.
When using converter modules, you MUST
change the last four (4) positions to +24
VDC distribution positions in the field.
