Vertiv™ NetSure™ 5100 Series -48 VDC Power System User Manual

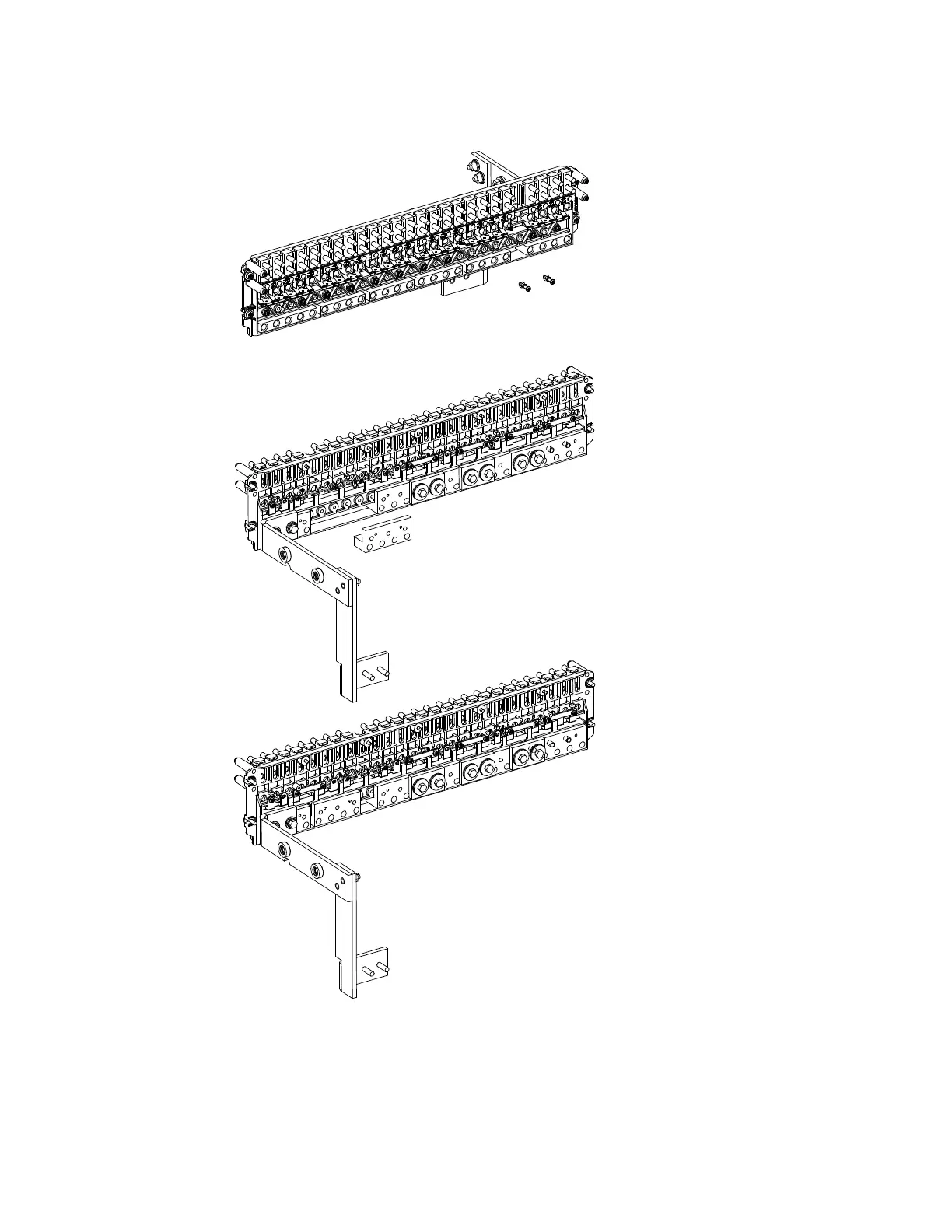

Figure 4.15 Moving Distribution Device Busbar Over One Position

Remove screws

to remove the

dev

ice busbar.

Move device busbar over

one position and resecure.

Rear

Front

Device Busbar

(secured on front of panel)

Move device busbar over

one position and resecure.

Torque to 9.6 in-lbs

Note: No need to move device busbar,

when moving positions in the

List FA-FE panels.

Table of Contents3
Admonishments Used in this Document5
Important Safety Instructions6
Safety Admonishments Definitions6
Safety and Regulatory Statements6
Déclarations de Sécurité Et de Réglementation6
Customer Documentation Package7
System Description8
Operating Procedures10
Controller10
Solar Mode10
ESTOP Function11
EPO (Emergency Power Off) Function (if Equipped with Optional Inverter System)11
Controller Battery Charge Current Limit Feature12
Local Controls and Indicators12
List 60 Hybrid Connection Cabinet16
Maintenance18
System Maintenance Procedures18
Adding a Module to an Existing Module Mounting Assembly18
Installing a Field Expansion Module Mounting Assembly23
Installing Field Expansion Module Mounting Assembly Spacer Kit, P/N 56007528
Adding an Inverter Module to an Existing Inverter Module Mounting Assembly30
Reconfiguring a Dual Voltage Distribution Panel (List DA, DB, DC, DD, DE, FA, FB, FC, FD, FE)32
Reconfiguring the Distribution Voltage on Positions 23 to 26 of a List DF Distribution Panel Installed in a List 27 Distribution Cabinet38
Installing a Front Door Kit43
Troubleshooting and Repair45
Contact Information45
Controller, Rectifiers, Solar Converters, Optional -48 VDC to +24 VDC Converters, Optional -48 VDC to -58 VDC Converters and Optional Inverters45
Controller Configuration45
System Troubleshooting Information45
Replacement Information47
Replacement Procedures47
Replacing a Rectifier, Solar Converter, Optional -48 VDC to +24 VDC Converter, or Optional -48 VDC to -58 VDC Converter and Inverter47
Replacing the NCU Controller47
Replacing a Distribution Device47
Circuit Card Replacement Procedures51
Replacing a Distribution Panel in a List 20, 25 Distribution Cabinet64
Replacing a Distribution Panel in a List 21, 26 Distribution Cabinet67
Replacing a Battery or Load Disconnect Contactor in a List 20, 25 Distribution Cabinet70
Replacing a Battery or Load Disconnect Contactor in a List 21, 26 Distribution Cabinet73
