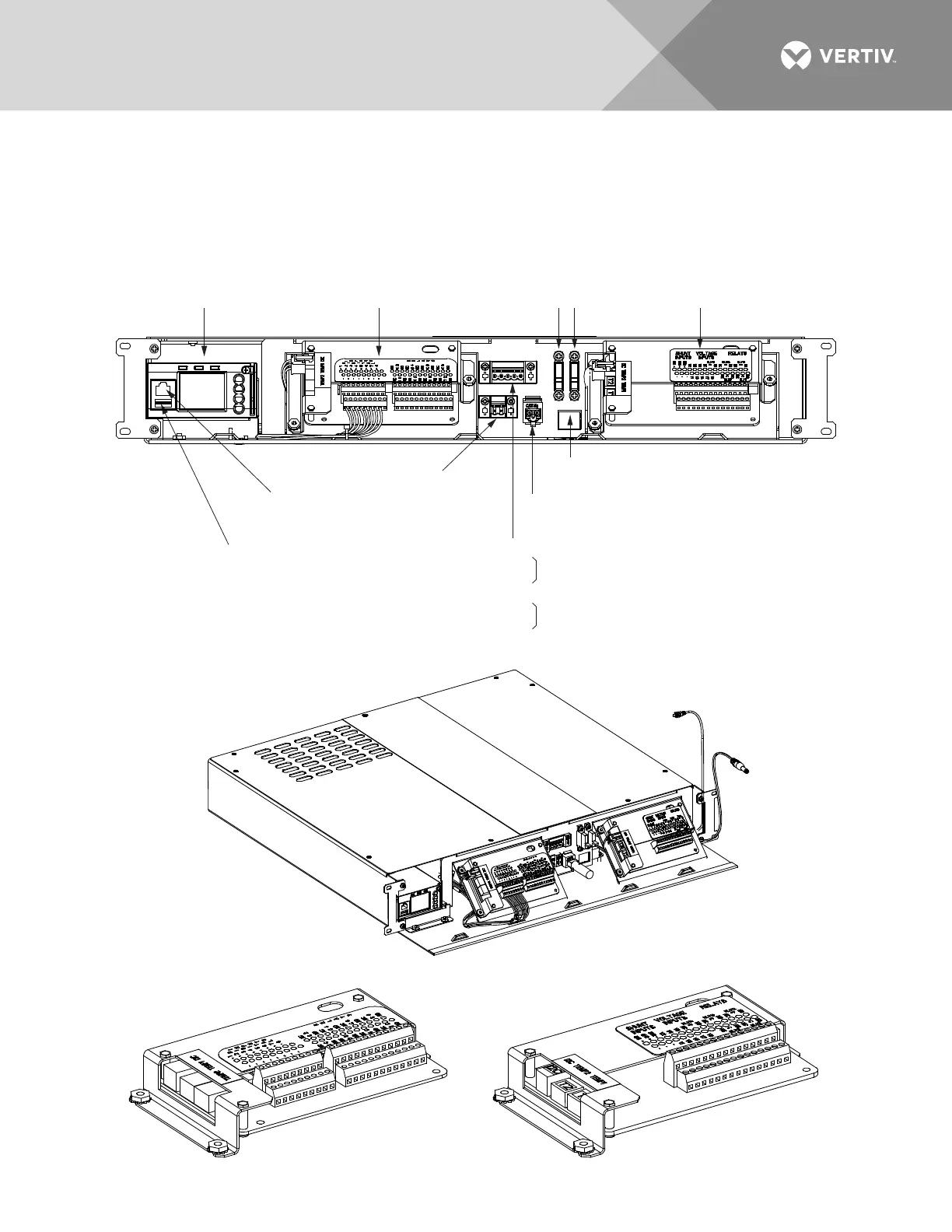

Figure 7: Detail C – Primary Power/Distribution Bay or Primary Power Only Bay System Monitoring and Control
Section
EIB Assembly
EIB Assembly
IB2 Assembly
IB2 Assembly
Ethernet Port (NCU)
(Front Door Display)
TB2
(for future use)
TB1
RS-485 Port 1 / Port 2
TB1-1 RS485_1A
TB1-2 RS485_1B
TB1-3 C_GND
TB1-4 RS485_2A
TB1-5 RS485_2B
1 5
TB1
TB2
CAN Port
(to supplemental bay)
10Base-T Ethernet Port (IB4 Board)
(Local Area Network)
NCU
Controller
IB2
Controller
Interface Board
EIB
Controller Extended
Interface Board
USB Port
F1
Power to
Distr. DSM
(3A)
F2
Power to
Touch
Screen
(1-1/3A)
South Bound Port
North Bound Port
Primary Bay Control Shelf
