Vertiv | NetSure™ 8200 Series -48 VDC Power System User Manual (UM582140000) | Rev. A
22

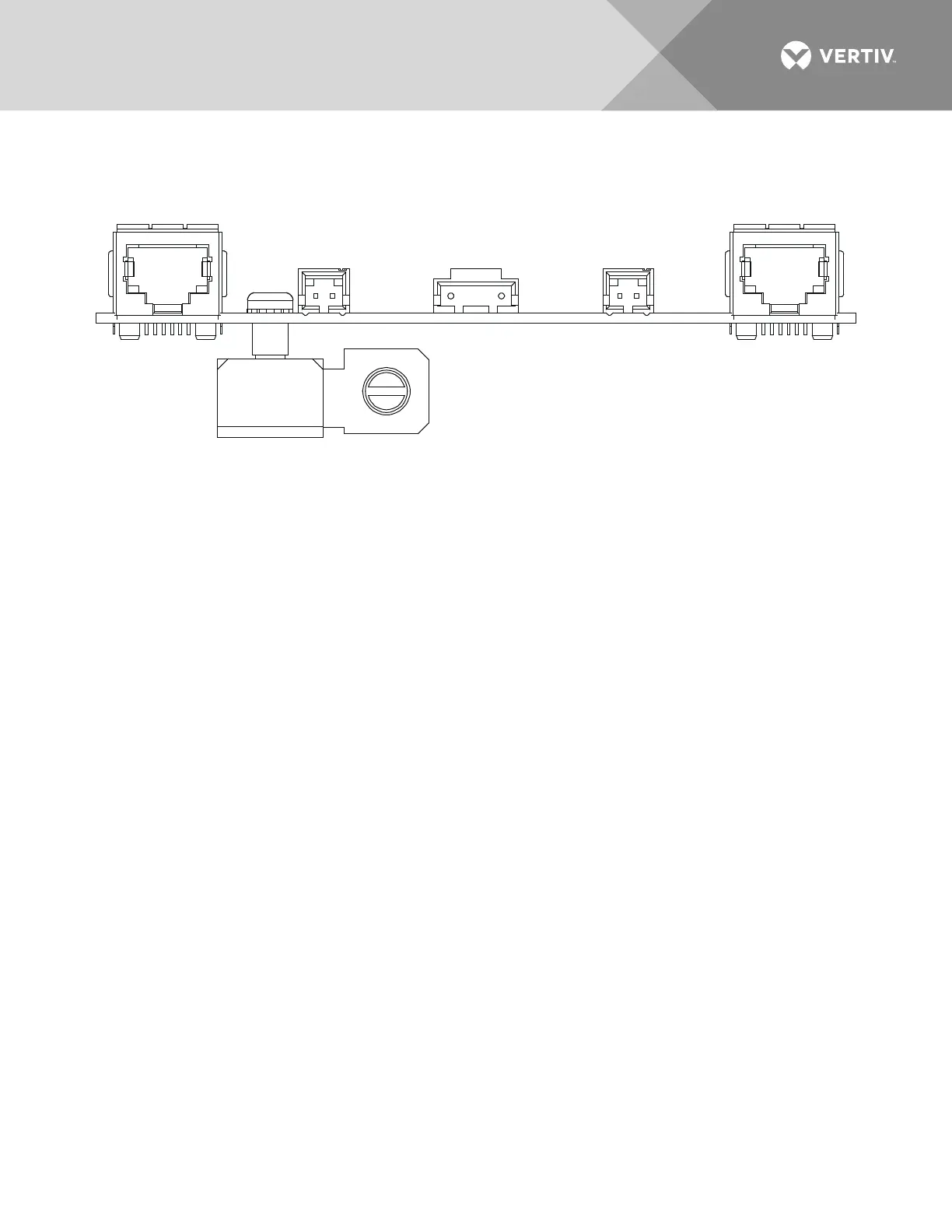

Figure 11:
Detail G - CAN Interface Circuit Card (Distribution Only Bays)
CAN Interface Circuit Card
(DISTRIBUTION ONLY BAYS)
RJ-45
Jack
RJ-45
Jack
NCU Network Connector
(incoming)
NCU Network Connector
(outgoing)
