Vertiv NetXtend Flex 20

To Next Page

To Previous Page

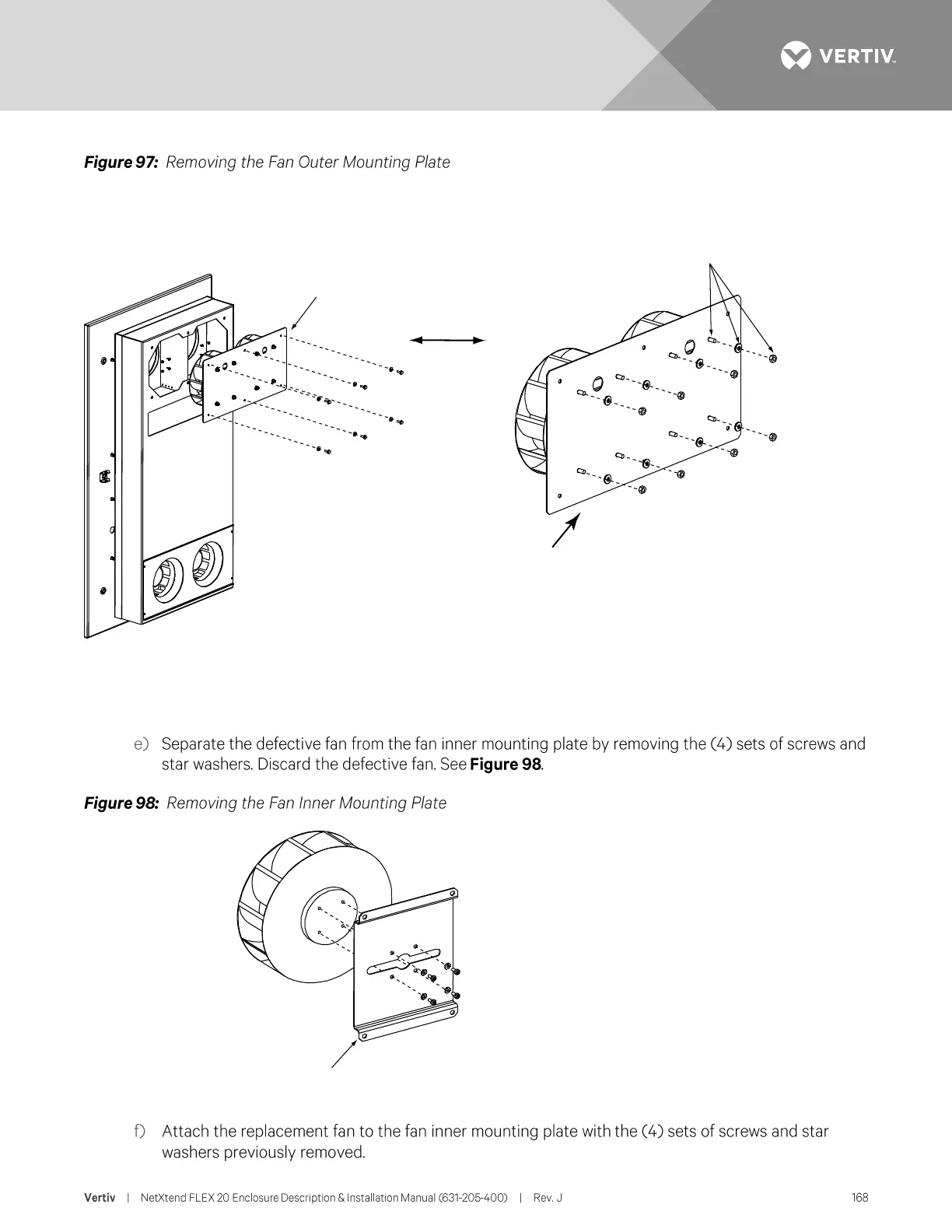

(8) Sets (4 sets per fan)

- 1/4-20 x 0.75 Machine Screws

- No. 10 Flat Washers

- M5 Hex Nuts

(6 sets per mounting plate)

- No. 8 Flat Washer

- 8-32 Lock Nut

Fan Outer

Mounting Plate

Fan Outer

Mounting Plate

Outside of Door with

Shrouds Removed

(4 sets per fan)

- #8 Lock Washers (External Tooth)

- Pan-head Screws

Fan Inner

Mounting Plate
