Vertiv NetXtend Flex 20

To Next Page

To Previous Page

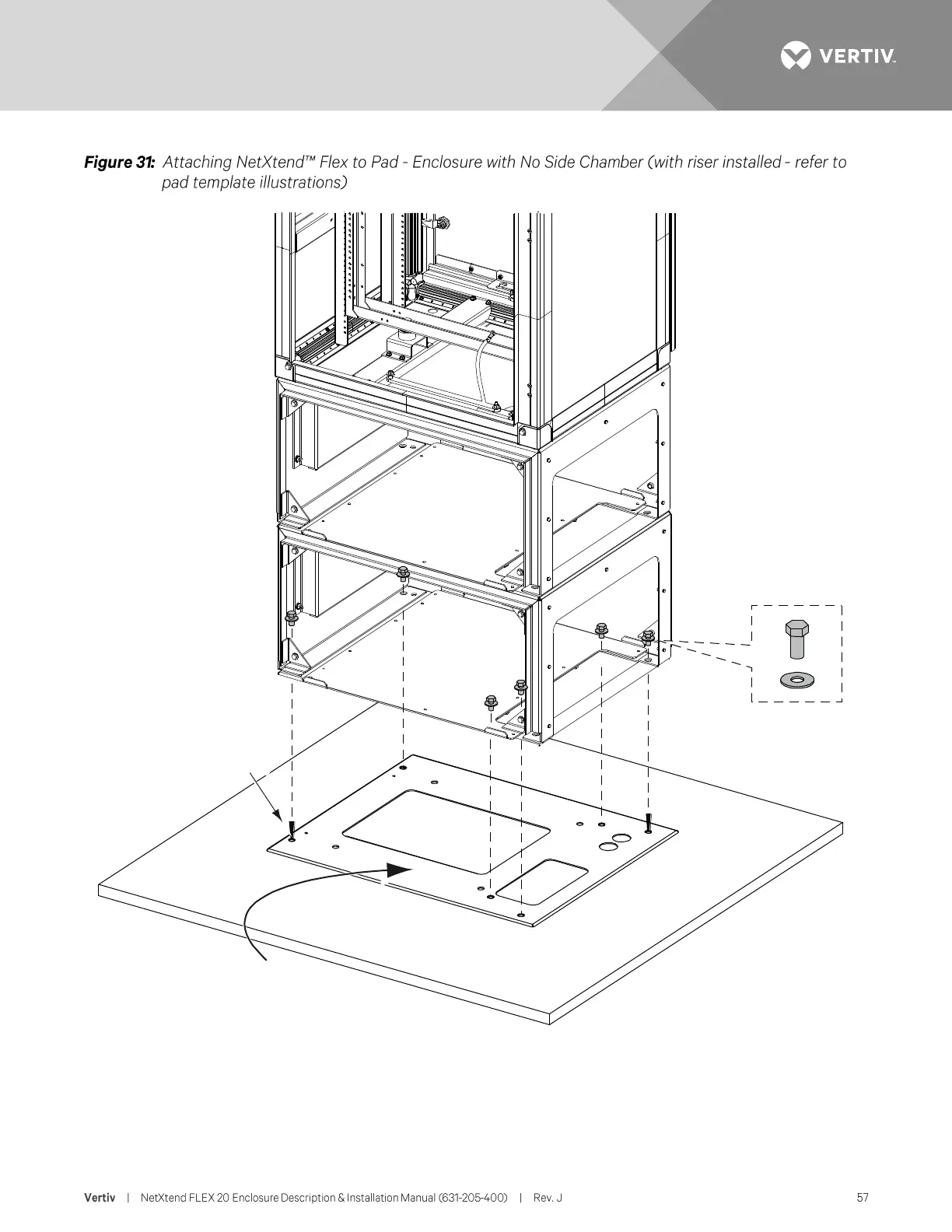

Place Anti-Corrosion

Barrier Pad Over Pad Template

Before Attaching Riser

components removed

in illustration for clarity

Install Hardware

as Shown (6 Plcs)

(1/2-13)

Guide pins

for lowering cabinet onto

exact location for mounting

(2 plcs)

Guide pins

for lowering cabinet onto

exact location for mounting

(2 plcs)
