Push

Block

Here

Push

Block

Here

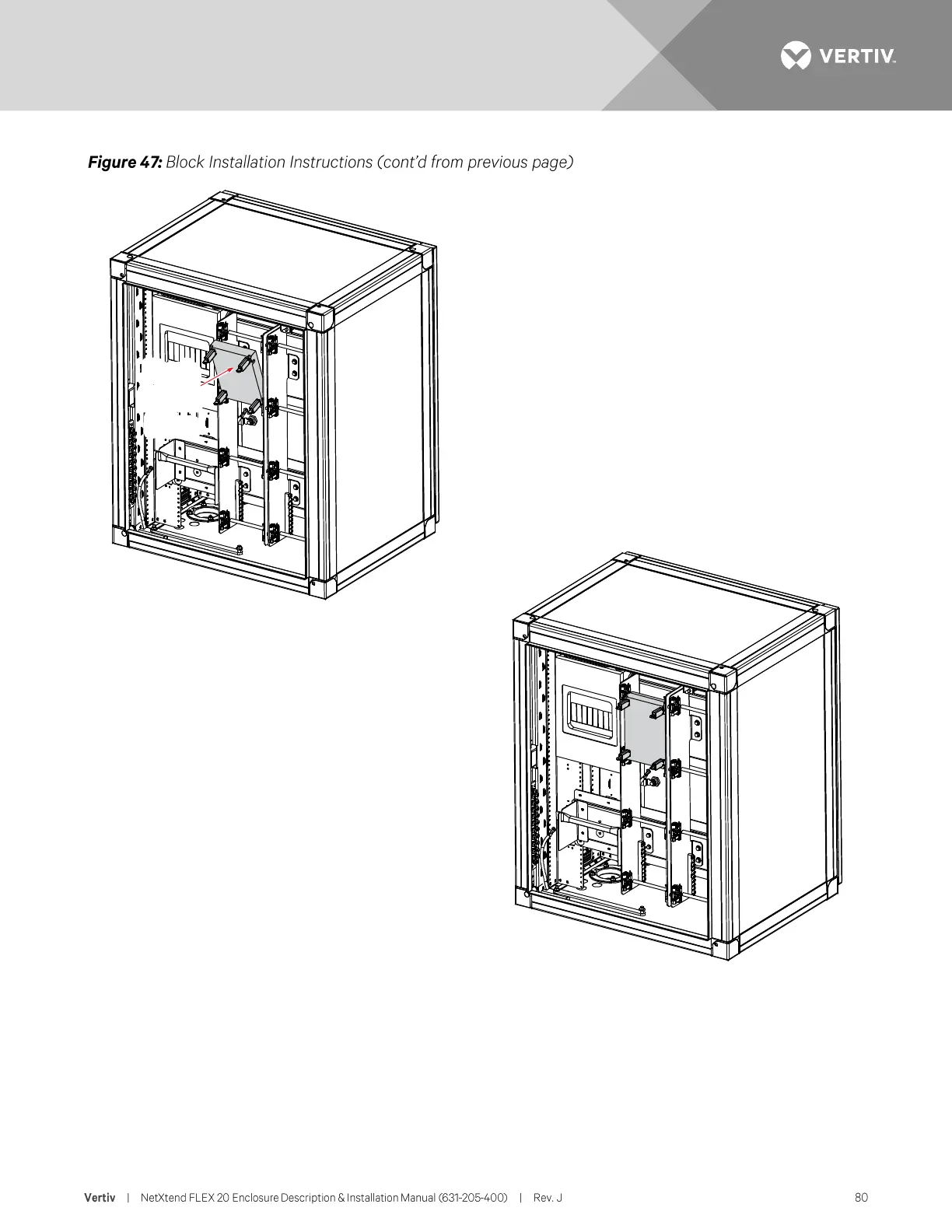

Step 3: Push the top surface of the M307 block towards

the snap hooks.

Step 4: Fix the M307 block by locking with snap hooks.

To remove the block, move the snap hooks and

pull out the block.
