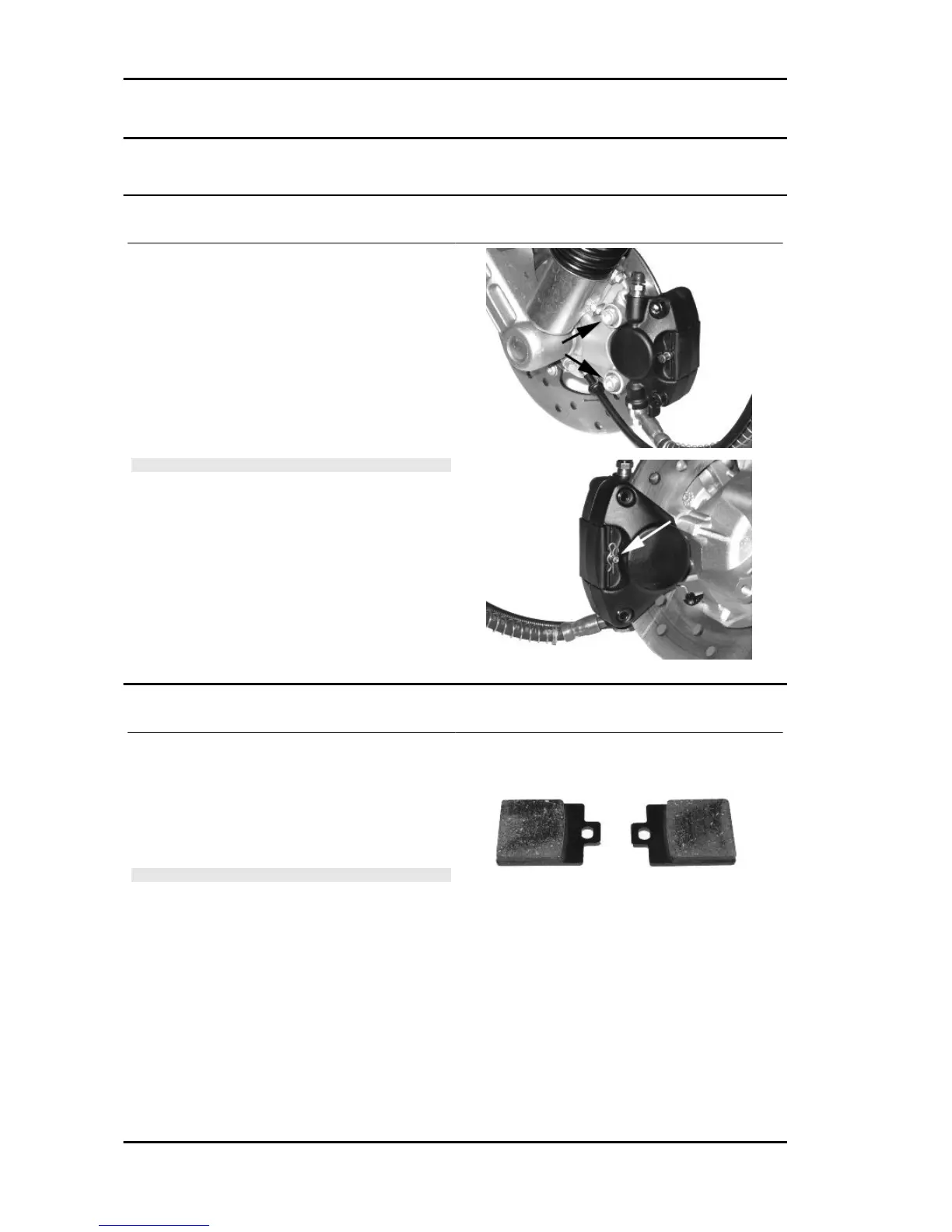

Front brake calliper
Removal
- Remove the front wheel.
- Remove the two screws fixing the brake calliper
to the mounting bracket, then remove the brake
calliper with the pipe from the disc.
- Remove the brake pad retention pin snap ring.
- Remove the brake pad retention pin using a plug.
- Complete the extraction of the protection cover,
the springs and the pads.
N.B.
IF BRAKE CALLIPER REPLACEMENT IS NEEDED, BE-
FORE REMOVING THE CALLIPER CLAMPS TO THE
MOUNTING BRACKET, LOOSEN THE OIL JOINT FITTING.
Refitting
- Insert the brake pads in the calliper.
- Insert the pad fixing pin and the retention screw
being careful to position the terminals of it pointing
towards the bleed screw as shown in the photo.
- Insert the clip on the pad fixing pin
N.B.
FAILURE TO RESPECT THE PAD POSITIONING REQUIRE-
MENTS WITH RESPECT TO THE DIRECTION OF ROTA-
TION COULD COMPROMISE PROPER BRAKE FUNCTION-
ING AND NOISELESSNESS.
Braking system Vespa LX - S 125 3V ie 150 3V ie (2012)
BRAK SYS - 228
