q Remove the fader knobs. (See fig-a)
w Remove the 4 screws which fix the top panel.
(See fig-a)
e Remove the 2 screws which fix the fader panel, and
remove the fader unit from position in mixer.
(See fig-b)
r Carefully remove the multi-cable connector from the
fader unit.
t Remove the fader knob of new fader unit.
y Attach multi-cable connector to new fader unit.
(See fig-c/d)
u Position the new fader unit carefully and secure with
screws.
HOW TO CHANGE THE FADER UNIT

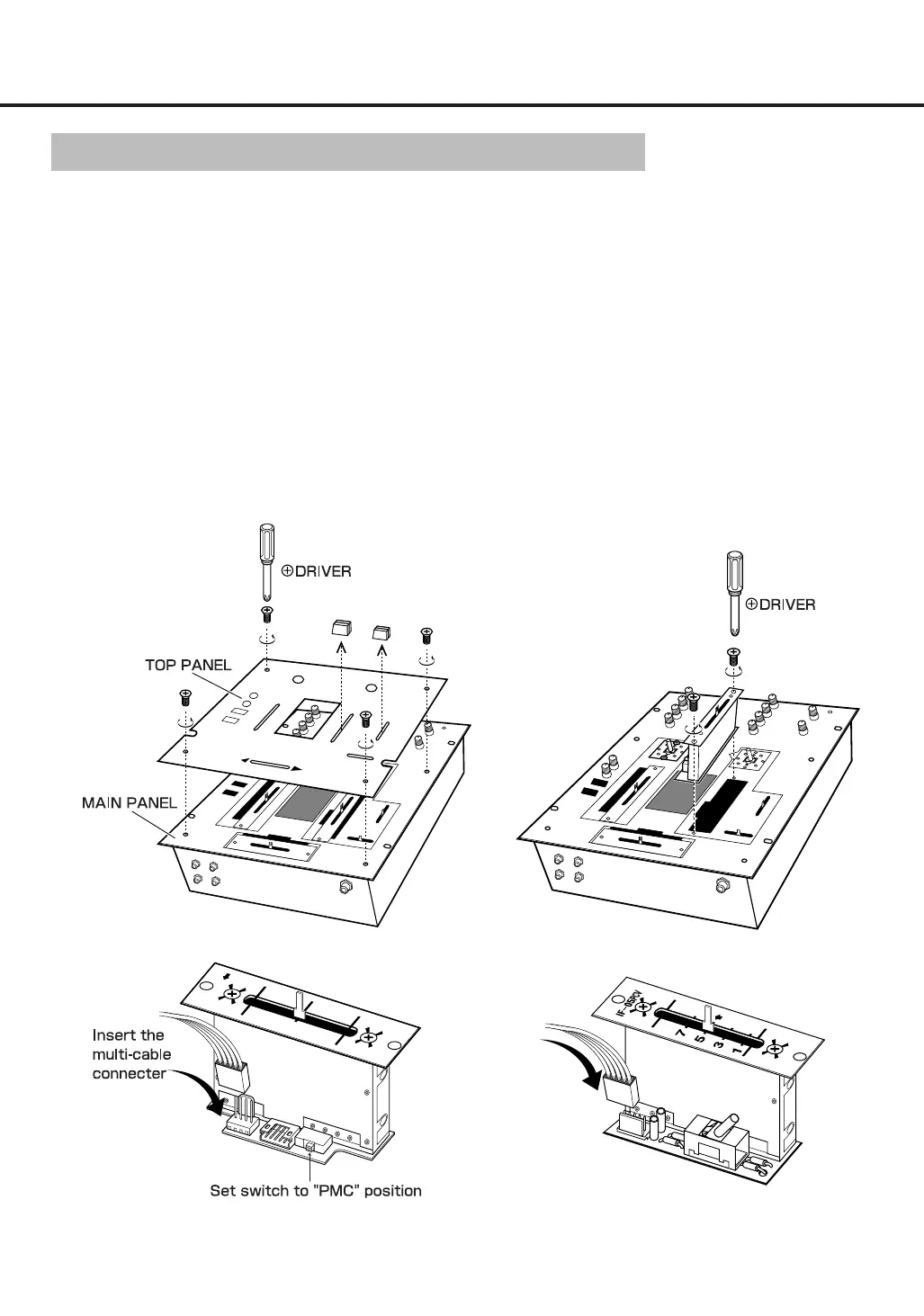

fig-a
fig-b
fig-c
fig-d
CROSSFADERUNIT(CF-PCV) INPUTFADERUNIT(IF-05PCV)
