Vestax VMC-002 User Manual

5

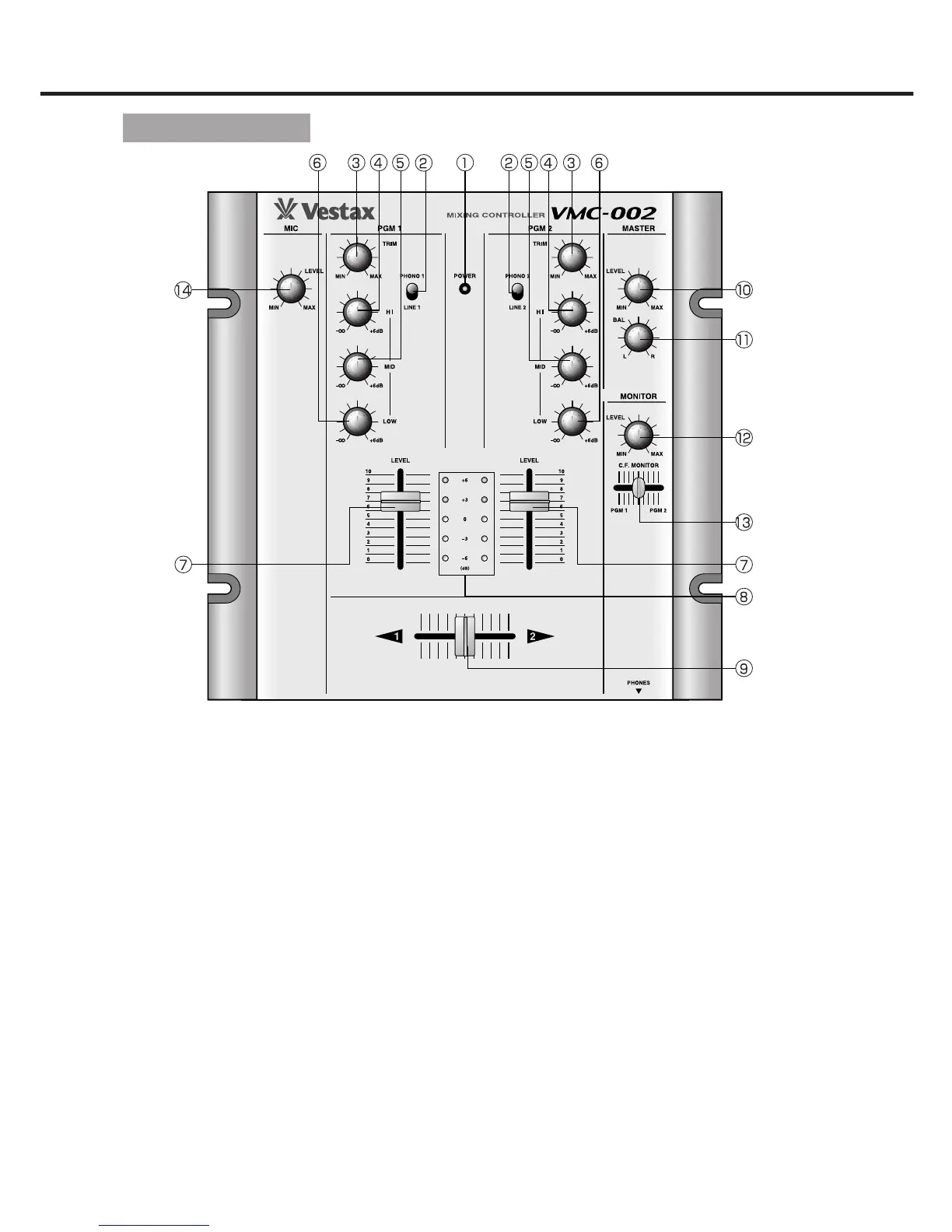

CONTROLS AND FUNCTIONS
TOPPANEL
i INPUT LEVEL METER
The LED level meters indicate the input signal
levelofeachPGMcannel.
o CROSS FADER
When the input level of PGM1 and PGM2 are
properly set, PGM1 will be heard with the
crossfader set to the left side.  PGM2 will be
heardwiththe crossfaderset to theright side.
When the crossfader is set in the center, both
programswillbeheard.Thisisdetachablefader
for the ease of replacement with "CF-R US"
whenitiswornout.
!0 MASTER LEVEL VOLUME
AdjuststhesignalleveloutputsfromLINEOUT@2.
!1
MASTER BALANCE VOLUME
AdjuststhesignalbalanceoftheLtoRsideofthe
outputs.
!2 MONITOR LEVEL VOLUME
Adjuststheheadphonemonitorlevel.
!3 CF MONITOR VOLUME
Crossfader signal to be monitored from each
program.
!4 MIC LEVEL VOLUME
AdjuststheinputleveloftheMICINPUT@3.
q
POWER INDICATOR
LightsupwhenthePOWERSWITCH!7 ison.
w
INPUT SELECTOR
Usedtoselecttheinput(LINEorPHONO)tobe
sent to each PGM channel. The upper most
positionwillselectPHONOinput.Thisselector
switch can also be used to perform for
TRANSFORMERSCRATCH.
e TRIM VOLUME
Adjusts the input level of each channel.  For
optionalacoustic quality,set theINPUT LEVEL
VOLUMEu toapositionof7or8then;adjustthe
TRIM so that a sufficient signal is fed through
thechannelwithoutdistorting.
r
PGM ISOLATOR HI
AdjuststheHIfrequencylevelofeachPGM.
t PGM ISOLATOR MID
AdjuststheMIDfrequencylevelofeachPGM.
yPGM ISOLATOR LOW
AdjuststheLOWfrequencylevelofeachPGM.
u INPUT LEVEL VOLUME
Used to adjust the input level of each PGM
channel.
