-6-

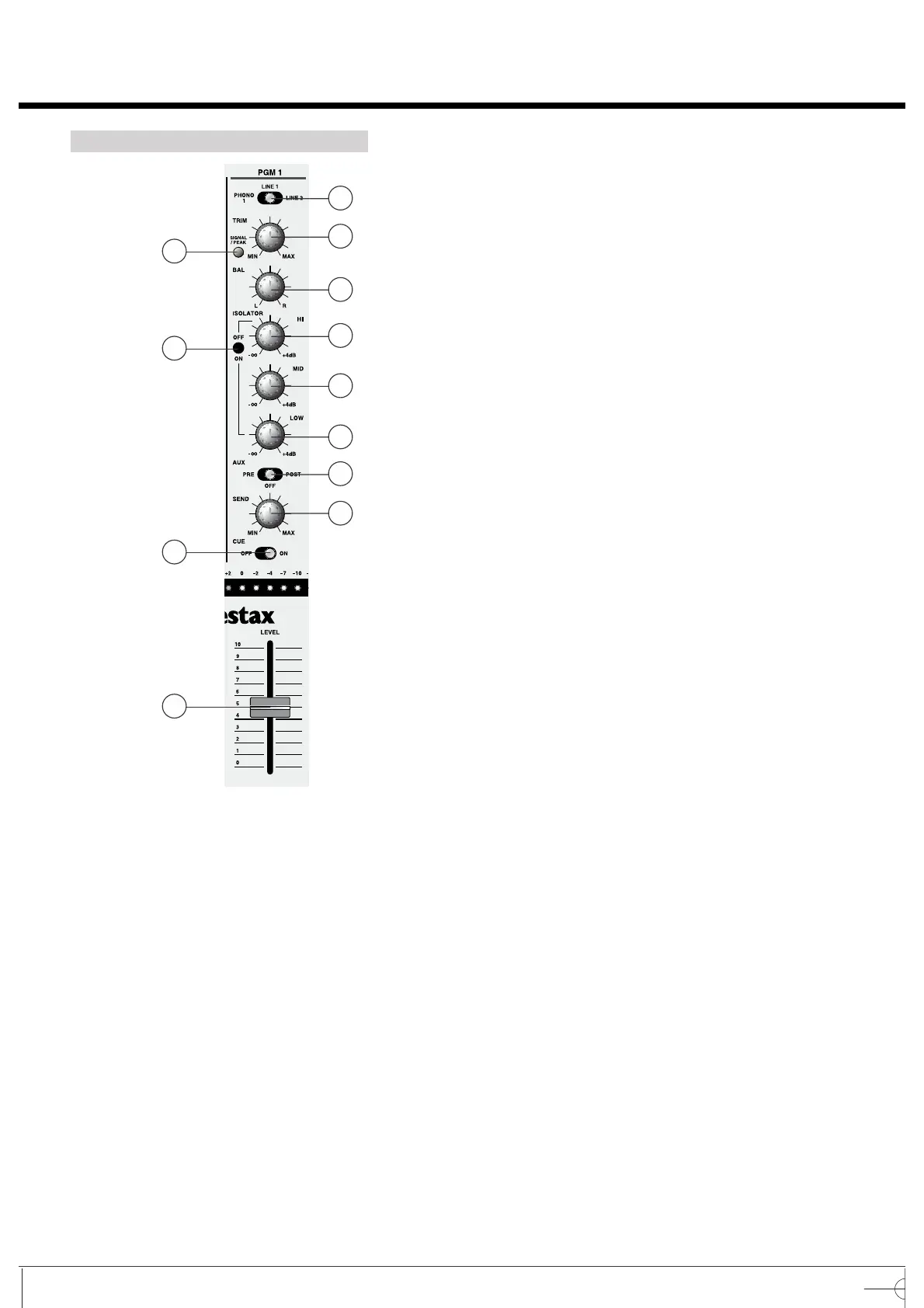

PROGRAM INPUT SECTION
q INPUT SELECTOR
Used to select input (2 line or 1 phono) to be sent
to each PGM channel.
w PGM TRIM
This control is used to adjust the input level
volume for the best possible sound.
When making adjustments to the "TRIM" of an
input, try and ensure that the signals level only
occassionlly goes in to the "RED" range.
e OVERLAOD INDICATOR
Lights in red when input level is over
r PGM BALANCE
Adjusts the stereo balance for each PGM
channel. Can be used for adjusting the
unbalanced stereo image. Clockwise rotation from
center position increases the volume of R over L
channel. A counter clockwise rotation increases
the volume of L channel over R.
t PGM ISOLATOR【HI】
Adjusts the HI frequency level of each PGM
channel.
y PGM ISOLATOR【MID】
Adjusts the MID frequency level of each PGM
channel.
u PGM ISOLATOR【LOW】
Adjusts the LOW frequency level for each PGM
channel.
i ISOLATOR ON/OFF SWITCH
When set to "OFF", a normal signal is
transmitted regardless of the position of any
isolator controls.
o AUX ASSIGN SWITCH
This switch enables the signal from each
program to be sent to AUX send jack. Different
signal routes can be selected this switch to
different positions.
PRE : The signal before the input fader (after
the EQ) will be sent to AUX output.
POST: The signal after the input and crossfader
will be sent to AUX output.
OFF : No signal will be sent to AUX output.
!0 AUX SEND LEVEL
Used to adjust the output level from AUX SEND
JACK. This signal is selected by the effect
switch.
!1
Used to send the signal from each program to
the monitor section for headphone monitoring.
!2 INPUT FADER
Used to adjust the Input level of each program.
Usually set to 7-8 positions. This is a detachable
fader for ease of replacement, replace with IF-
180 when it is worn out. If you wish to use the
fader unit with slide stroke distance of 45mm,
you can replace with the Vestax "IF-37PCV".
See "HOW TO CHANGE THE FADER UNIT".
!3 CROSS FADER
When the input level of PGM1 and PGM2 are
properly set, PGM1 will be heard with the
crossfader set to the left side. PGM2 will be
heard with the cross fader set to the right side.
When the crossfader is set in the center, both
programs will be heard. This is detachable fader
for the ease of replacement with "CF-PCV" or
"CF-R" when it is worn out.
CUE ON/OFF SWITCH
