Vestil LLW - Page 16

Table of Contents Rev. 10/2/2020 LLW MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 16 of 21
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1 42-514-006 WELDMENT, FRAME 1 13.4 40307
HEX NUT, CLASS 8, ZINC
PLATED, M8-1.25
1
2 33-513-093 WELDMENT, DECK 1 14 21-017-155 BAR, RETAINER 1
3 33018
USS FLAT WASHER, Z PLATED, Ø
3/4"
4 15 33622
SPLIT LOCK WASHER, CARBON
STEEL, MEDIUM
ZINC FINISH, 3/8"
5
4 68015
EXTERNAL RETAINING
RING,PHOSPHATE, 3/4"
2 16 11107
HEX BOLT, GRADE A, ZINC
FINISH, 3/8"-16 x 1-1/4"
5
5 21-027-003 ROLLER, GUIDE 8 17 36106
HEX NUT, GRADE A, ZINC
PLATED, 3/8-16
5
6 21-112-002 PIN. ROLLER 4 18 27560
#10-32 x 3/4 LG SLOTTED
MACHINE SCREW
4
7 16-132-009 PP-4/1.25-W 2 19 33074
SAE FLAT WASHER, Z-PLATED,
3/16" (#10)
4
8 11113
HEX BOLT, GRADE A, PLAIN
FINISH, 3/8"-16 X 2-1/2"
2 20 33614 LOCK WASHER, Z-PLATED, #10 4
9 37024
NYLON INSERT LOCK NUT, GRADE
2, ZINC FINISH,
3/8"-16
2 21 36030 10-32 HEX NUT 4
10 16-132-011 CASTER SWIVEL, 4X2 4 22
21-042-002-
001
HAND WINCH, ONE PIECE
STRAIGHT HANDLE GRIP
1
11 16-132-200 CASTER, PP-8/2-W, RED 2 23 21-112-003
PIN, Ø1/2 X 1-15/16 LG
RETAINING CLEVIS
1
12 99-612-001
PIN, BULLDOG BOLT AND NUT
ASSEMBLY
4 24 21-145-013
SPECIALTY HARDWARE,
THIMBLE
1
13 21-001-132 FINAL ASSEMBLY W/O SHIPPING 1 25 21-527-001
SUB-ASSEMBLY, PULLEY
W/BUSHING
1
13.1
21-145-
001
SPECIALTY HARDWARE, PUSH-
PULL CLAMP
1 26 21-145-014
SPECIALTY HARDWARE, Ø3/16"
AIR CRAFT CABLE
1
13.2
21-537-
006
WELDMENT, FLOOR LOCK 1 27 65107
COTTER PIN, ZINC FINISH,
Ø5/32" X 2"
1
13.3
14-037-
005
RUBBER STOP CRUTCH TIP 1 28 99-145-067
COMPRESSION SLEEVE Ø3/16"
X 1" LG
1

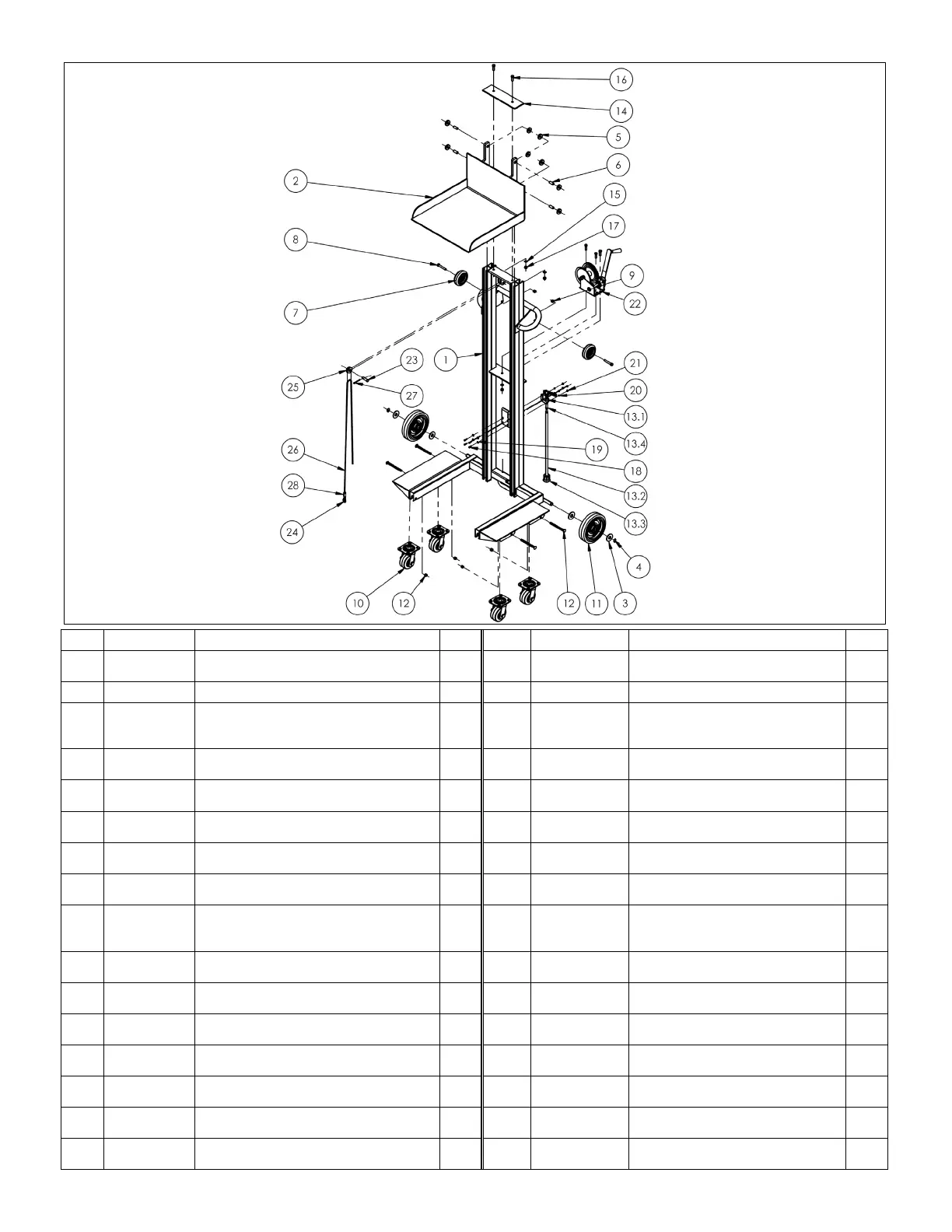

Exploded View & Bill of Materials
LLPW-500-4SFL
42-006-001
