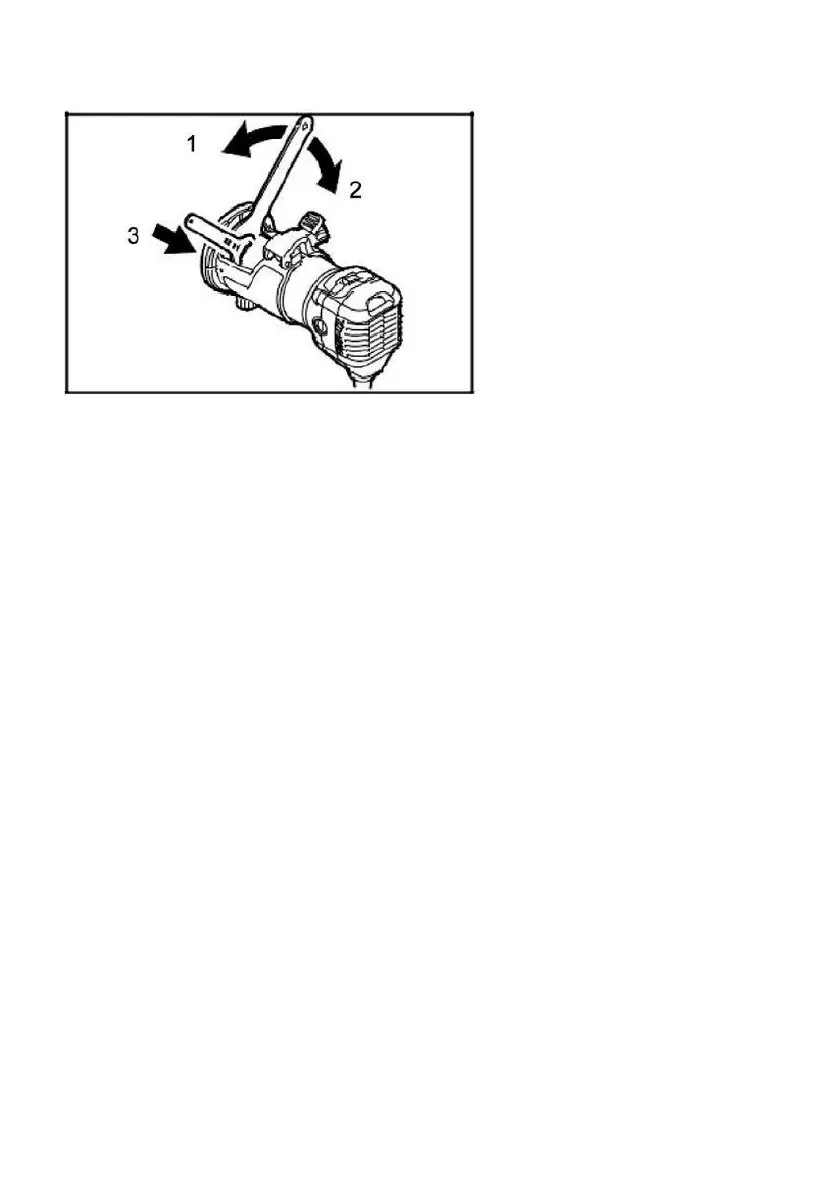

1. Tighten
2. Loosen
3. Hold
Operation with straight guide
The straight guide is effectively used for straight cuts when chamfering or
grooving. Attach the guide plate to the straight guide with the bolt and the
wing nut. Attach the straight guide with the clamp screw (A). Loosen the
wing nut on the straight guide and adjust the distance between the bit and
the straight guide. At the desired distance, tighten the wing nut securely.
Circular work
The straight guide is effectively used for straight cuts when chamfering or
grooving. Attach the guide plate to the straight guide with the bolt and the
wing nut. Attach the straight guide with the clamp screw (A). Loosen the
wing nut on the straight guide and adjust the distance between the bit and
the straight guide. At the desired distance, tighten the wing nut securely.
