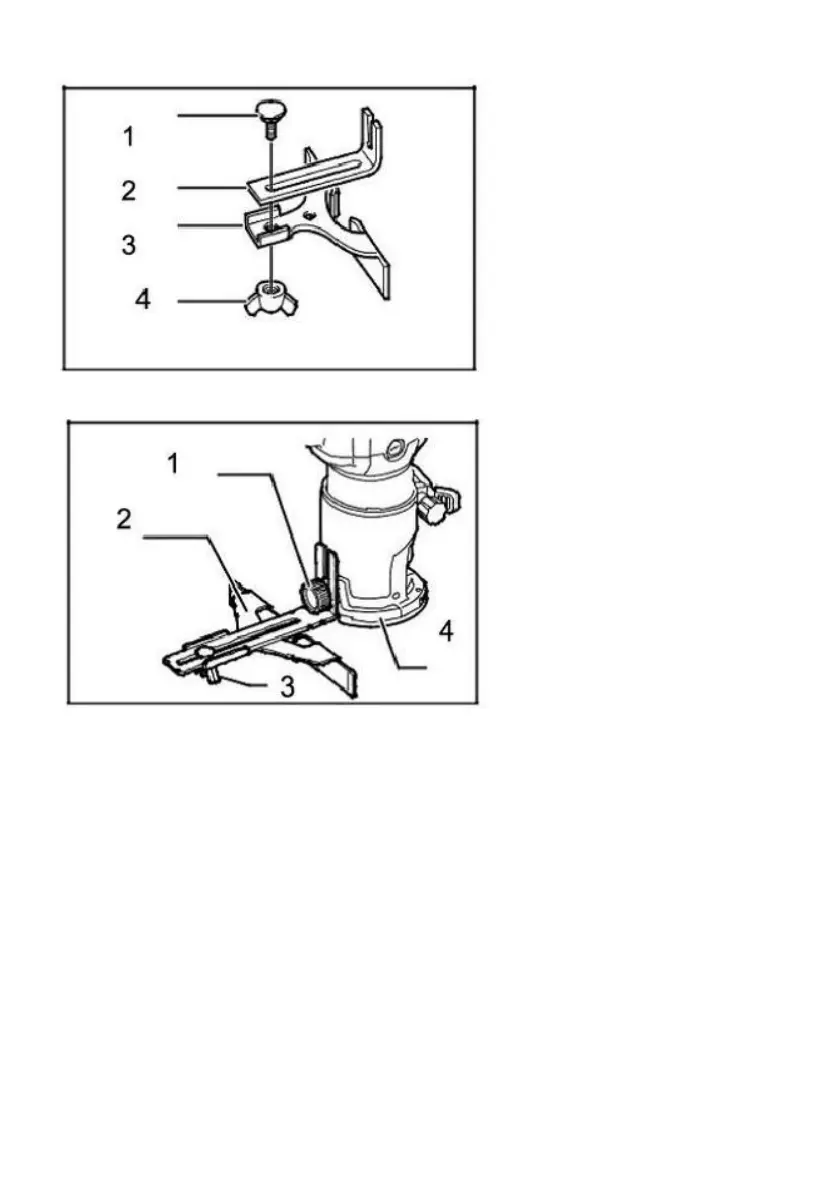

1.Bolt
2.Guide plate
3.Straight guide
4.Wing nut
1.Clamp screw (A)
2.Straight guide
3.Wing nut
4.Base
Circular work
Circular work may be accomplished if you assemble the straight guide and
guide plate as shown in the figures. Min and Max radius of circles to be cut
(distance between the center of circle and the center of bit) are as follows:
Min: 70mm(2-3/4B)
Max: 221mm (8-11/16")
