accessories). Insert the guide bracket into the hole on the cut-in base and
tighten the butterfly bolt. To adjust the distance between the cutter head
and the linear guide, loosen the butterfly nut. After the required distance is
reached, tighten the butterfly nut to fix the linear guide in place.

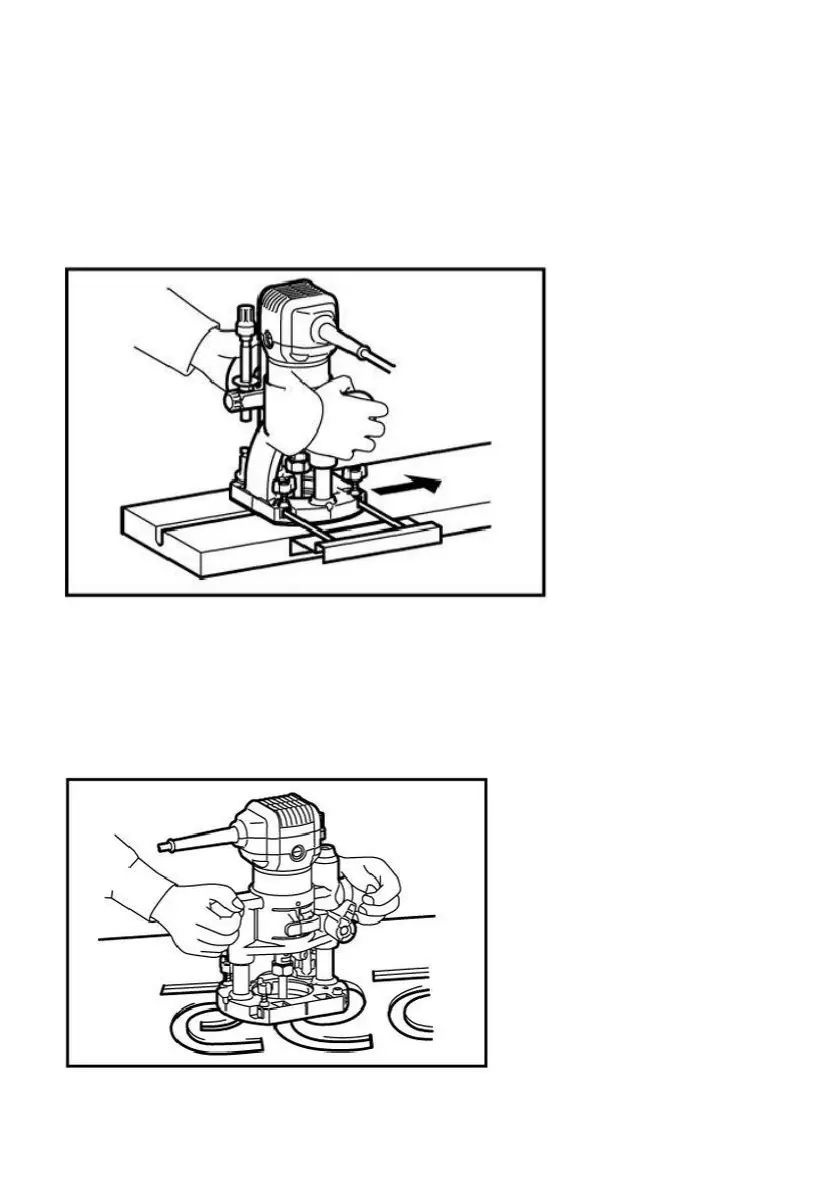

Linear guide (optional accessories)
When oblique planing or slotting, the use of linear guide plate for linear
cutting is particularly effective.
Sample gauge guide plate (optional accessories)
The sample gauge guide has a sleeve for the cutter head to pass through,
allowing the use of tools with sample gauge mode.When installing the
