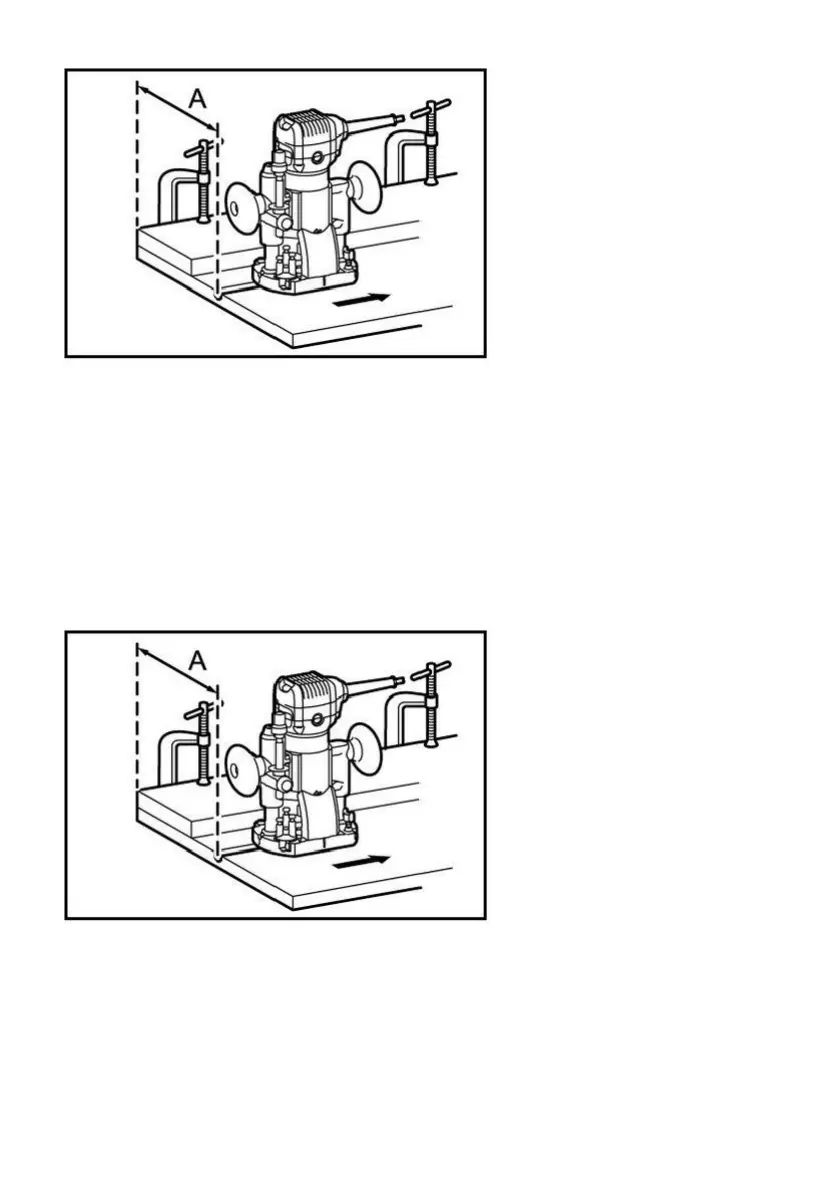

If the distance(a)between one side of the workpiece and the cutting
position is too wide for the linear guide,or if one side of the workpiece is not
straight,the linear guide cannot be used.In this case,a straight guide plate
can be firmly clamped to the workpiece and held against the base of the
engraving machine as a guide plate.Feed the tool in the direction of the
arrow.
1.Cutter head
2.Pedestal
3.Sample gauge
4.workpiece
5.Distance(X)
6.Outer diameter of sample
gauge guide plate
7.Sample gauge guide
Notes: The workpiece will be cut in a slightly different size from the sample
gauge.Leave a certain distance(x)between the cutter head and the outside
of the sample gauge guide plate.The distance(x)can be calculated using
the following equation.Distance(x)=(outer diameter of sample gauge guide
plate-cutter head diameter)12
