VEVOR BATHROOM MASTER - Page 11

- 10 -

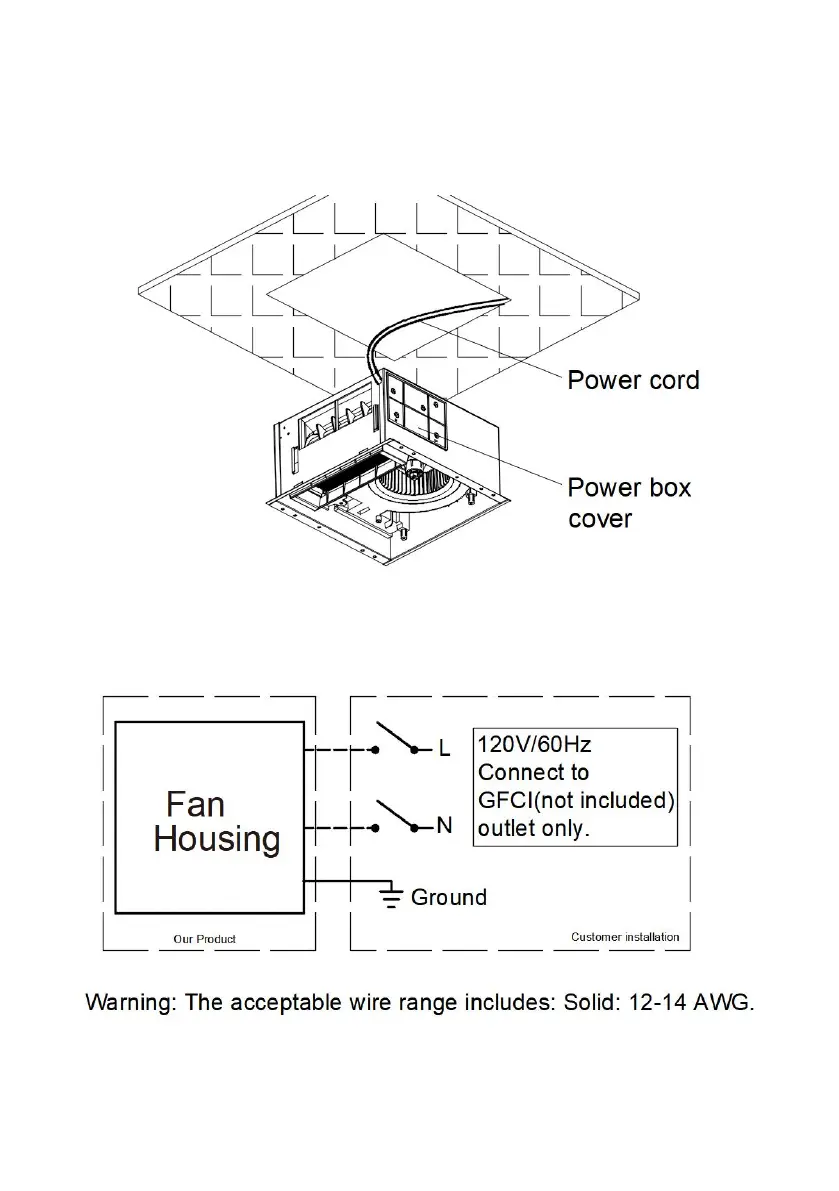

4. Loosen the screws and remove the power box cover, pass the power
cord through the ceiling. Connect the power cord according to the
wiring diagram, and then lock the power box cover with screws. (See
the Fig.3.)
WIRING DIAGRAM:
Fig.3.
