VEVOR WZ-A301 User Manual

- 4 -

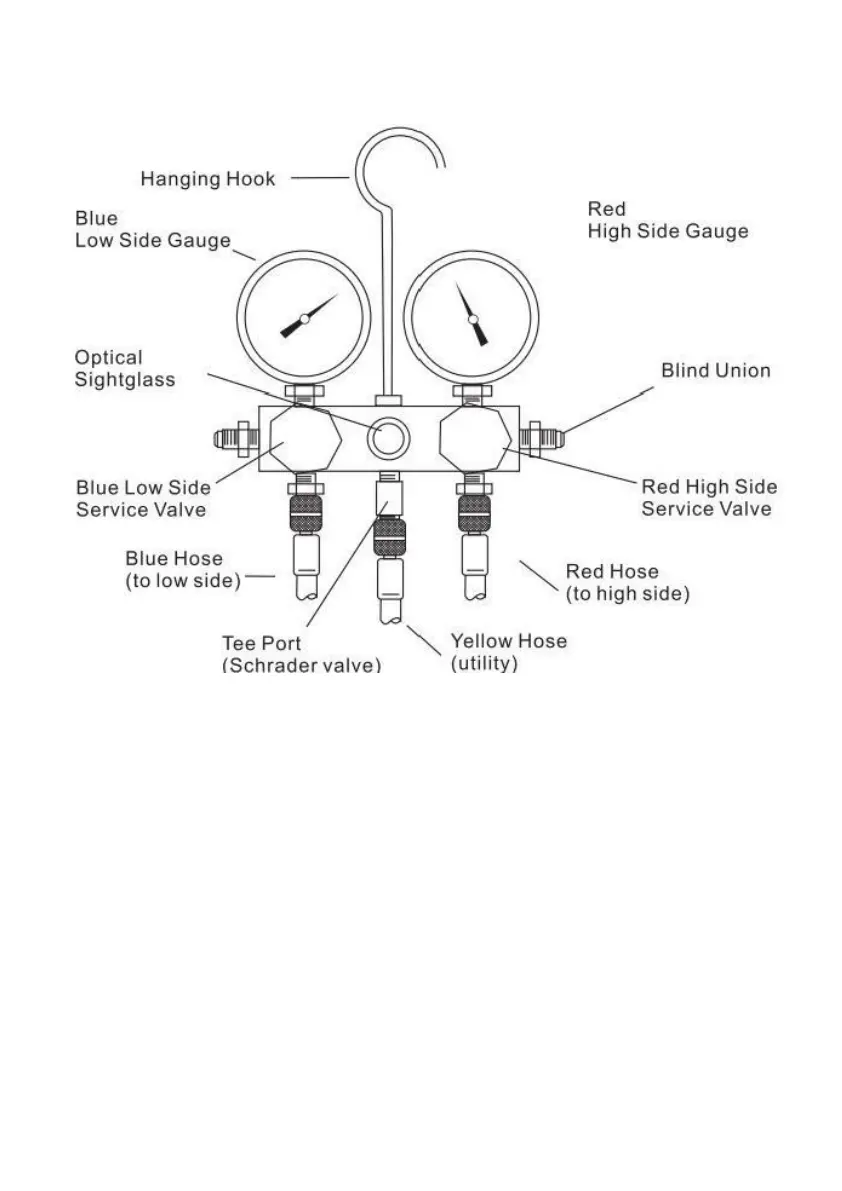

Product Structure Diagram
Instruction of use
Schematic of gauge manifold installation on external drive compressor
with service valves. A-Manifold Suction Valve. B-Manifold Discharge Valve.
C-Compressor Discharge Service Valve (DSV). D-Compressor Suction
Service Valve(SSV). E-Servide Opening. 1-Purging. 2-Charging or Adding
Oil. 3-Bypassing. 4-Gauge Reading. 5-Both manifold valves are turned all
the way in. System is pumping vapor and both low and high-side pressure
are being read.
