Technical Reference Booklet
PIN SIGNAL DESCRIPTION
1 SOUT-L Audio left surrounding output
2 SOUT-R Audio right surrounding output
3 GND Ground
4 GND Ground
5 CET-OUT Audio center output
6 LFE-OUT Audio bass output
7 GND Ground
8 SPDIF S/PDIF input
9 (No Pin) Key
10 SPDFO S/PDIF output
CN6-CN6-
CN6-CN6-
CN6-
SS
SS
S
-Brack-Brack
-Brack-Brack
-Brack
etet
etet
et

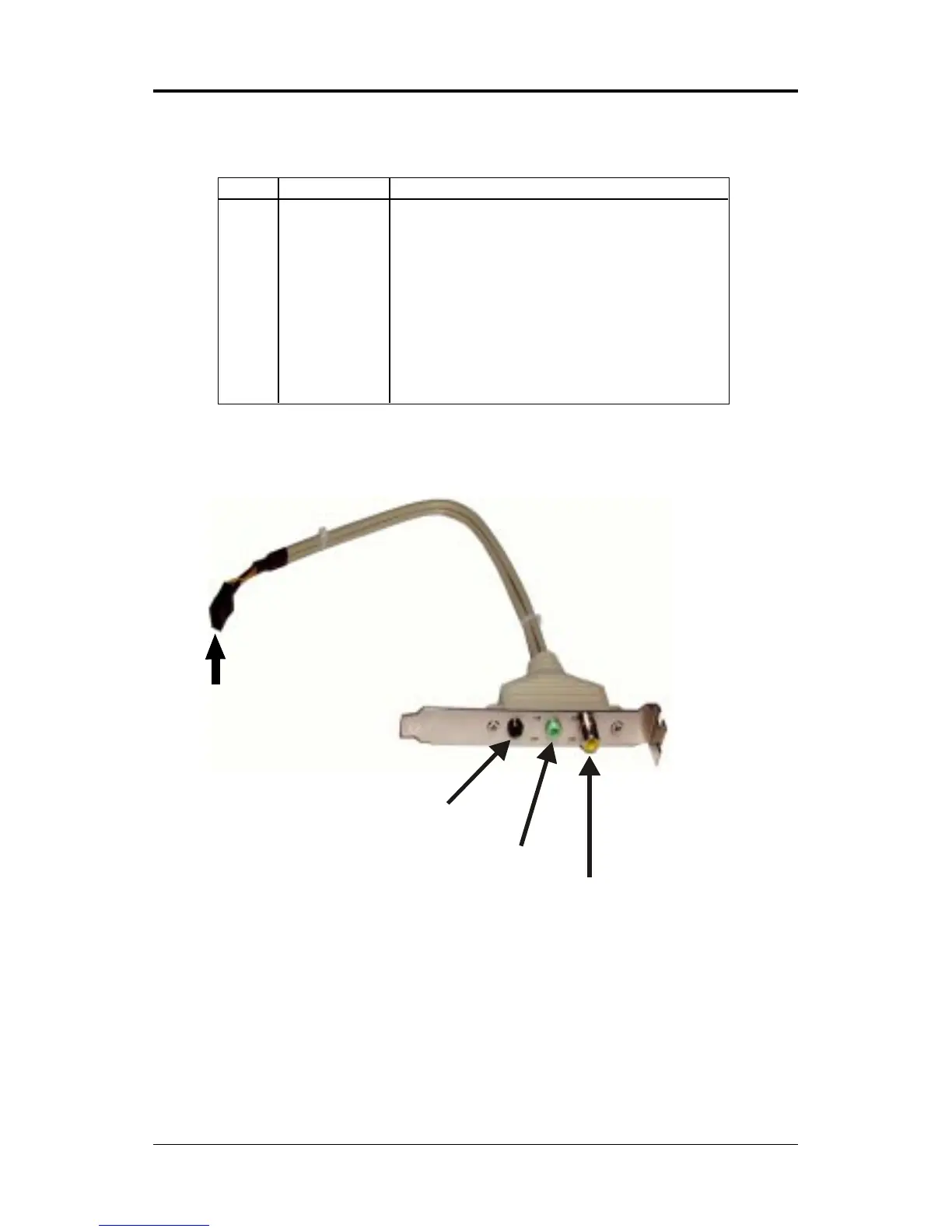

S-Bracket Cable (optional)S-Bracket Cable (optional)
S-Bracket Cable (optional)S-Bracket Cable (optional)
S-Bracket Cable (optional)
Connect to CN6
SPDIF jack (coaxial)
Rear Speaker Out
Center and Subwoofer Out
