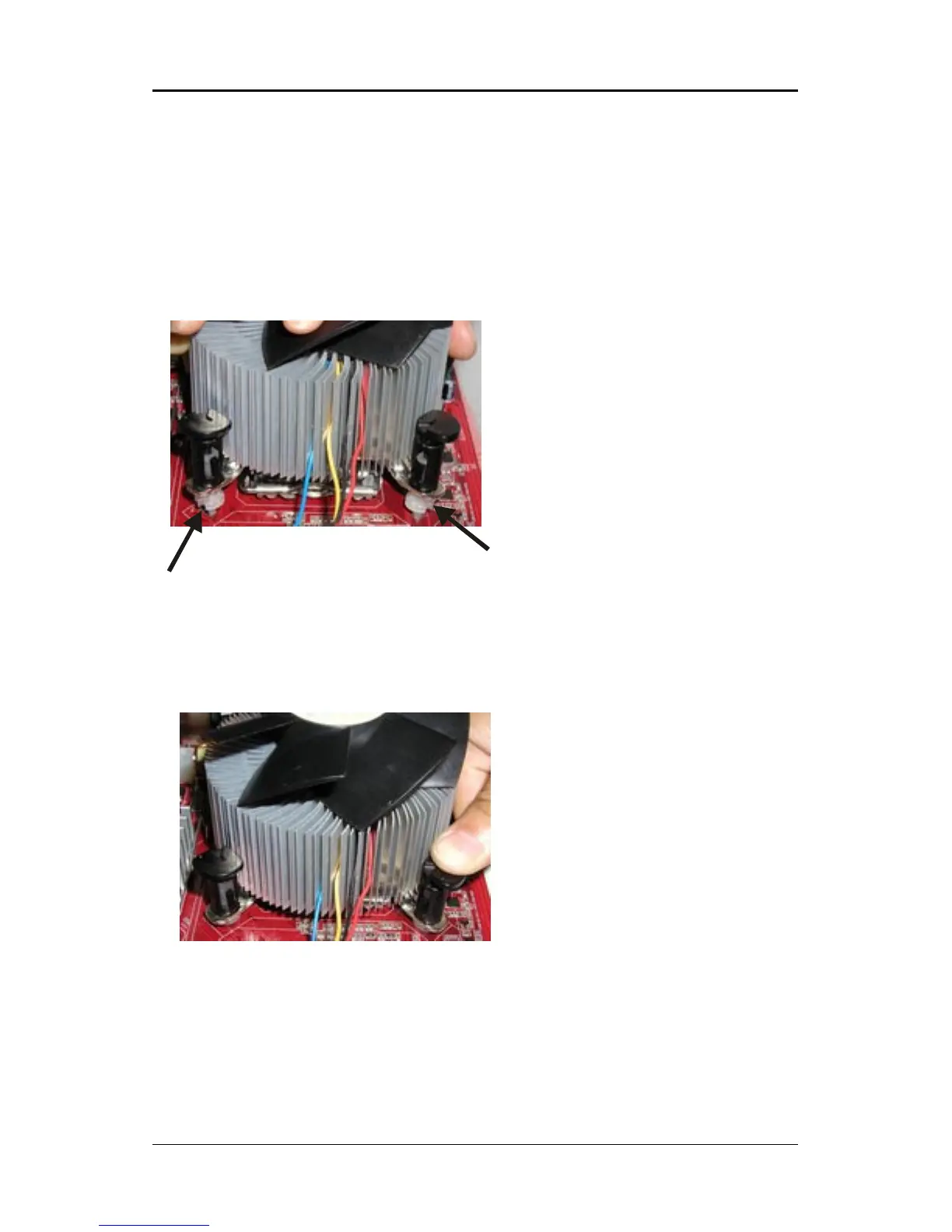

6. It’s recommended that the CPU heatsink should be an approval by Intel
corporation design for Prescott CPU. Choose the orientation of the thermal
solution for optimal wire routing to the fan header on the motherboard, Position
the thermal solution over the processor. Ensure the fan wiring is positioned to
prevent wire pinching between the heatsink and the processor, or between the
heatsink clip and the socket.
7. Align the fastener tips with the
motherboard hole pattern, insert the
fastener tips into the holes, guilding
the wires to avoid pinching. the
fasteners will slide through the
motherboard holes with no insertion
force.
8.Engage the fasteners caps. Apply
thumb pressure to the top of each
of the 4 fastener caps, there is no
specific order of engagement, you
will hear a “click” upon full
engagement.
