Falcon Service Manual
___________________________________
24

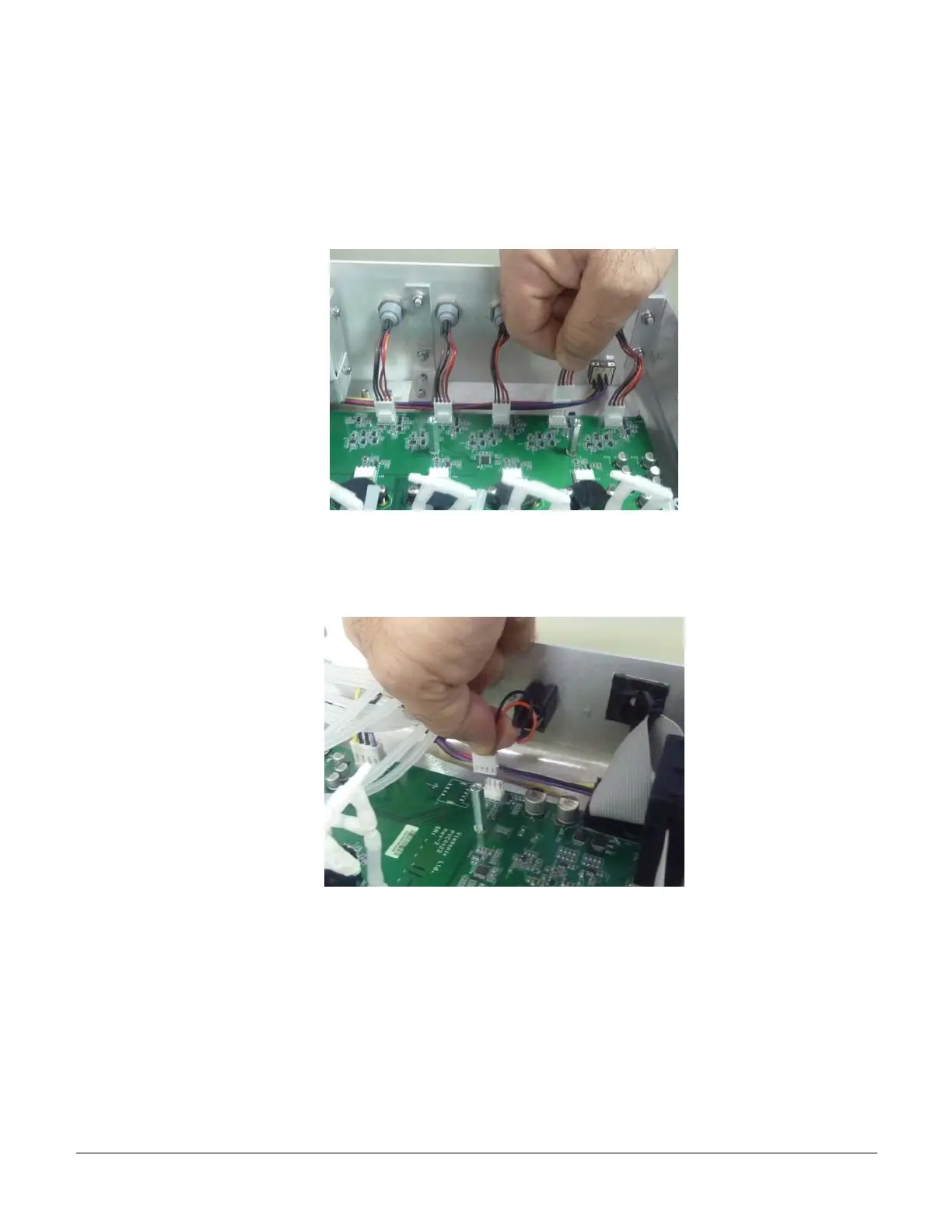

a) There are 5 internal PPG cables (PVC0057) for the Falcon/Pro, and 4 for the Falcon/Quad and
Falcon/ABI+. The cables are located on the internal side of the PPG connectors (along the front
panel). Disconnect each of these cables by pulling on the internal cable connector as shown
below.
b) There is one internal temperature cable (PVC0060) located across the temperature port on the
right side of the Falcon board. Disconnect this cable by pulling on the internal cable connector as
shown below.
c) The power cable connector is located on the back side of the Falcon board. Disconnect this
cable by pulling on the internal cable connector as shown below.
VS0152, rev 1.3 Page
