VIASONIX FALCON PRO - Release the Falcon Board

Falcon Service Manual
___________________________________
27

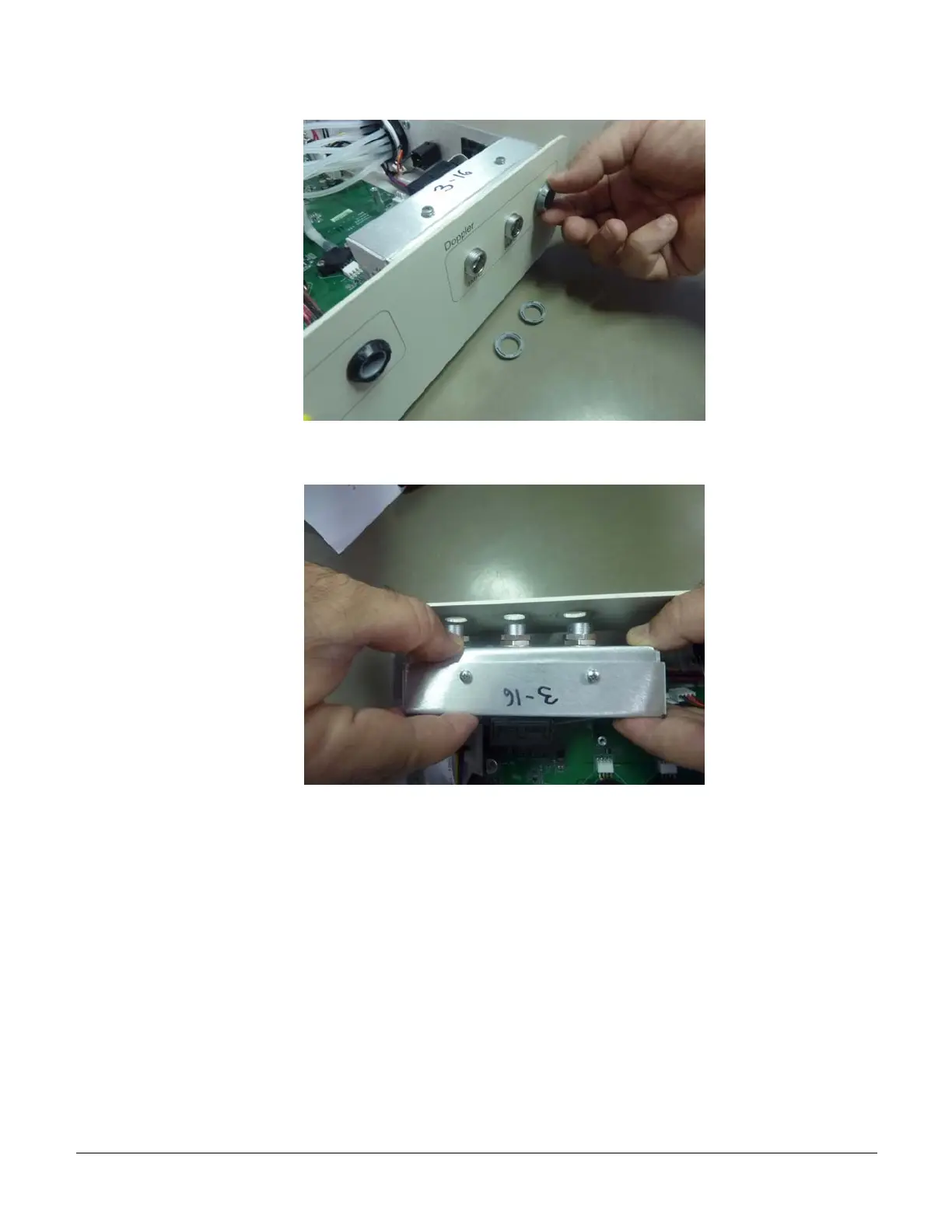

e) Carefully take out the CW box as shown below and place in a safe location.
5.8 Release the Falcon Board
a) There are 10 spacers that hold the Falcon board to the bottom Falcon casing. Release these 10
spacers with a special screw driver as shown below.
VS0152, rev 1.3 Page
