Falcon Service Manual
___________________________________
26

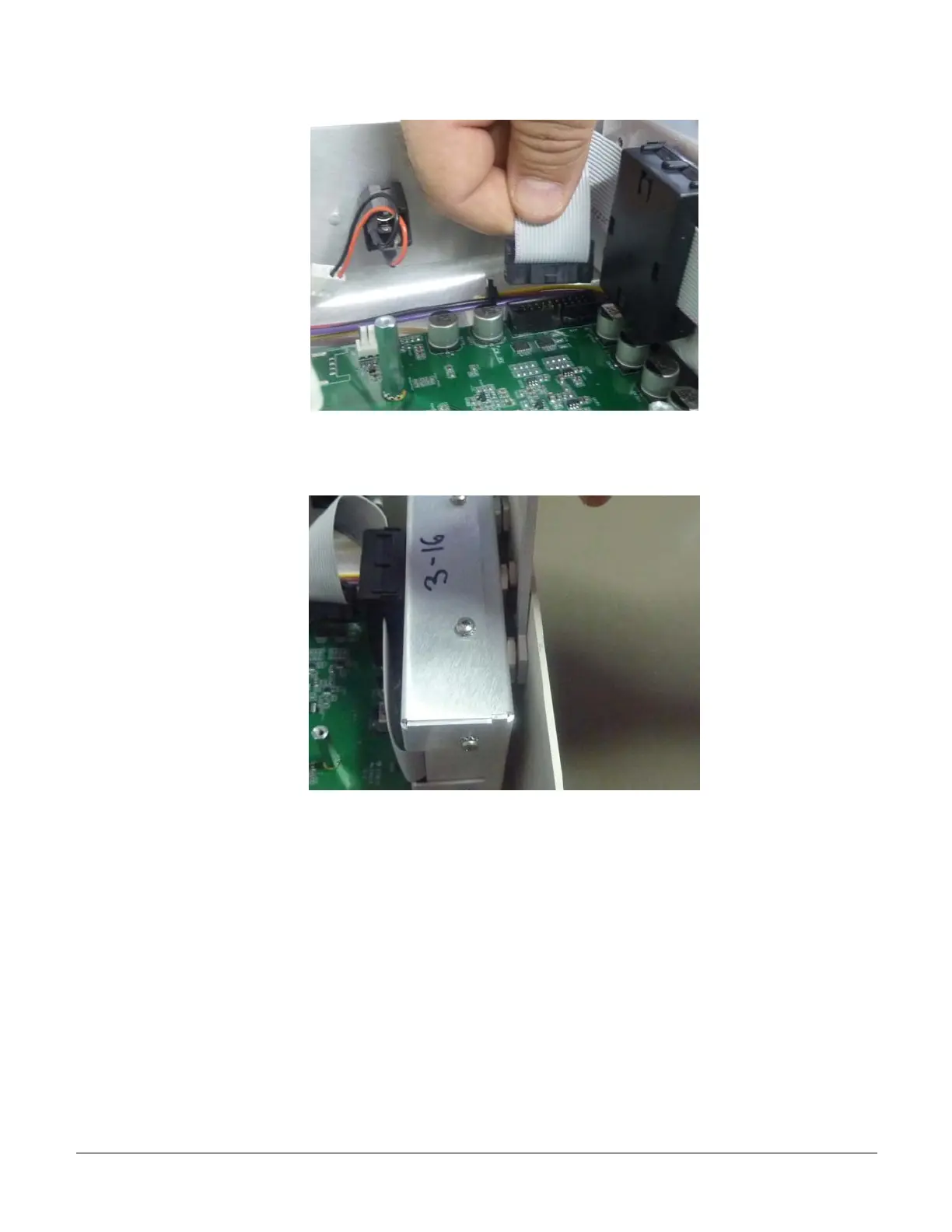

c) The CW Doppler box is connected to the front panel with 2 nuts. With the special tool
PVC0105 release from inside the nut that is closer to the panel as shown below.
d) Lift a little the CW Doppler box so it will be parallel next to the front panel, and then release
the 3 gray rings that are located on the fron panel for each of the Doppler probes (by unscrewing
the rings).
VS0152, rev 1.3 Page
