Vibration Research VR9500 User Manual

www.VibrationResearch.com • 3
Setting up the Hardware

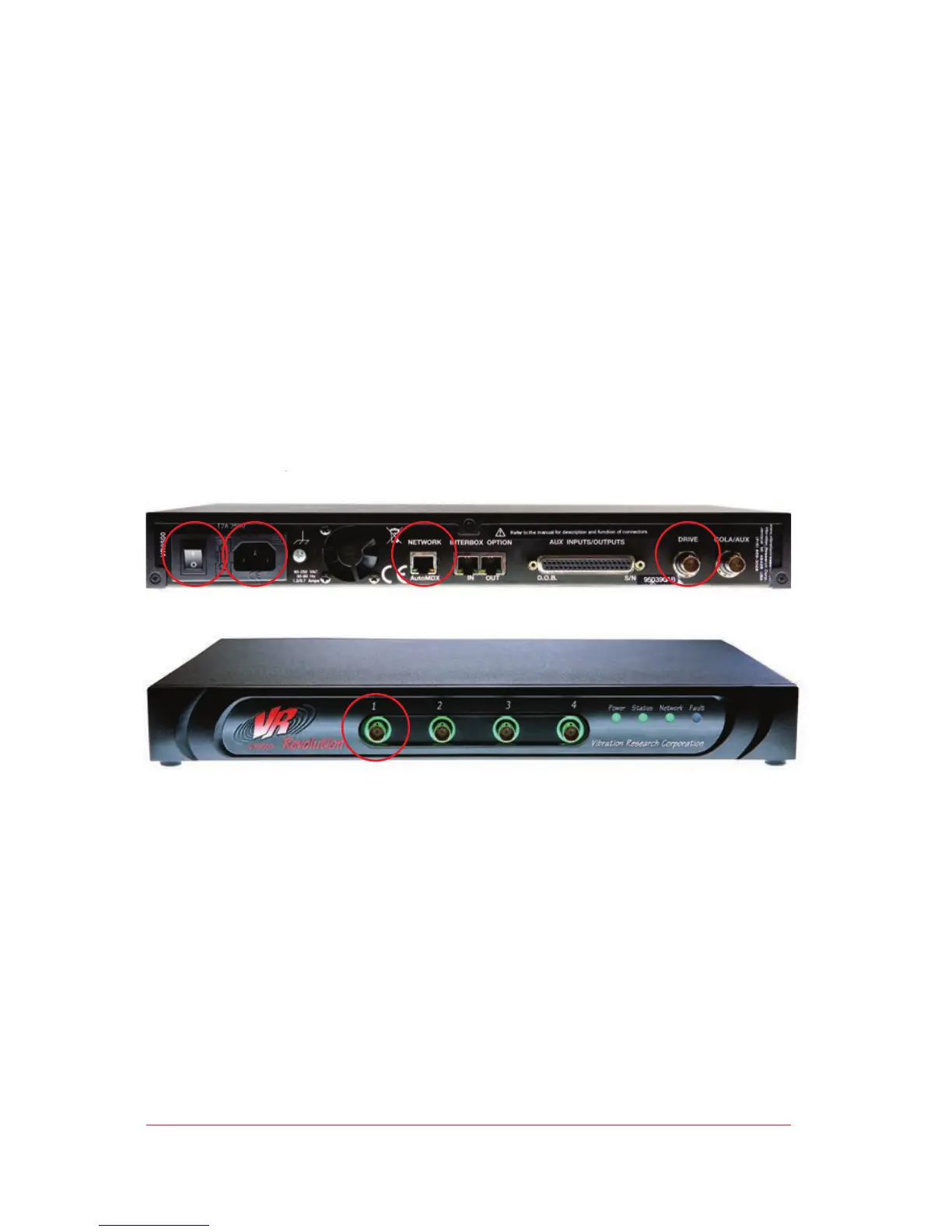

Connecting the VR9500
1. Set up the computer in the conventional configuration with
power cables, mouse, keyboard, and monitor
2. Connect the VR9500 network port to the dedicated network card in
the computer using the included orange straight cable
3. Connect the power cord to the VR9500. The power input will
automatically switch for voltage 90 - 250VAC and 50/60 Hertz.
4. Connect the shaker amplifier’s input to the Drive output connector on
the rear of the VR9500
5. Connect an accelerometer to channel 1 of the VR9500. Other
accelerometers can be connected to channels 2, 3, and 4
6. Turn on the power to the controller
Turn on the power to the controller
3 2 4
5
6
