2 | PIR Ready VT7200 Series-Installation Guide
INSTALLATION
Remove the security screw on the bottom of
Terminal Equipment Controller cover.

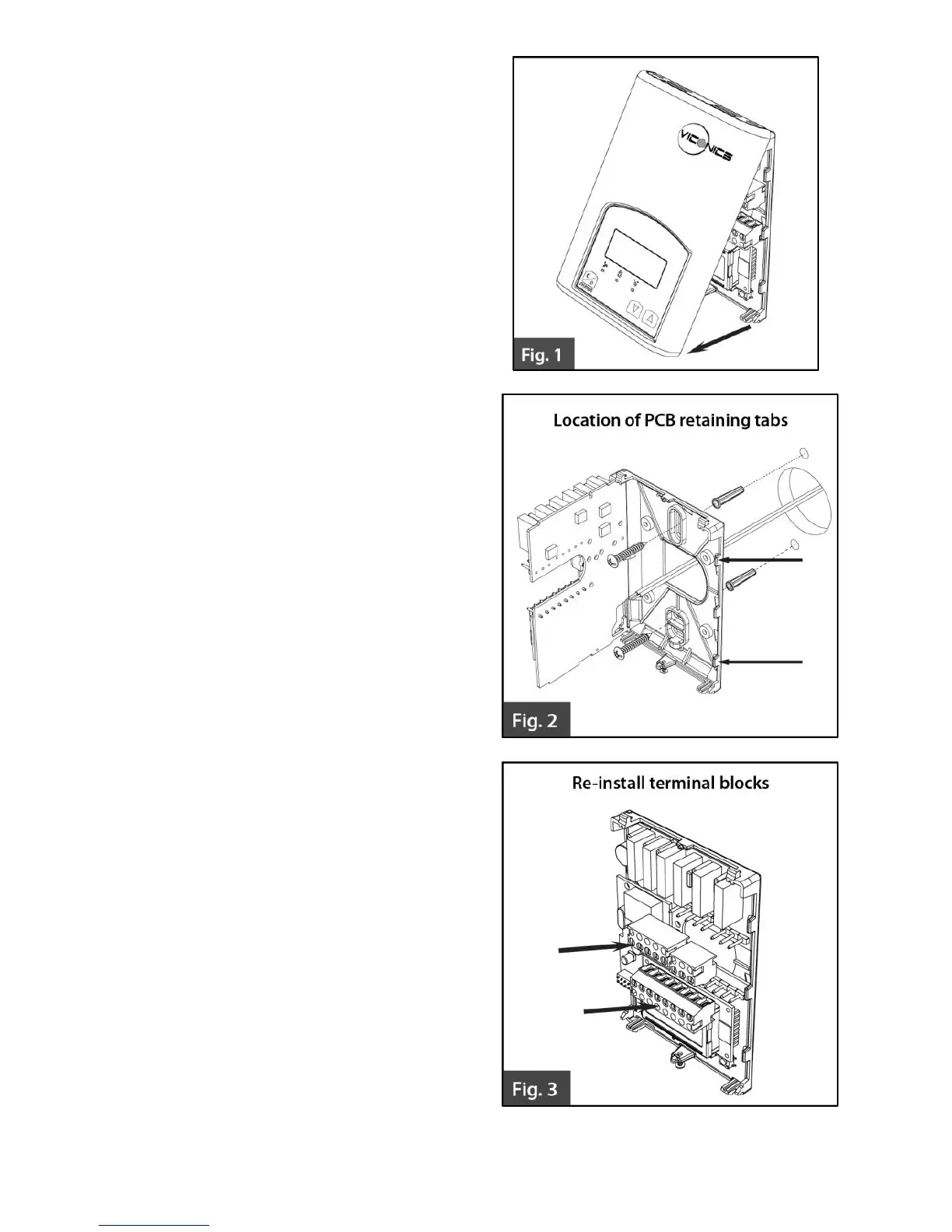

 Open unit by pulling on the bottom side
of Terminal Equipment Controller (fig.
1).
 Remove wiring terminals from sticker.
 Please read the FCC ID and IC label
installed in the cover upon removal of
cover for the wireless products.
Location
1. Should not be installed on an outside
wall.
2. Must be installed away from any direct
heat source.
3. Should not be installed near an air
discharge grill.
4. Should not be affected by direct sun
radiation.
5. Nothing should restrict vertical air
circulation to the Terminal
Equipment Controller.
Installation
1. Swing open the Terminal Equipment
Controller PCB to the left by
pressing the PCB locking tabs (fig.
2).
2. Pull out cables 6” out from the wall.
3. Wall surface must be flat and clean.
4. Insert cable in the central hole of the
base.
5. Align the base and mark the location
of the two mounting holes on the
wall. Install proper side of base up.
6. Install anchors in the wall.
7. Insert screws in mounting holes on
each side of the base (fig. 2).
8. Gently swing back the circuit board
on the base and push on it until the
tabs lock it.
9. Strip each wire 1/4 inch from end.
10. Insert each wire according to wiring
diagram.
11. Gently push excess wiring back into
hole (fig. 3).
12. Re-Install wiring terminals in their
correct locations (fig. 3).
