Frost ON
Indicates that the heating is energized by the low limit frost protection
room temperature setpoint 5.6 °C ( 42 °F )
SetClock
Indicates that the clock needs to be reset. There has been a power failure
which has lasted longer than 6 hours
Service
Indicates that there is a service alarm as per one of the configurable digital
input ( DI1 or DI2 )
Filter
Indicates that the filters are dirty as per one of the configurable digital input
( DI1 or DI2 )
Fan lock
Indicates that the heating and cooling action are locked out due to a
defective fan operation

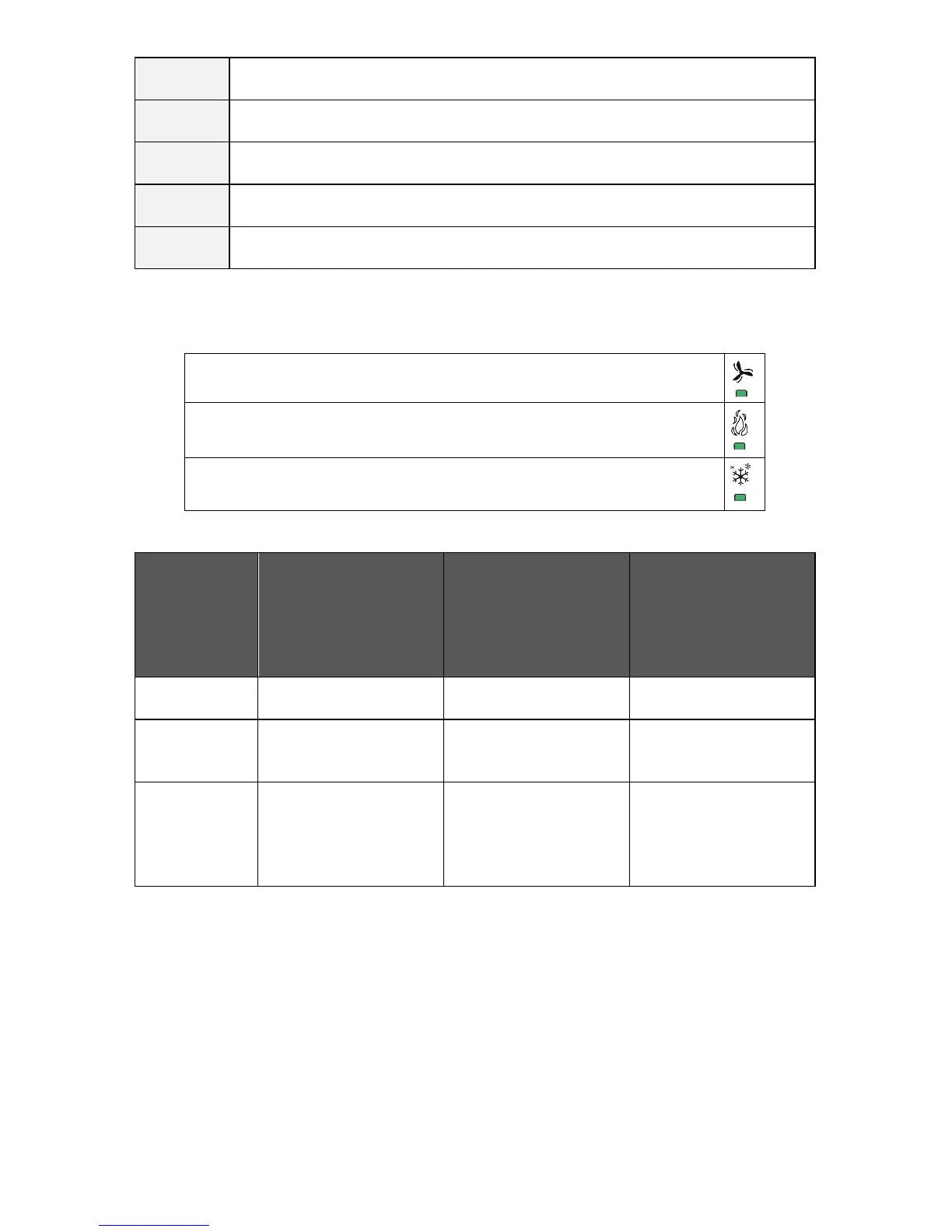

Three status LEDs on the Room Controller cover are used to indicate the status of the
fan, a call for heat, or a call for cooling.
When any of the fan is ON, the FAN LED will illuminate
When heating is ON, the HEAT LED will illuminate
When cooling is ON, the COOL LED will illuminate
LED
OPERATION
HEATPUMP
MODELS VT76XXH
MULTISTAGE AND
SINGLE STAGE
MODELS
VT7600A, VT7652A,
VT7600B &
VT7652B
MULTISTAGE
ECONOMIZER
MODELS
VT7605B &
VT7656B
Fan LED on
When G Fan terminal
operates
When G Fan terminal
operates
When G Fan terminal
operates
Heating LED
on
When Y1 and / or W1
terminal(s) operate in
heating mode
When W1 terminal
operate in heating
mode
When W1 terminal
operate in heating
mode
Cooling LED
on
When Y1 terminal
operate in cooling
mode
When Y1 terminal
operate in cooling
mode
When Y1 terminal
operate in cooling
mode and or
economizer output is
in function
