Victa 160 cc - Chassis Assembly

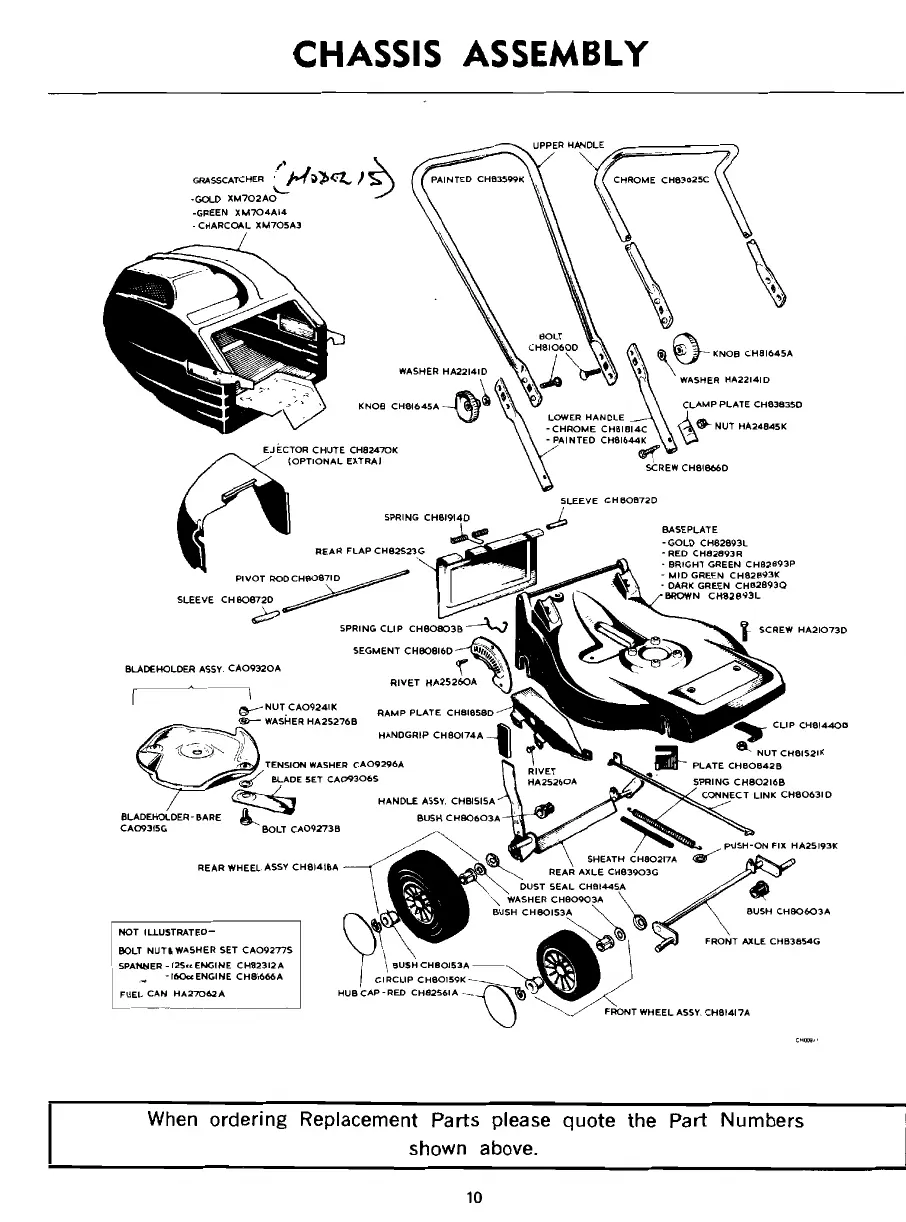

CHASSIS ASSEMBLY
" ~
GRASSCATCHER ~'iI'1>t::Z.. J ~
-GOLD XM702AQ
-GREEN XM704AI4
- CHARCOAL XM705A3
BLADEHOLOER ASSY. CA09320A
~~NUrCA0924IK
(§)-- WASHER HA2S276B
BLADEHOLOER - BARE
CA09315G
NOT ILLUSTRATED-
BOLT NUTI WASHER SET CA09277S
SPAKblER - r2S~cENGINE CH82312A
• r60ccENGINE CH81666A
FUEL CAN HA27062A
\ U- KNOB CHBI645A
WASHER HA22141D
BASEPLATE
- GOLD CH82893l
- RED C H82893 R
• BRIGHT GREEN CH92993P
• MID GREEN CH825931(
• DARI( GREEN CHB2893Q
BROWN CH8289)L
SCREW HA21073D
BUSH CHB0603A
\
FRONT AXLE CHB3854G
When ordering Replacement Parts please quote the Part Numbers
shown above.
10
