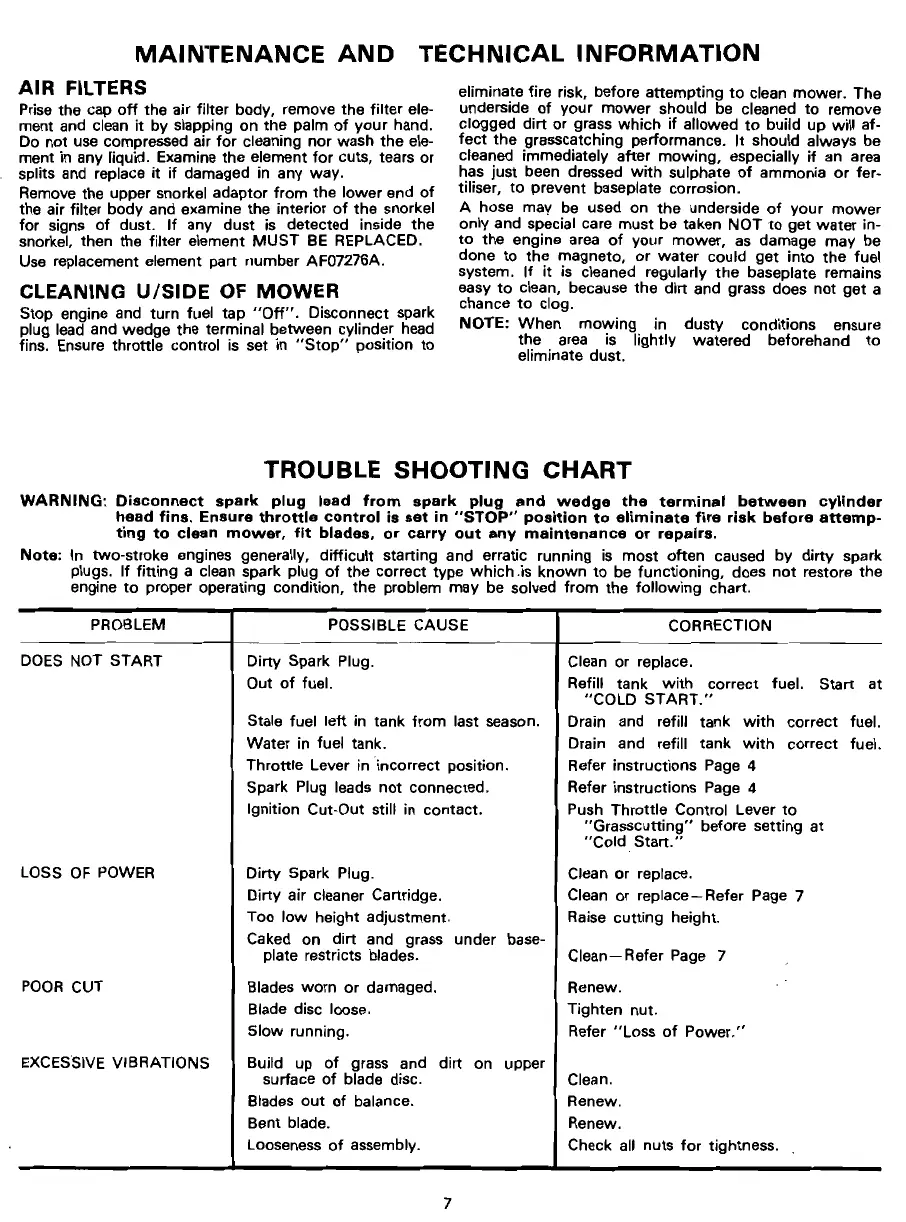

MAINTENANCE
AND
TECHNICAL
INFORMATION
AIR FILTERS
Prise the cap
off
the air filter body, remove the filter ele-
ment and clean
it
by slapping
on
the palm
of
your
hand.
Do
not
use compressed air
for
cleaning nor wash
the
ele-
ment in any liquid. Examine the element
for
cuts, tears
or
splits and replace
it if
damaged in any way.
Remove the upper snorkel adaptor from the lower end
of
the air filter body and examine the interior
of
the snorkel
for signs
of
dust.
If
any
dust
is
detected inside the
snorkel, then the filter element
MUST
BE
REPLACED.
Use
replacement element part number AF07276A.
CLEANING
U/SIDE
OF
MOWER
Stop engine and turn fuel tap
"Off".
Disconnect spark
plug lead and wedge the terminal between cylinder head
fins. Ensure throttle control
is
set in
"Stop"
position
to
eliminate fire risk, before attempting
to
clean mower. The
underside
of
your
mower
should be cleaned
to
remove
clogged dirt
or
grass
which
if
allowed
to
build
up
will af-
fect
the
grasscatching performance. It should always be
cleaned immediately after
mowing,
especially
if
an area
has just been dressed
with
sulphate
of
ammonia
or
fer-
tiliser,
to
prevent baseplate corrosion.
A hose may
be
used on
the
underside
of
your
mower
only and special care
must
be taken NOT
to
get
water
in-
to
the engine area
of
your mower,
as
damage may be
done to
the
magneto,
or
water
could get
into
the fuel
system.
If
it
is cleaned regularly
the
baseplate remains
easy
to
clean, because
the
dirt and grass does
not
get
a
chance
to
clog.
NOTE:
When
mowing
in
dusty
conditions ensure
the area
is
lightly watered beforehand
to
eliminate dust.
TROUBLE
SHOOTING
CHART
WARNING:
Disconnect
spark
plug
lead
from
spark
plug
and
wedge
the
terminal
between
cylinder
head
fins.
Ensure
throttle
control
is
set
in
"STOP"
position
to
eliminate
fire
risk
before
attemp-
ting
to
clean
mower,
fit
blades,
or
carry
out
any
maintenance
or
repairs.
Note:
In two-stroke engines generally,
difficult
starting and erratic running
is
most
often caused by
dirty
spark
plugs.
If
fitting
a clean spark plug
of
the correct type
which
.is known
to
be functioning, does
not
restore the
engine
to
proper operating condition,
the
problem may be solved
from
the
following
chart.
PROBLEM
POSSIBLE CAUSE
CORRECTION
DOES
NOT
START
Dirty Spark Plug.
Clean or replace.
Out
of
fuel.
Refill tank
with
correct fuel. Start
at
"COLD
START."
Stale fuel left in tank
from
last season.
Drain and refill tank
with
correct fuel.
Water in fuel tank.
Drain and refill tank
with
correct fuel.
Throttle Lever in incorrect position.
Refer instructions Page 4
Spark Plug leads
not
connected.
Refer instructions Page 4
Ignition Cut-Out still in contact.
Push
Throttle
Control Lever
to
"Grasscutting"
before setting
at
"Cold
Start."
LOSS
OF
POWER Dirty Spark Plug.
Clean
or
replace.
Dirty air cleaner Cartridge.
Clean
or
replace-Refer
Page 7
Too
low
height adjustment.
Raise cutting height.
Caked
on
dirt and grass under base-
plate restricts blades.
Clean-Refer
Page 7
POOR
CUT
Blades
worn
or damaged. Renew.
Blade disc loose. Tighten nut.
Slow
running.
Refer
"Loss
of
Power."
EXCESSIVE VIBRATIONS
Build up
of
grass and dirt on upper
surface
of
blade disc.
Clean.
Blades out
of
balance. Renew.
Bent blade.
Renew.
Looseness
of
assembly.
Check all nuts
for
tightness.
7
