ASSEMBLYPROCEDURES
14

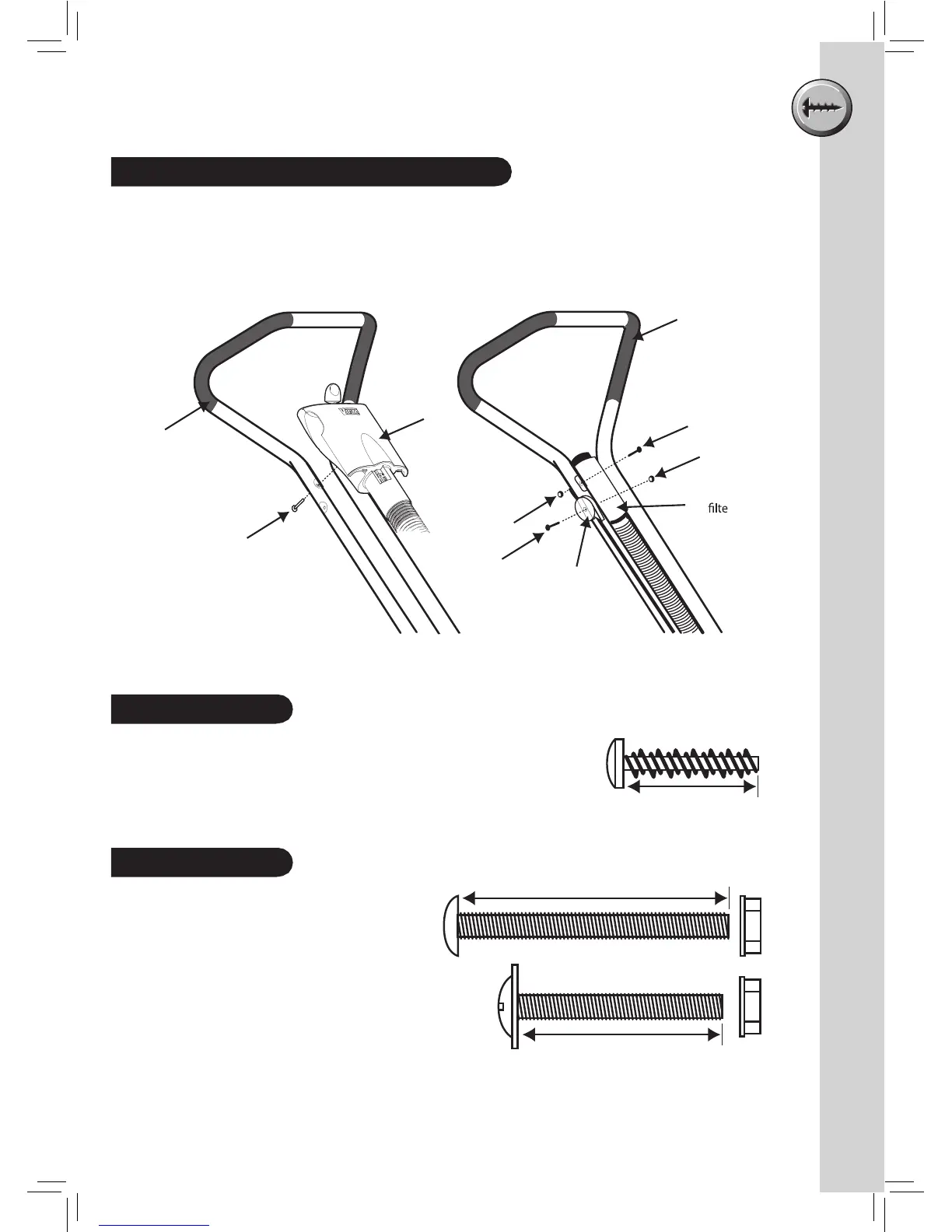

Attaching The Remote Air Filter Housing
Aerogrip Handles
4 Stroke Models
4 Stroke Models
1 Firstly secure the throttle control to the
right hand side of handle, on the outside
(seeFig.4)usingthe50mmscrewand
nut pictured here.
2 Formodelssuppliedwithremoteair
filter. After attaching the throttle control,
secure the air filter housing to the right
hand side of handle, on the inside (also
Fig 4), using the 38mm screw and nut
pictured here.
Slide the air filter housing onto the upper handle. Position locating
lug into hole in handle and secure with screw (see Fig.3). Be careful
not to over tighten, as the plastic thread may be damaged.
25mm (Actual size)
50mm (Actual size)
38mm (Actual size)
