Victa Lawnmower - Grasscatcher - fabric type

ASSEMBLYPROCEDURES
6

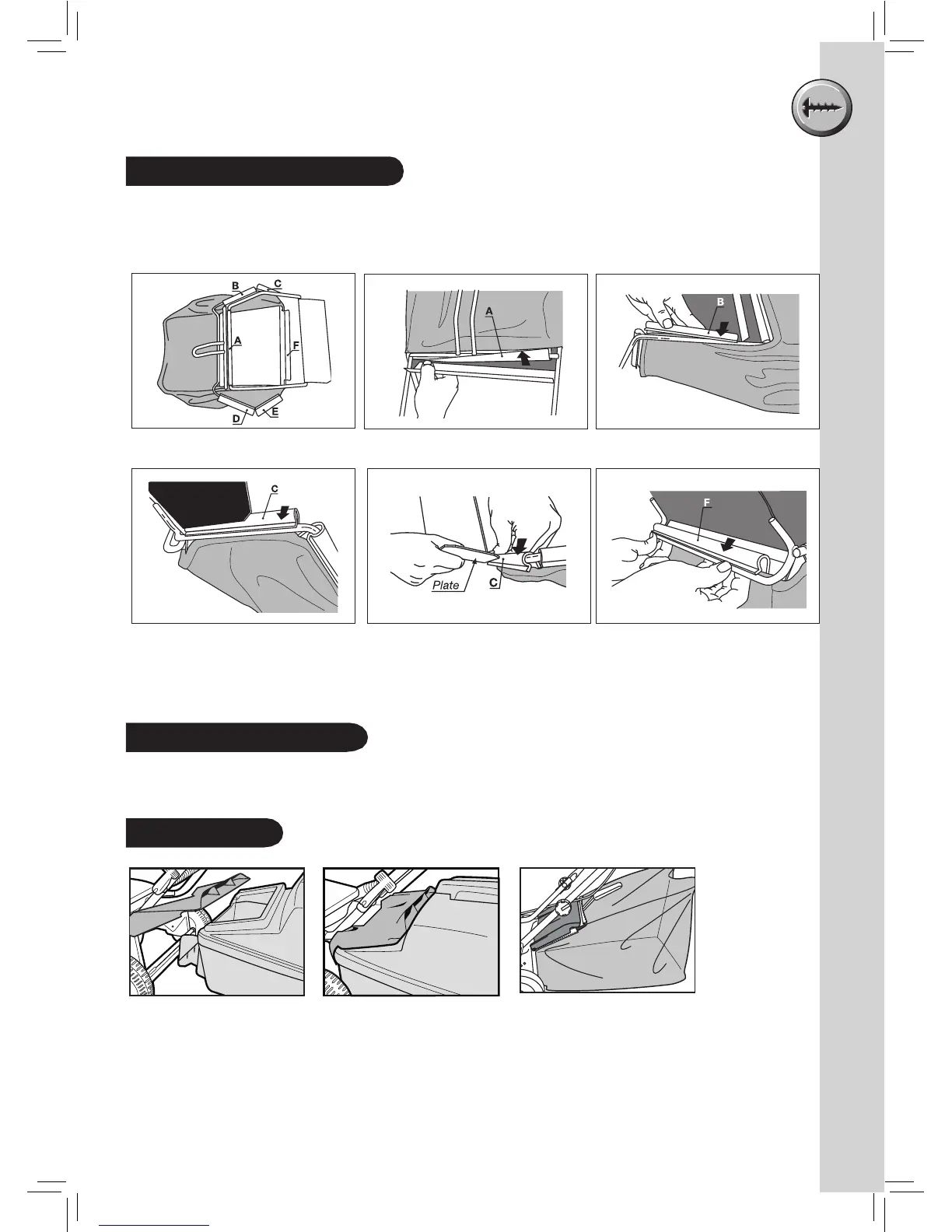

Bag Catcher Assembly Instructions
There are 6 edges (A, B, C, D, E & F) which require to be clipped into the frame.
Grasscatcher - fabric Type Grasscatcher - fabric type
Grasscatcher - fabric
16in model are fully assembled
1 - Insert metal frame into
Catcher Bag.
4 - Clip edge C.
2 - Clip edge A to frame.
5 - Hold the plate in one hand. Then
push edge C through the gap.
Use this method edges C and E.
3 - Clip edge B and repeat the
process for the opposite edge D.
6 - Clip edge F on the under side of
the frame.
Fitting the grasscatcher
• Stoptheengine.
•Raisetherearflap.Locatethegrasscatchertongueovertherearaxleandinsertthe
grasscatcher under the rear flap.
• Lowertherearflaptoretainthegrasscatcher.
Grasscatcher
catcher bag.
