6
ASSEMBLY PROCEDURES
WARNING
• Folding or unfolding the handle improperly can damage the cables, causing an unsafe
operating condition.
• Do not damage the cables when folding or unfolding the handle.
• If a cable is damaged, contact an Authorized Service Dealer.
NOTE: Refer to Figure 3.
• Align the mounting holes on the upper handle (1) and the lower handle (2). Insert the
carriage bolts (3) and use the knobs (4) to tighten them. Repeat the operation on the
other side.
Installing the Upper Handle

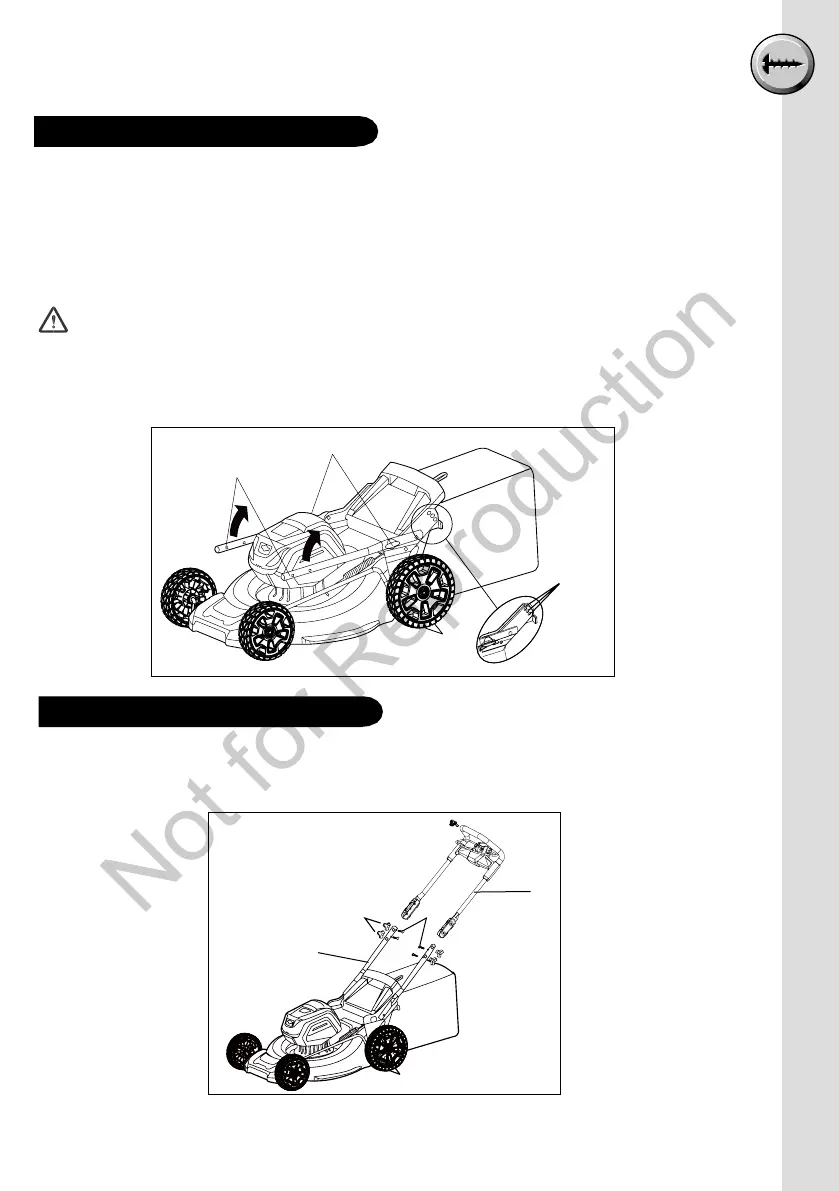

NOTE: Refer to Figure 2.
• Pull and rotate the handle knobs (1) 90° on both sides to loosen the lower handles (2) on
both sides.
•Move the lower handles to the operating position. You may raise or lower the handle to a
position comfortable for you. There are 3 positions (3) for you to choose. Release the handle
knobs to lock the lower handle into position.
Unfolding & Adjusting the Lower Handle
1
2
3
Fig. 2
1
2
3
4
Fig. 3
