22

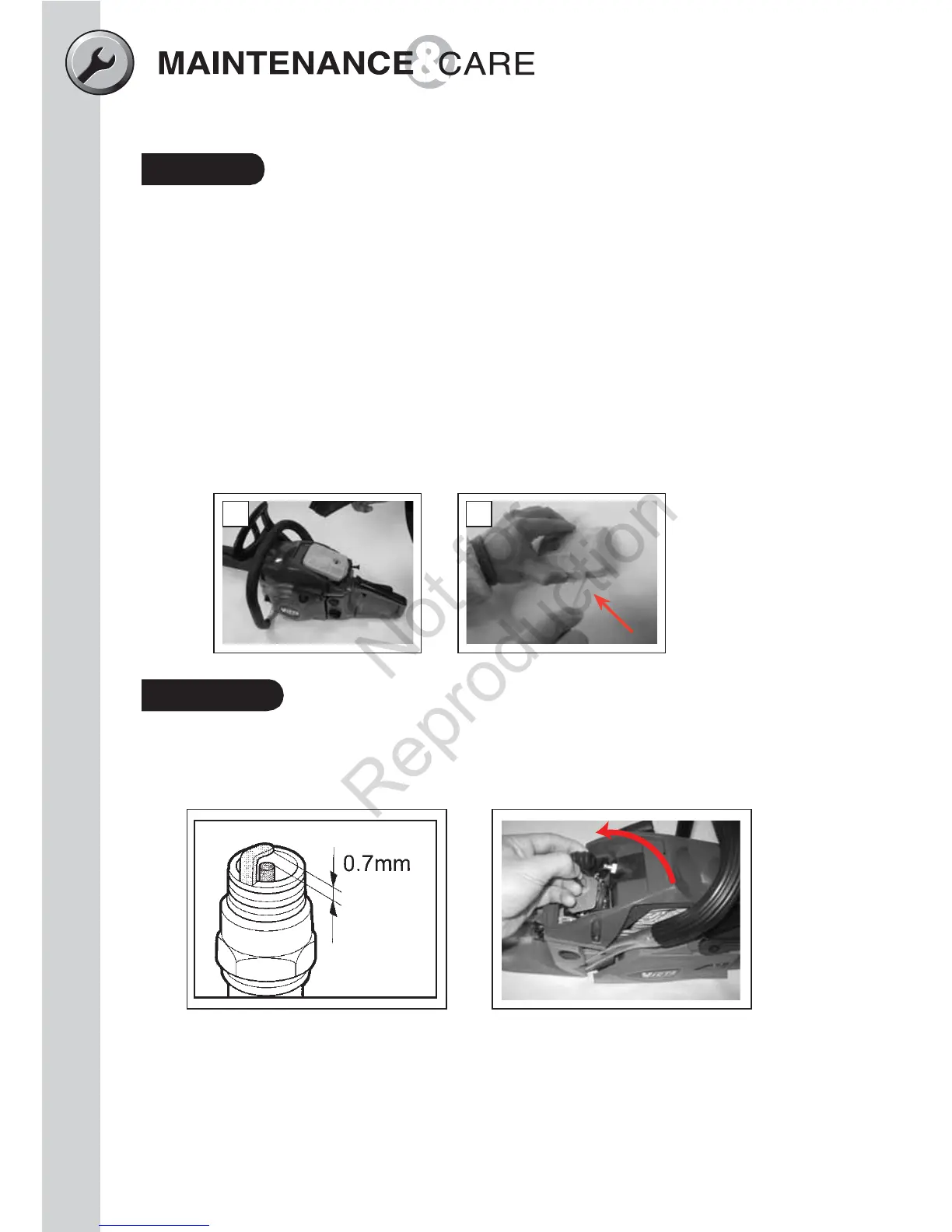

Air Filter
Spark Plug
Your chainsaw should be fitted with a CHAMPION spark plug OR equivalent. (Champion - RCJ7Y)
Spark plug gap = 0.028 inch (0.7 mm).
Tighten the spark plug with a torque of 12-15 Nm.
Removing / Replacing the Spark Plug
1. Remove air filter cover
2. Unplug spark plug boot from spark plug
3. Unscrew spark plug using the wrench provided anti-clockwise
4. Replace with a new spark plug screwing clockwise - torque to 12-15 Nm.
Cleaning the Air Filter
1. Remove air filter cover to locate the air filter.
- Remove air filter from unit.
2. To clean the air filter slightly tap the edge of the air filter against a hard surface, if
a more vigorous clean is needed then:
- Seperate the two halves using the provided screw driver to divide the two halves
as shown below.
- Clean both halves with gasoline and a brush.
- Allow to dry, then reassemble the two halves by pressing them together.
3. If damage replace with a new air filter.
1. 2.
