Victoria Arduino Black Eagle UA 388 User Manual

110
Boiler body VA388 0.180 3 Gr
List of Parts Liste des composants
Corps chaudière VA388 0.180 3 Gr
Copper CIJ-DHP 99.9
Cuivre CIJ-DHP 99.9
Copper CIJ-DHP 99.9
Cuivre CIJ-DHP 99.9
Copper CIJ-DHP 99.9
Cuivre CIJ-DHP 99.9
Bevel gear D.180 2 holes
Coupe D.180 2 trous
BOILER FLANGE d 180
FLASQUE CHAUDIERE d 180
Coupling 3/8” Male OT57 CW51DL
Prise 3/8” Mâle OT57 CW51DL
Elbow for welding 3/8 M OT57 CW51DL
Coude à souder 3/8 M OT57 CW51DL
Steam inlet coupling OT 57 CW51DL
Prise vapeur OT 57 CW51DL
Pipe D16X1
Tube échangeur D16X1
Coupling G1-8 F through OT57 CW510L
Prise G1-8 F passante OT57 CW510L
Copper, brass
Material Matériau
Description Description
Description Description
Treatment
Traitement
Cuivre, laiton
Caldaia Boiler Chaudière D.180 3Gr VA388 OT57
Pickling
Décapage
Tolerance
Tolérance
Scale
Echelle
Date Date
Code
Designer
Concepteur
Code
Average
Moyenne
ELEMENT
ELEMENT
PART NO.
NUMERO COMPOSANT
DESCRIPTION
PROJECT DATA FOR DIRECTIVE PED 97/13/EC
DONNEES PROJET DIRECTIVE PED 97/13/CE
VOLUME
VOLUME
DESCRIPTION
MATERIAL
MATERIAU
STANDARD
NORMES
QTY
QTE
FLUID
FLUIDE
Corpo caldaia VA388 0.180 3 Gr

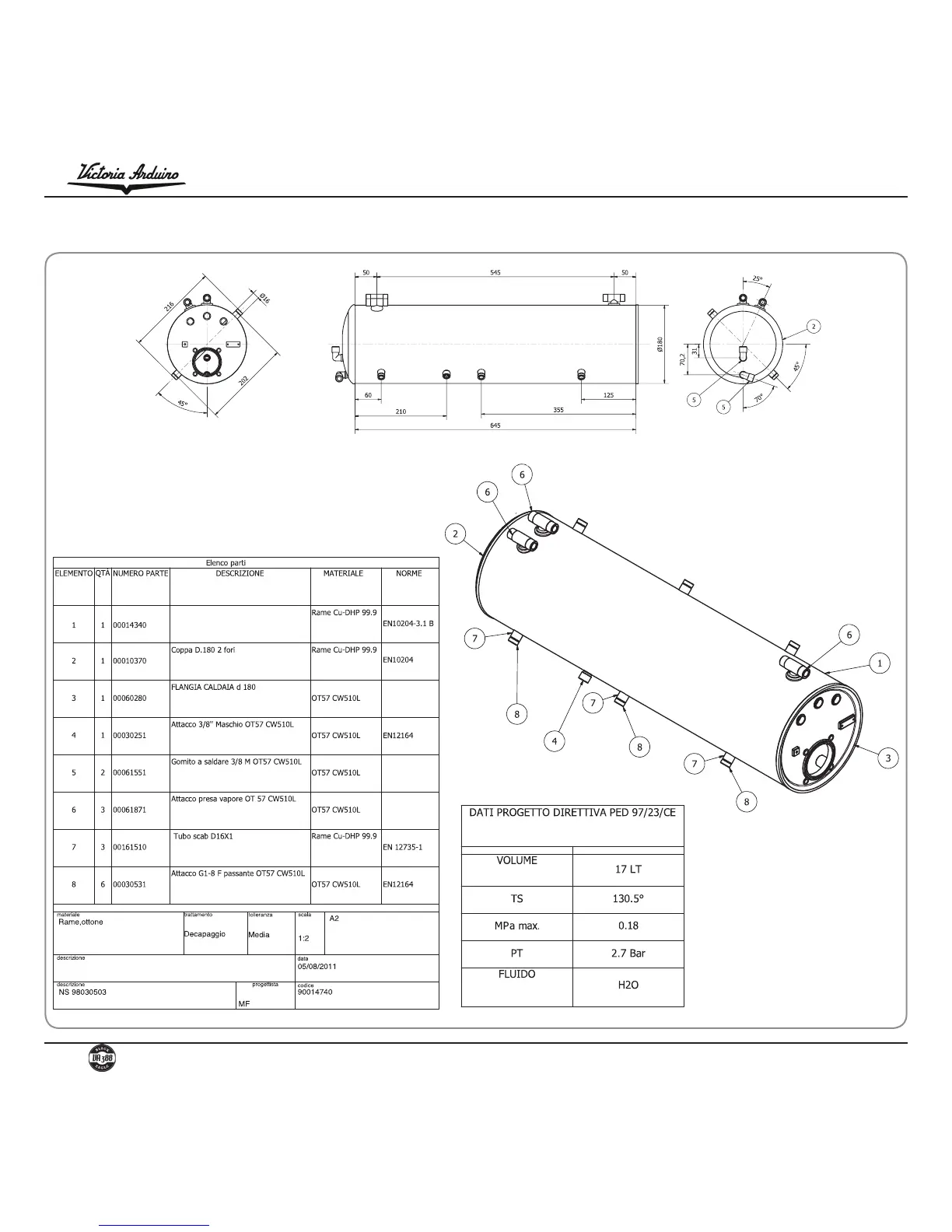

SCHEMA CALDAIA / BOILER DIAGRAM / SCHÉMA DE CHAUDIÈRE
VA388 (3 Gr.)
