Coupe D.180 2 trous
Bevel gear D.180 2 holes
Tube échangeur D16X1
Pipe D16X1
FLASQUE CHAUDIERE d 180
BOILER FLANGE d 180
Prise vapeur OT 57 CW51DL
Steam inlet coupling OT 57 CW51DL
Coude à souder 3/8 M OT57 CW51DL
Elbow for welding 3/8 M OT57 CW51DL
Prise 3/8” Mâle OT57 CW51DL
Coupling 3/8” Male OT57 CW51DL
Prise G1-8 F passante OT57 CW510L
Coupling G1-8 F through OT57 CW510L
PROJECT DATA FOR DIRECTIVE PED 97/13/EC
DONNEES PROJET DIRECTIVE PED 97/13/CE
VOLUME
VOLUME
FLUID
FLUIDE
Copper, brass
Material Matériau
Treatment
Traitement
Cuivre, laiton
Pickling
Décapage
Tolerance
Tolérance
Scale
Echelle
Average
Moyenne
DescriptionDescription
DescriptionDescription
Caldaia Boiler Chaudière
Date Date
Designer
Concepteur
Code
Code
Copper CIJ-DHP 99.9
Cuivre CIJ-DHP 99.9
Copper CIJ-DHP 99.9
Cuivre CIJ-DHP 99.9
Copper CIJ-DHP 99.9
Cuivre CIJ-DHP 99.9
ELEMENT
ELEMENT
PART NO.
NUM. COMPOSANT
DESCRIPTION
DESCRIPTION
MATERIAL
MATERIAU
STANDARD
NORMES
QTY
QTE
List of Parts Liste des composants
Boiler body VA388 D.180 2 Gr
Corps chaudière VA388 D.180 2 Gr
Corpo caldaia VA388 D.180 2 Gr
D.180 2Gr VA388 OT57

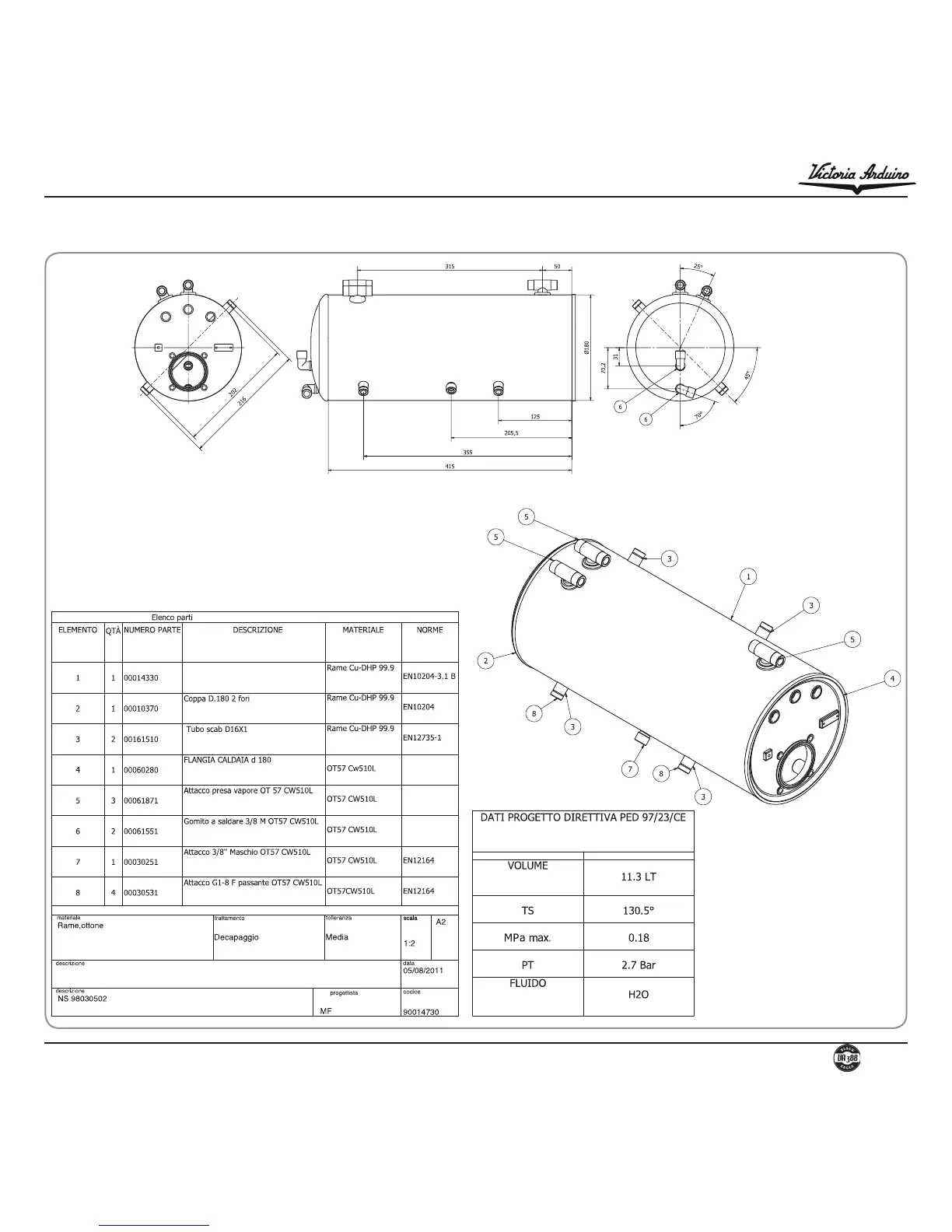

SCHEMA CALDAIA / BOILER DIAGRAM / SCHÉMA DE CHAUDIÈRE
VA388 (2 Gr.)
