Victoria Arduino Black Eagle UA 388 User Manual

112
List of Parts Liste des composants
Flange Pr machined, stainless steel +1 Microbar
Flasque Pr finition inox +1 Microbar
Flange 4 holes machined, stainless steel Microbar
Flasque 4 trous finition inox Microbar
Stainless steel pipe D.76.1 sp1.5 Aisi 316L
Tube inox D.76.1 ép.1.5 Aisi 316L
Heating element for welding 1000W 230V
Stainless steel version 2009 (Dwg. GGS63597)
Résistance à souder 1000W 230V Inox
version 2009 (Dessin GGS63597)
Stud M3x8 stainless steel
Boulon prisonnier M3x8 inox
Bulb support tube microbar stainless steel
Tube porte-bulbe Microbar Inox
Stud M4x15 stainless steel
Boulon prisonnier M4x15 Inox
STAINLESS STEEL
STAINLESS STEEL
STAINLESS STEEL
STAINLESS STEEL
AISI316L
STAINLESS STEEL
AISI316L
STAINLESS STEEL
AISI316L
Note: Boiler in application area, article 3, section 3 97/23/CE
Note: Chauffe-eau dans zone d’application article 3, alinéa 3 97/23/CE
Boiler Chaudière
Stainless steel Aisi 316L
Acier inox Aisi 316L
Moyenne
Average
media
Description Description
Description Description
Date Date
Code
Designer
Concepteur
Code
PART NO.
NUM. COMPOSANT
DESCRIPTION
DESCRIPTION
Material Matériau
Treatment
Traitement
Tolerance
Tolérance
Scale
Echelle
MATERIAL
MATERIAUQTE
QTY
ELEMENT
ELEMENT

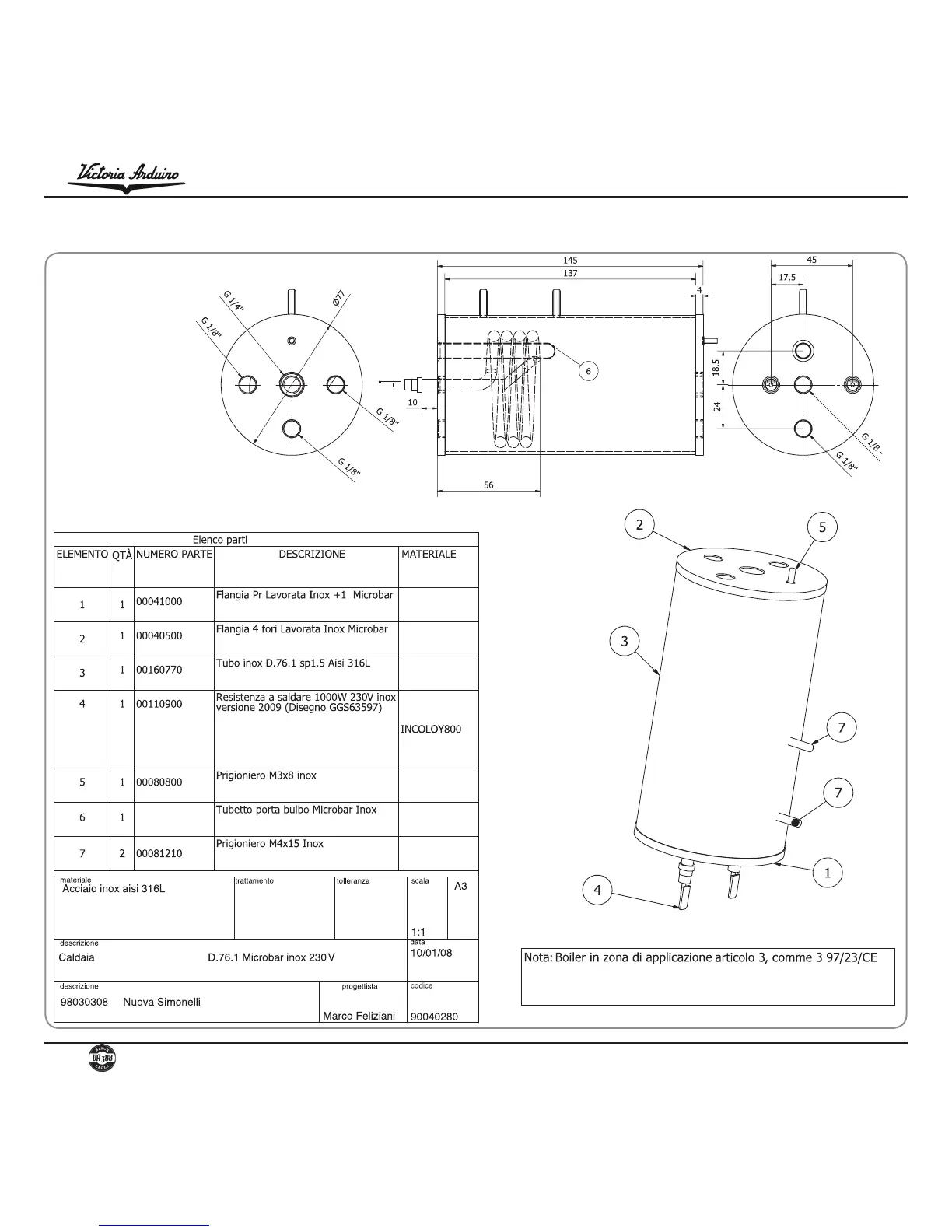

SCHEMA CALDAIA / BOILER DIAGRAM / SCHÉMA DE CHAUDIÈRE
VA388 (2 - 3 Gr.)
