104
IT

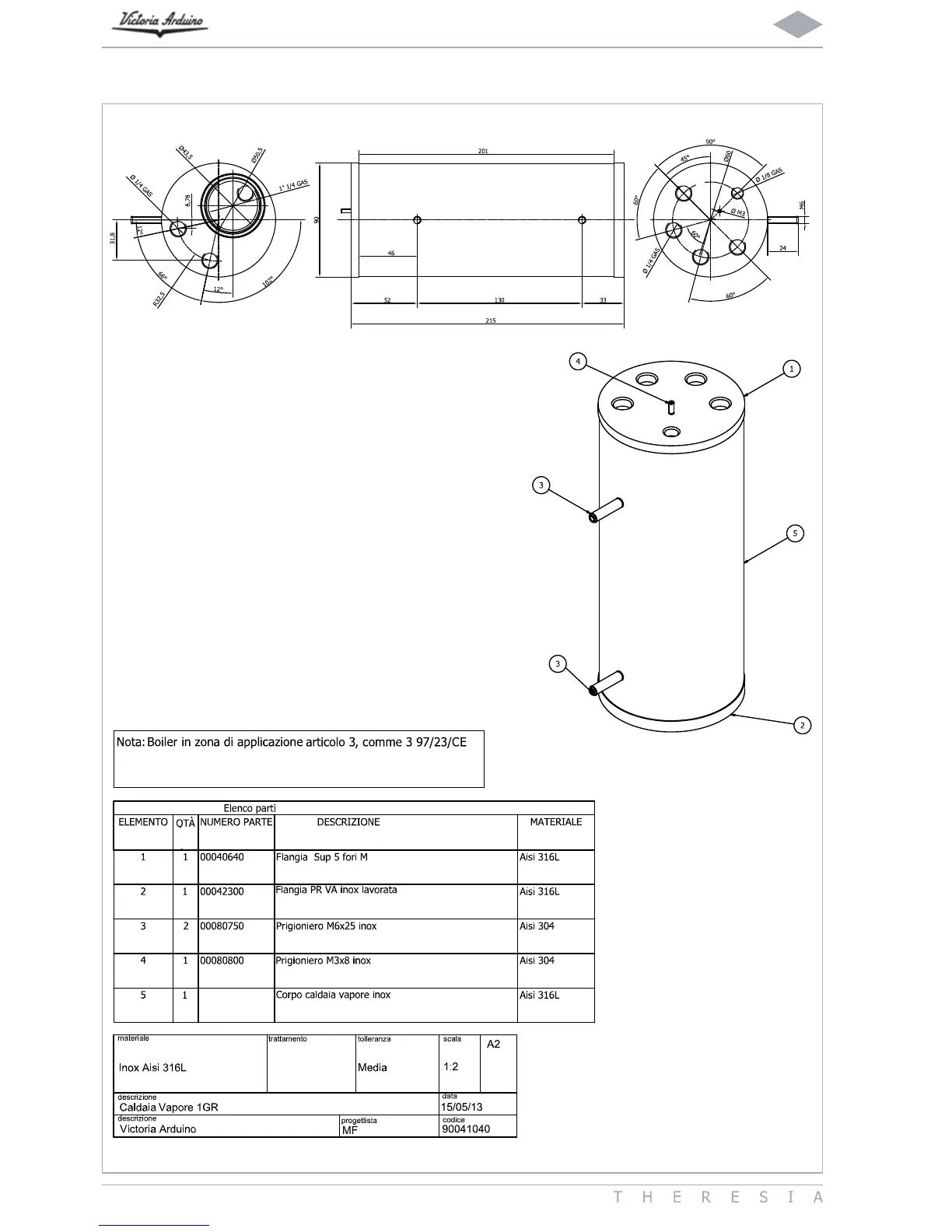

SCHEMA CALDAIA / BOILER DIAGRAM / SCHÉMA DE CHAUDIÈRE
Liste des composants
List of Parts
PART NO.
NUM. COMPOSANT
DESCRIPTION
DESCRIPTION
MATERIAL
MATERIAU
QTE
QTY
ELEMENT
ELEMENT
Material Matériau
Description Description
Steam Boiler 1GR Chaudière à vapeur 1GR
Description Description
Code
Designer
Concepteur
Code
Date Date
Tolerance
Tolérance
Scale
Echelle
Moyenne
Average
Treatment
Traitement
Flange Pr VA machined, stainless steel
Flasque Pr VA finition inox
Stud M6x25 stainless steel
Boulon prisonnier M6x25 inox
Stud M3x8 stainless steel
Boulon prisonnier M3x8 inox
Body steam boiler stainless steel
Corps de la chaudière à vapeur en acier inoxydable
Upper flange 5 holes male machined, stainless steel
Flasque supérieure 5 trous finition inox
Note: Boiler in application area, article 3, section 3 97/23/CE
Note: Chauffe-eau dans zone d’application article 3, alinéa 3 97/23/CE
