LEGENDA / KEY / LÉGENDE
MS Interruttore / Switch / Interrupteur.
R Relè / Relay / Relais.
RS Relè statico / Relay / Relais.
PM Motore pompa / Pump Motor / Moteur
pompe.
HE Resistenza boiler / Boiler heater ele-
ment / Résistance chaudiere.
LP
Sonda livello / Level probe / Sonde niveau.
EV1 Elettrovalvola gruppo 1 / Electrovalve
group 1 / Electrovanne groupe 1.
EV2 Elettrovalvola gruppo 2 / Electrovalve
group 2 / Electrovanne groupe 2.
EV3 Elettrovalvola gruppo 3 / Electrovalve
group 3 / Electrovanne groupe 3.
EV4 Elettrovalvola gruppo 4 / Electrovalve
group 4 / Electrovanne groupe 4.
TE Termostato / Thermostat / Thermostat.
EVHW Elettrovalvola miscelatore / Mixer elec-
trovalve / Electrovanne mélangeur.
P
Pressostato / Pressure switch / Pressostat.
EVS Elettrovalvola sfiato / Vacuum electro-
valve / Electrovanne vide.
RS1 Resistenza scaldatazze 1 / Cupwarmer
heating element 1 / Résistance chauffe
tasses 1.
RS2 Resistenza scaldatazze 2 / Cupwarmer
heating element 2 / Résistance chauffe
tasses 2.
ST1 Sonda temperatura scaldatazze 1 /
Cupwarmer temperature probe 1 /
Sonde température chauffe-tasses 1.
ST2 Sonda temperatura scaldatazze 2 /
Cupwarmer temperature probe 2 /
Sonde température chauffe-tasses 2.
SPC Sensore pressione caldaia / Boiler
pressure sensor / Capteur pression
chaudière.
CRS Connettore relè statici / Static relays
connector / Connecteur relais stati-
ques.
EVL Elettrovalvola livello / Water level elec /
/ Electrovanne niveau.
STS1 Sonda temperatura scaldatazze 1 /
Cupwarmer temperature probe 1 /
Sonde température chauffe-tasses 1.
STS2 Sonda temperatura scaldatazze 2 /
Cupwarmer temperature probe 2 /
Sonde température chauffe-tasses 2.
LED Opzionale / optional / optionnel.
MS1 Interruttore LED (opzionale) / Switch
LED (optional) / Commutateur LED
(optionnel).
LED T Trasformatore LED (opzionale) /
Transformer LED (optional) /
Transformateur LED (optionnel).

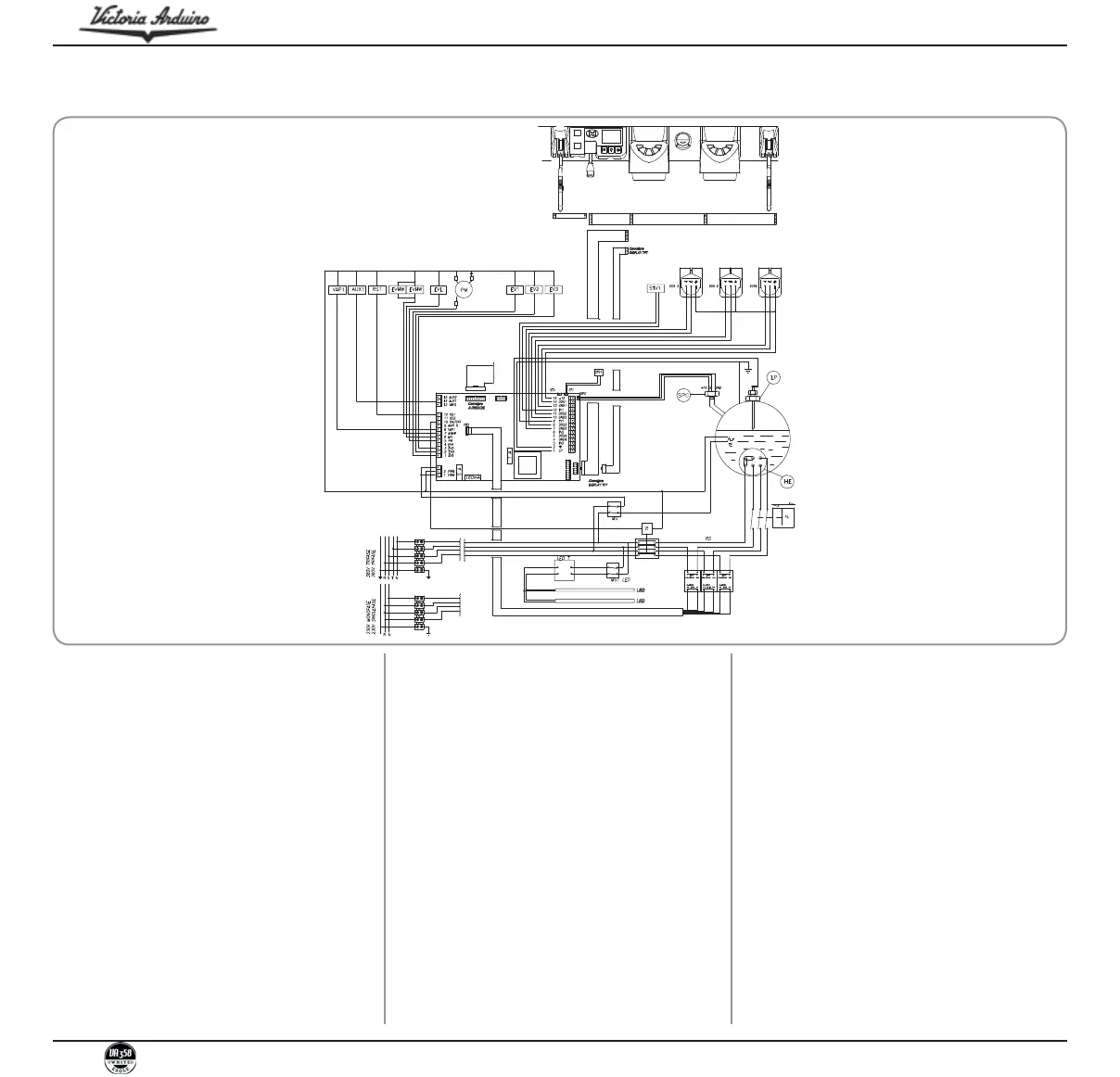

IMPIANTO ELETTRICO / ELECTRIC SYSTEM / INSTALLATION ÉLECTRIQUE
