1). Read the instructions carefully.
2). Make sure the door structure is solid and suitable to
3). Make sure that when the door is moving there are no
4). The door must be properly balanced and must be
easily lowered and raised by hand.
5). Install a 220V, adequately protected 3-pin socket near
Where the GDO is going to be installed.

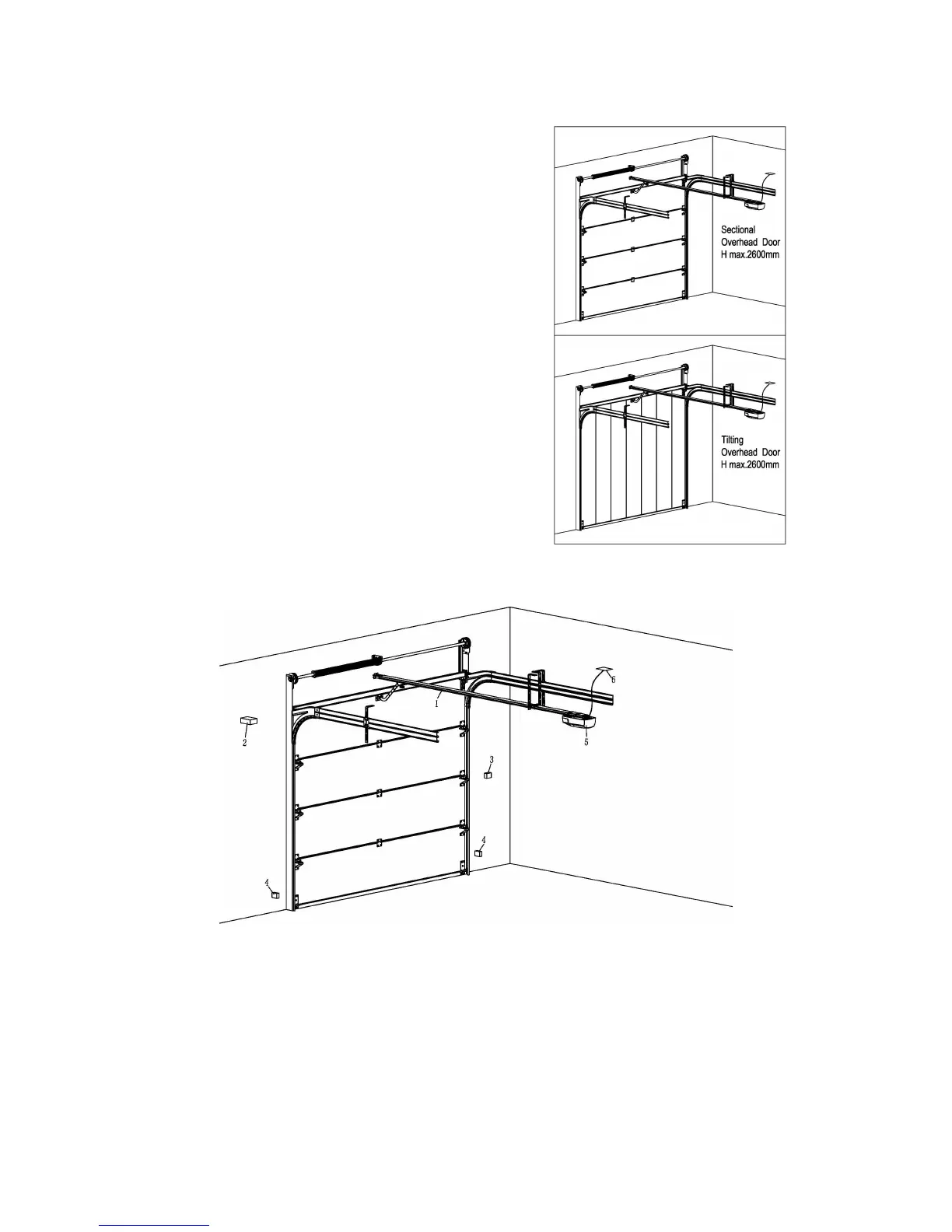

Referring to FIG. 2 for recommended installation
(1) Sectional door rail (2) 24V DC flashing light (optional extra)
(3) Wall button (4) Safety sensor
(5) Interaction panel (6) Power socket
