Vicway VT PRO - Page 8

- 6 -

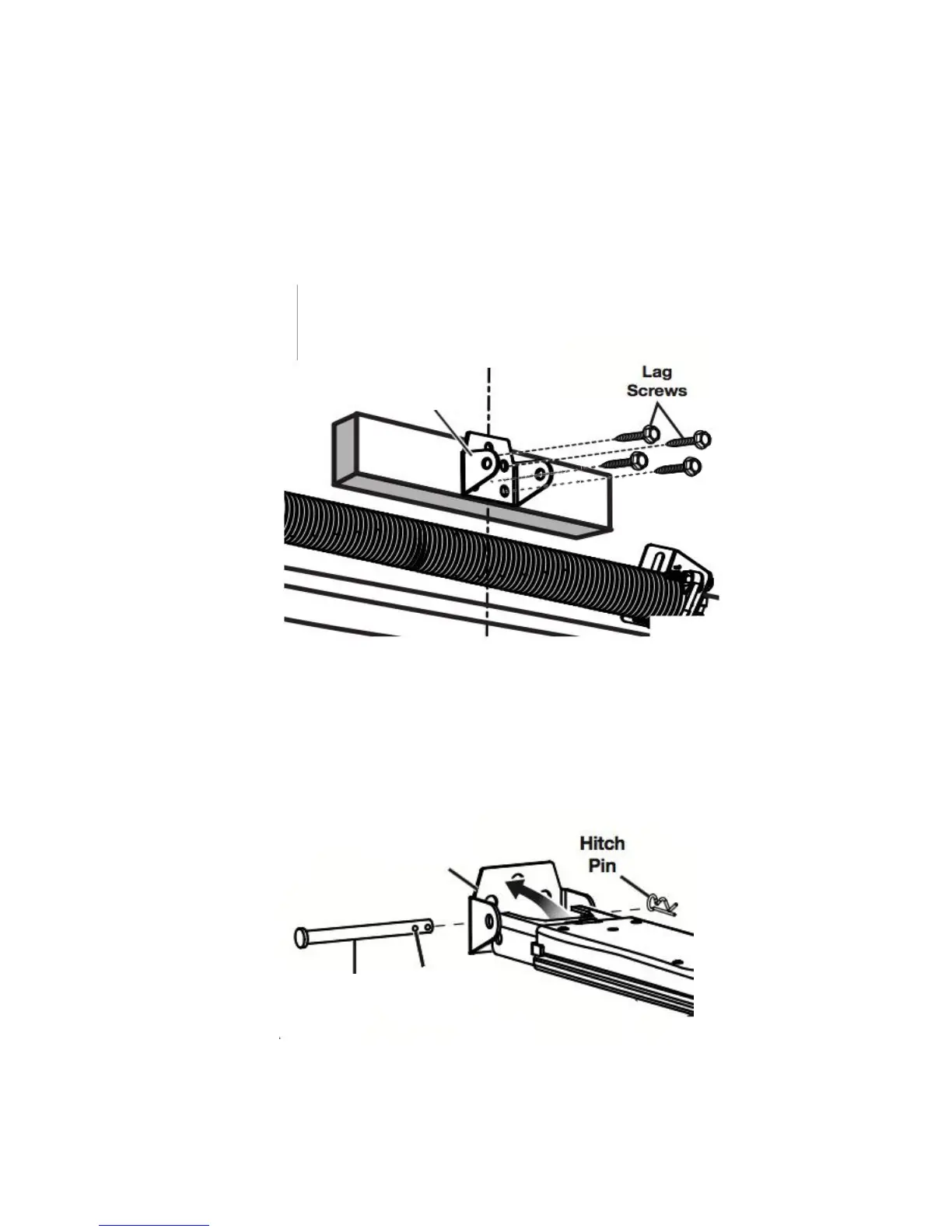

1. Install the track bracket. Locate the position (over the shaft or intermediate bracket for
2cm-15cm, depending on the actual installation space) of the track bracket. Drill four
pilot holes corresponding to the bracket. Mount the track bracket to the wall with
fourM8×40 lag screws by a 1/2-inch socket.
FIG. 5
2. Mount the steel track to the bracket. Align the holes in the bracket and the holes in the
track, then insert theφ8×90cotter pin. Secure by installing the 1.8×38 hitch pin into the
two holes of the cotter pin (FIG. 6)
FIG. 6
Track
Bracket
Cotter pin
First Hole
Track
Bracket
