Rev AA Electronics Compartment 3-5
Videojet 1710 Operator Manual
Electronics Compartment
The electronics compartment contains the parts shown in Figure 3-4 on page 3-5.
Note: When a customer orders a Videojet 1710 printer with an air dryer, the
positive air pump is removed from the printer. The air dryer supplies positive air
to the printhead from an external air source. Air dryers are required when the
printer is operated in an environment with elevated humidity or where certain
water sensitive inks are used. Please contact Videojet Technologies Inc. Customer
Service Department at 800.843.3610 (United States only), or contact the local
Videojet Technologies Inc. representative for more information.
1
2
3
4
5
6

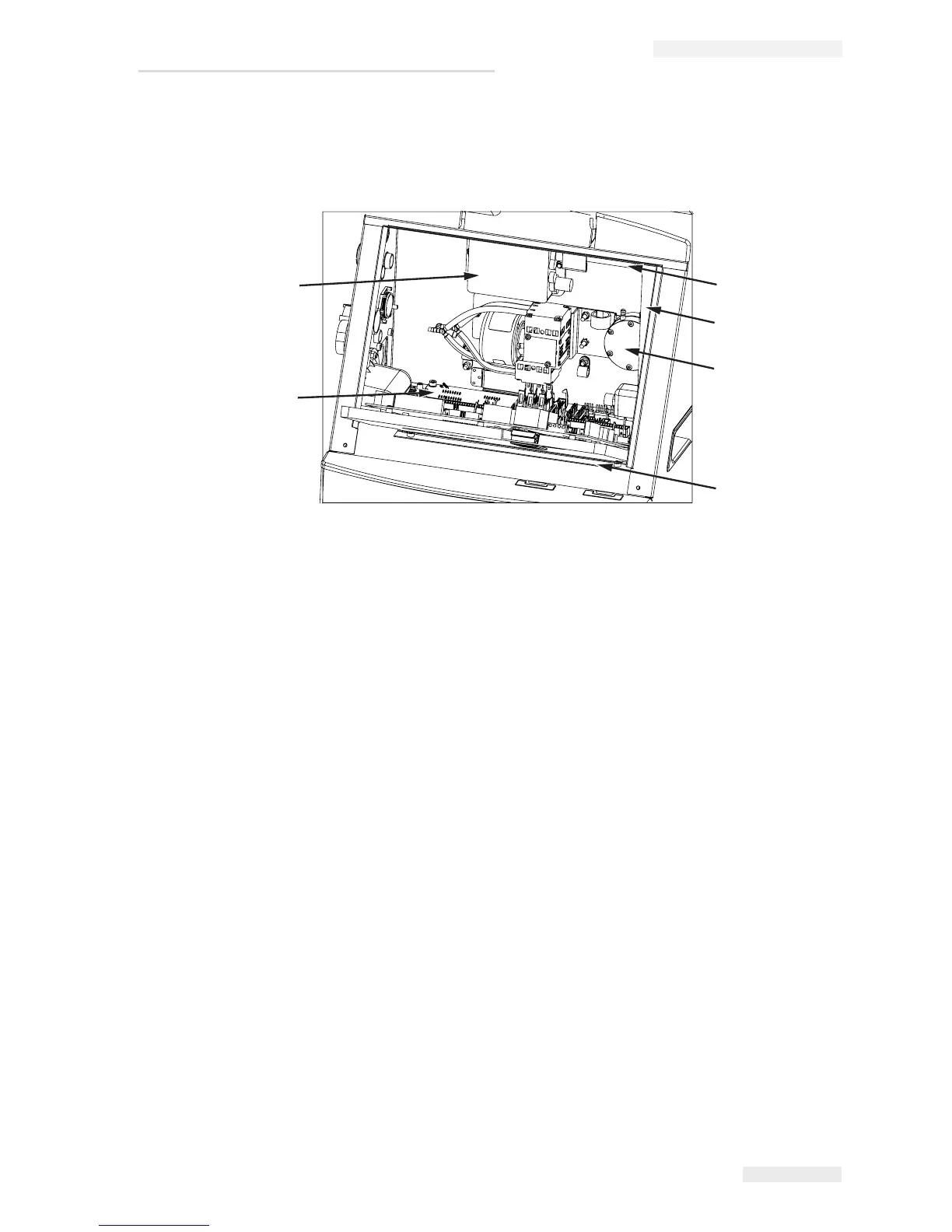

1. Electronics Compartment Fan
2. Power Supply Unit (PSU)
3. Positive Air Pump
4. Control System Board (CSB)
5. Printer Interface Board (PIB)
6. EHT Module
7. Connector Panel Boards*
* - Component is not shown in the figure
Figure 3-4: Electronics Compartment
