3-6 Ink Compartment Rev AA
Videojet 1710 Operator Manual
Ink Compartment
The ink compartment of the printer contains the ink core module, gutter pump/
valve module, and the smart ink and make-up fluid cartridges. The cooling fan
cools the ink compartment and a filter does not allow the dust into the ink
compartment.
Ink Core Module
The ink core module (Figure 3-6 on page 3-7) maintains the pressure and
viscosity of the ink in the printer, and contains the ink core (pump is mounted to
the ink core).
Note: The ink core module comes as a single unit. You cannot remove or replace
any part inside the ink core module except the ink pump.
1
2
3
4

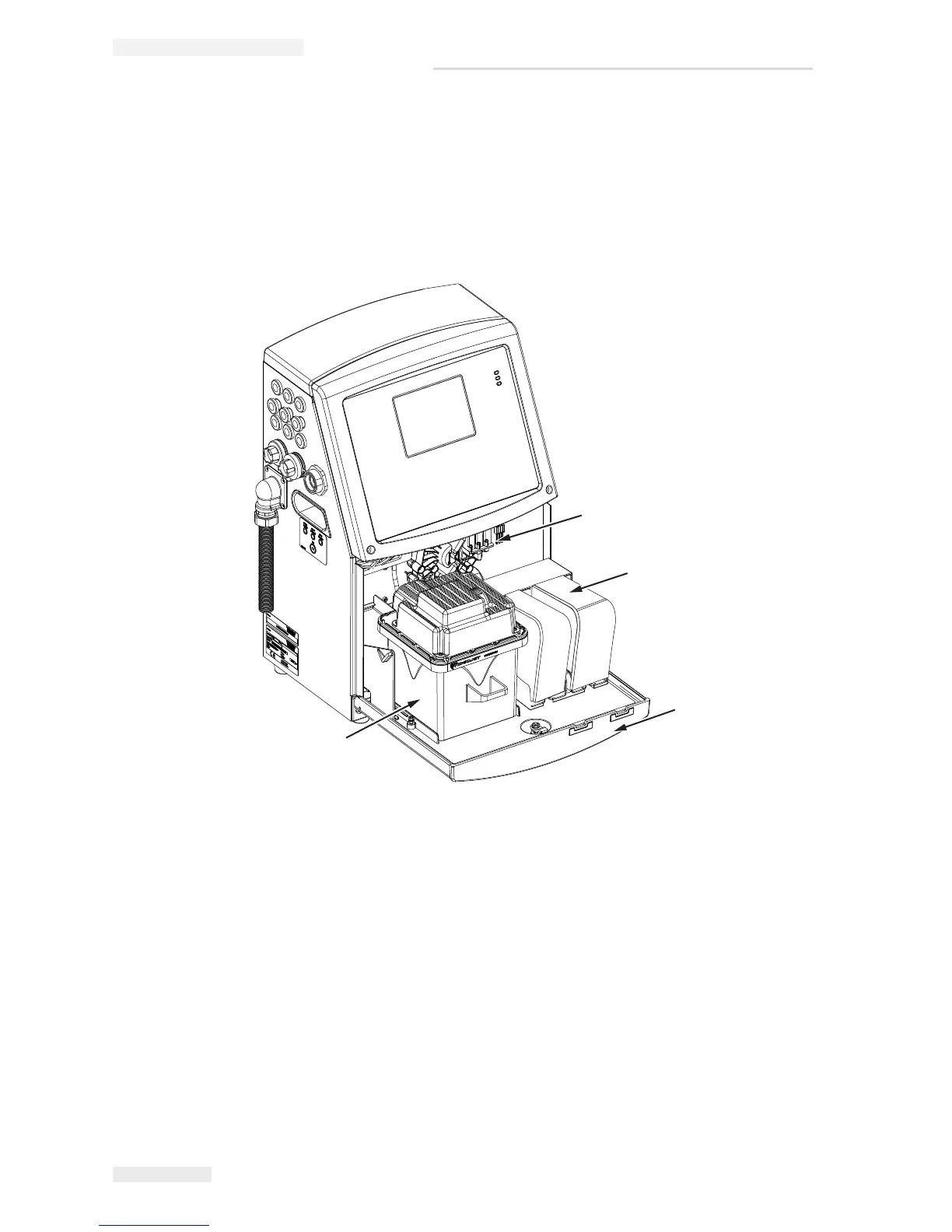

Figure 3-5: Ink Compartment
1. Gutter Pump/Valve Module
Assembly
2. Smart Cartridges
3. Ink Compartment Door
4. Ink Core Module
5. Ink Compartment Fan*
*The component is not shown in the picture
