3

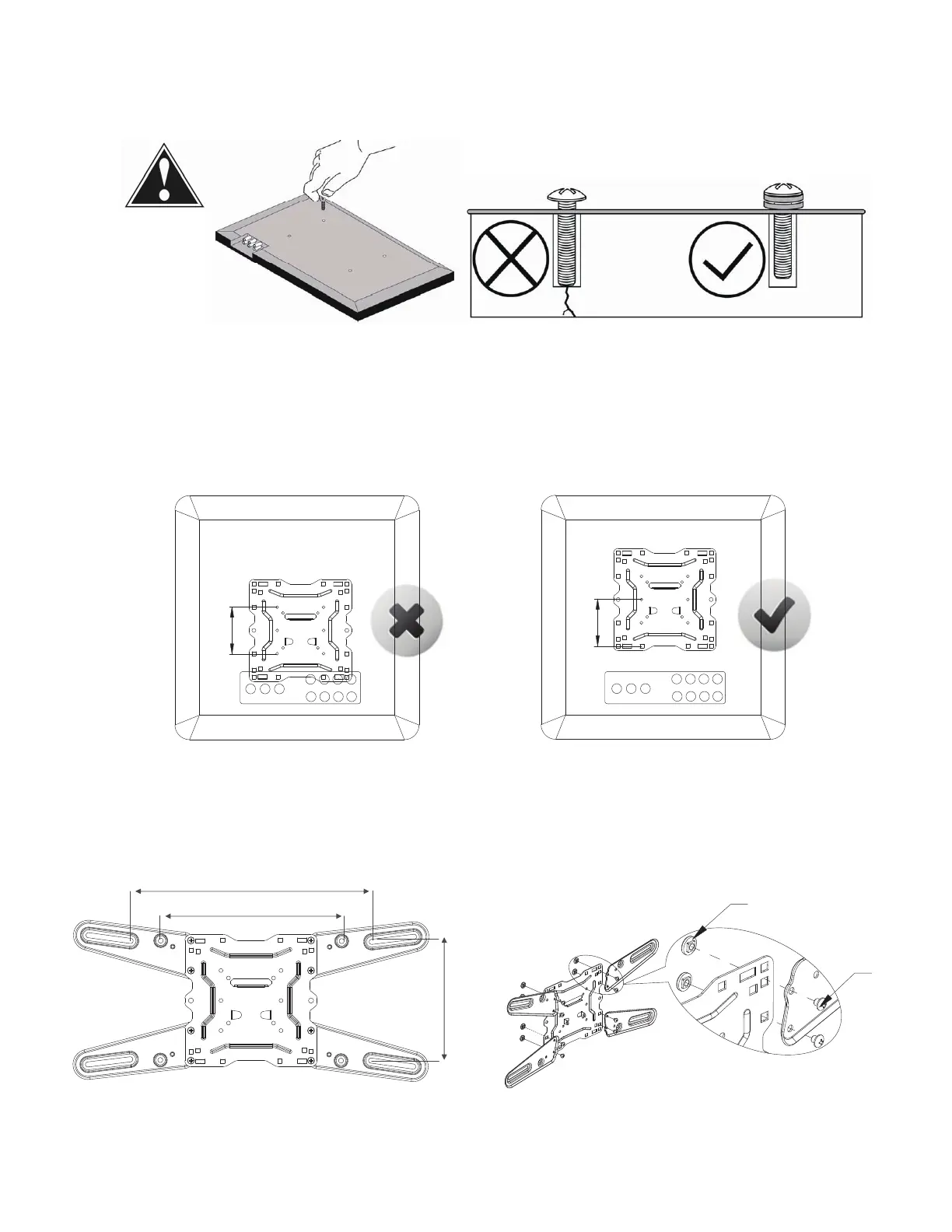

6-4. For TV with mounting hole pattern 300 x 200mm (11 13/16 x 7 7/8 inches),
400 x 200mm (15 3/4 x 7 7/8 inches) install the optional adapter kit as following.
400mm (15-3/4”)
300mm (11-13/16”)
200mm (7-7/8”)
M6*6
Screw
6-3. For TV with smaller mounting holes pattern (VESA 200x100mm or 100x100mm), moving the plate up
or down to select different mounting positions, to avoid block the input panel.
100mm
100mm
WARNING! PLEASE SELECT THE PROPER SCREW LENGTH FOR YOUR FLAT
PANEL BY HAND TIGHTENING TO CHECK YO
UR FLAT PANELS THREAD DEPTH.
Nut
To Next Page
