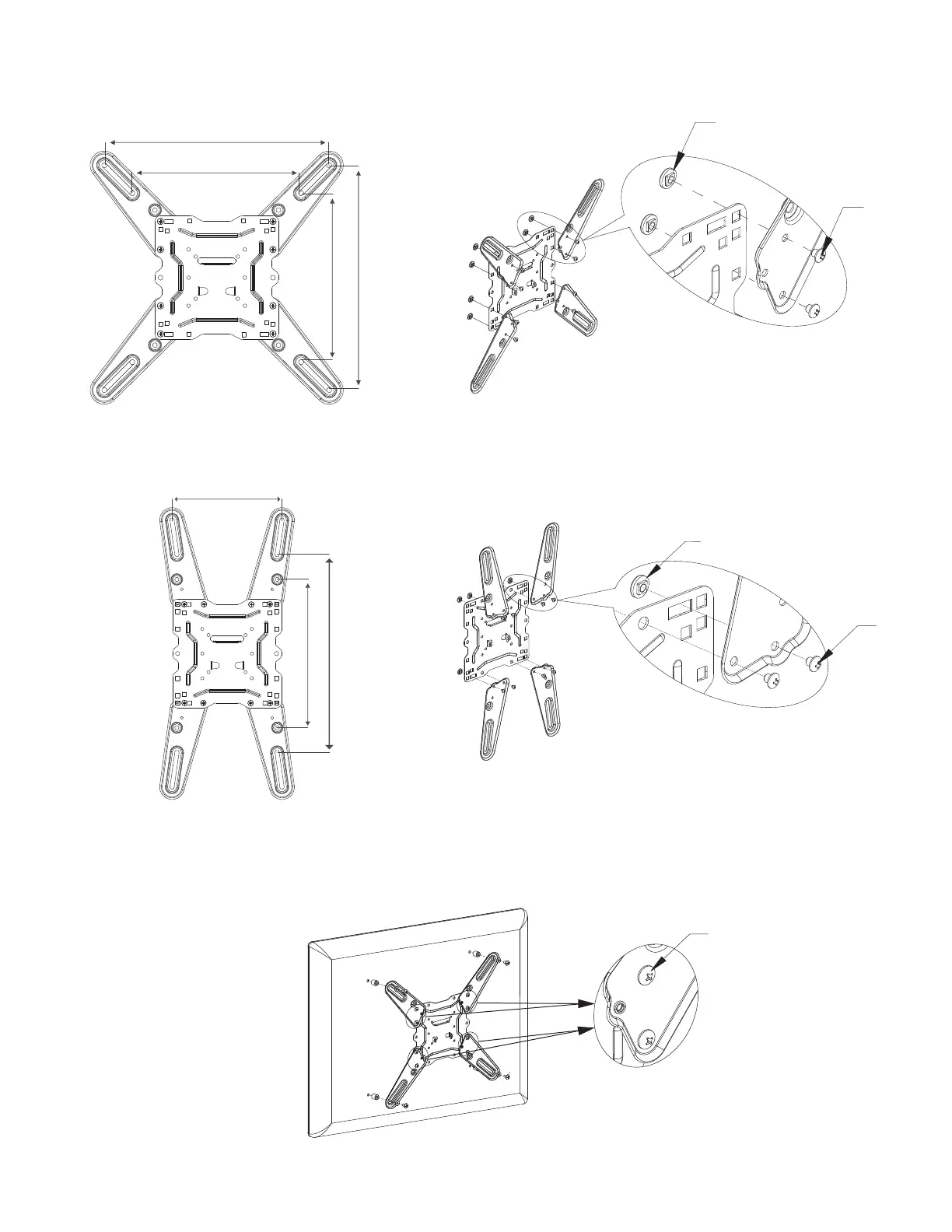

6-5. For TV with mounting hole pattern 300 x 300mm (11 13/16 x 11 13/16 inches),
400 x 400mm (15 3/4 x 15 3/4 inches) install the optional adapter kit as following.
400mm (15-3/4”)
300mm (11-13/16”)
300mm (11-13/16”)
Nut
6-6. For TV with mounting hole pattern 200 x 300mm (7 7/8 x 11 13/16 inches),
200 x 400mm (7 7/8 x 15 3/4 inches) install the optional adapter kit as following.
200mm (7-7/8”)
300mm (11-13/16”)
400mm (15-3/4”)
400mm (15-3/4”)
M6*6
Screw
Nut
Tips: After add extension adaptor kit to the TV plate, if long slot hole not align with TV mounting holes,
loosen the screws attach the adaptor with the TV plate, so you can adjust the adaptors align with TV
screw mounting holes, put TV mounting screws into the TV mounting hole first, then tighten the adaptors.
Loosen the screws
