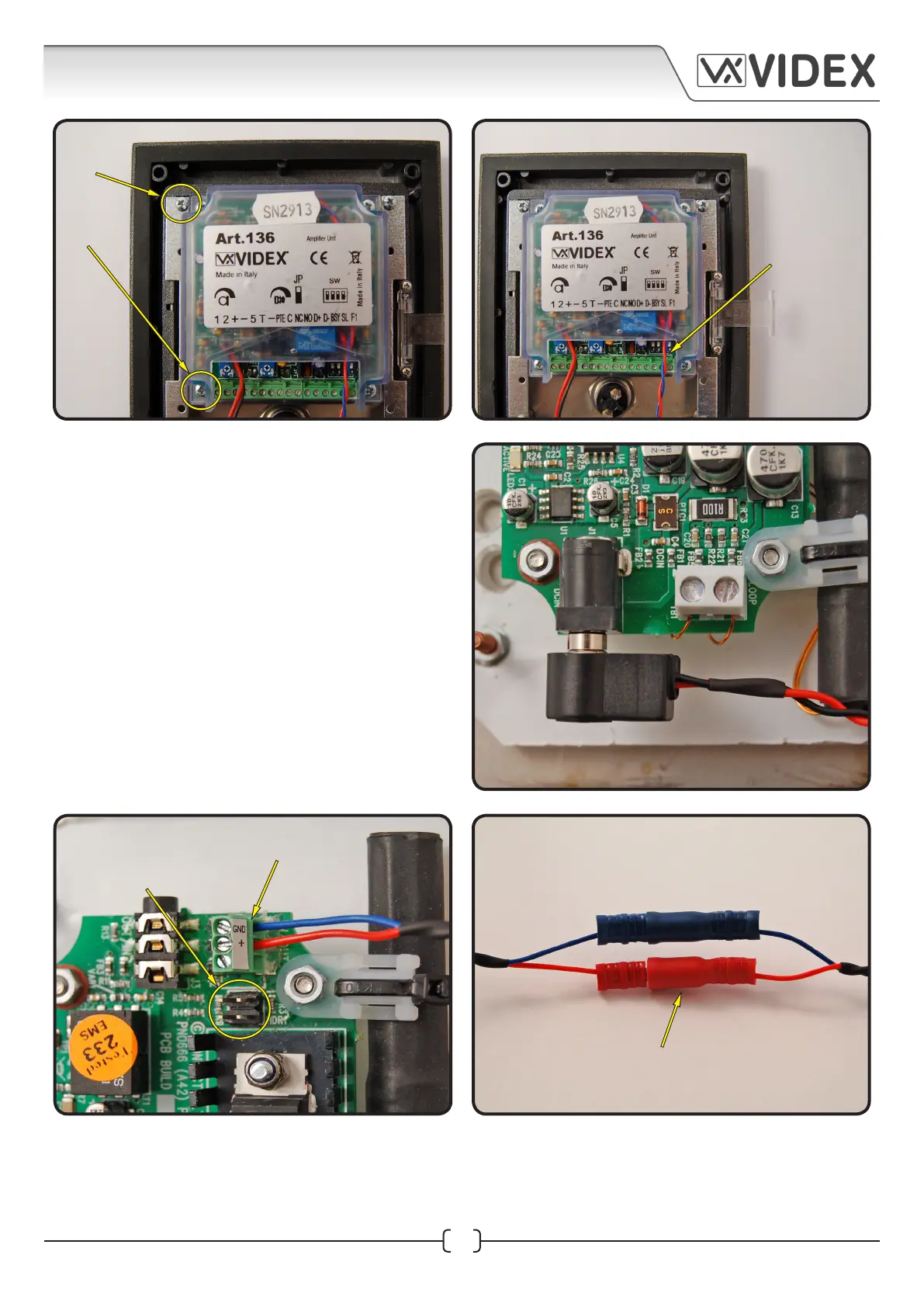

Fig.19Fig.18
13. Next take the 12Vdc power cable and plug
it into the power plug-in terminal at the
bottom of the Induction Loop, as shown in
Fig.20.
14. Next take the Red/Blue male connector
cable and connect it into the terminal block
at the top of the Induction Loop (the Red
wire connects into the +pos termnial and the
Blue wire connects into the GND terminal)
and remove both HDR1 jumpers, as shown
in Fig.21.
15. Finally clip the Red male/female connectors
and the Blue male/female connectors
together as shown in Fig.22.
Fig.20
Fig.21
Fig.22
red/blue male and female
bullet connectors plugged
in together
trailing red/
blue induction
loop wires out
of the gap of the
covering plastic
and over the
speaker terminals
t the
four
M3x12
xing
screws
blue wire into the GND terminal
red wire into the + terminal
remove HDR1 jumpers
