ESVK/6388 Series “2 wire Bus” videokit
ESVK/6388 Series - Installation handbook
ESVKC/6388 Colour videokit plus a codelock module.
50135,0
280,0
45,0 22,7
263,0
INDOOR
STATION
Videomonitor
Art.6388
pag. 23
ACCESSORIES
Power supply
Art.2321
pag. 28
Power supply converter
Art.2322
pag. 29
OUTDOOR
STATION
Flush
Mounting
Surface
Mounting
Camera unit
Art.4384
pag. 10
Codelock
unit
Art.4901
pag. 17

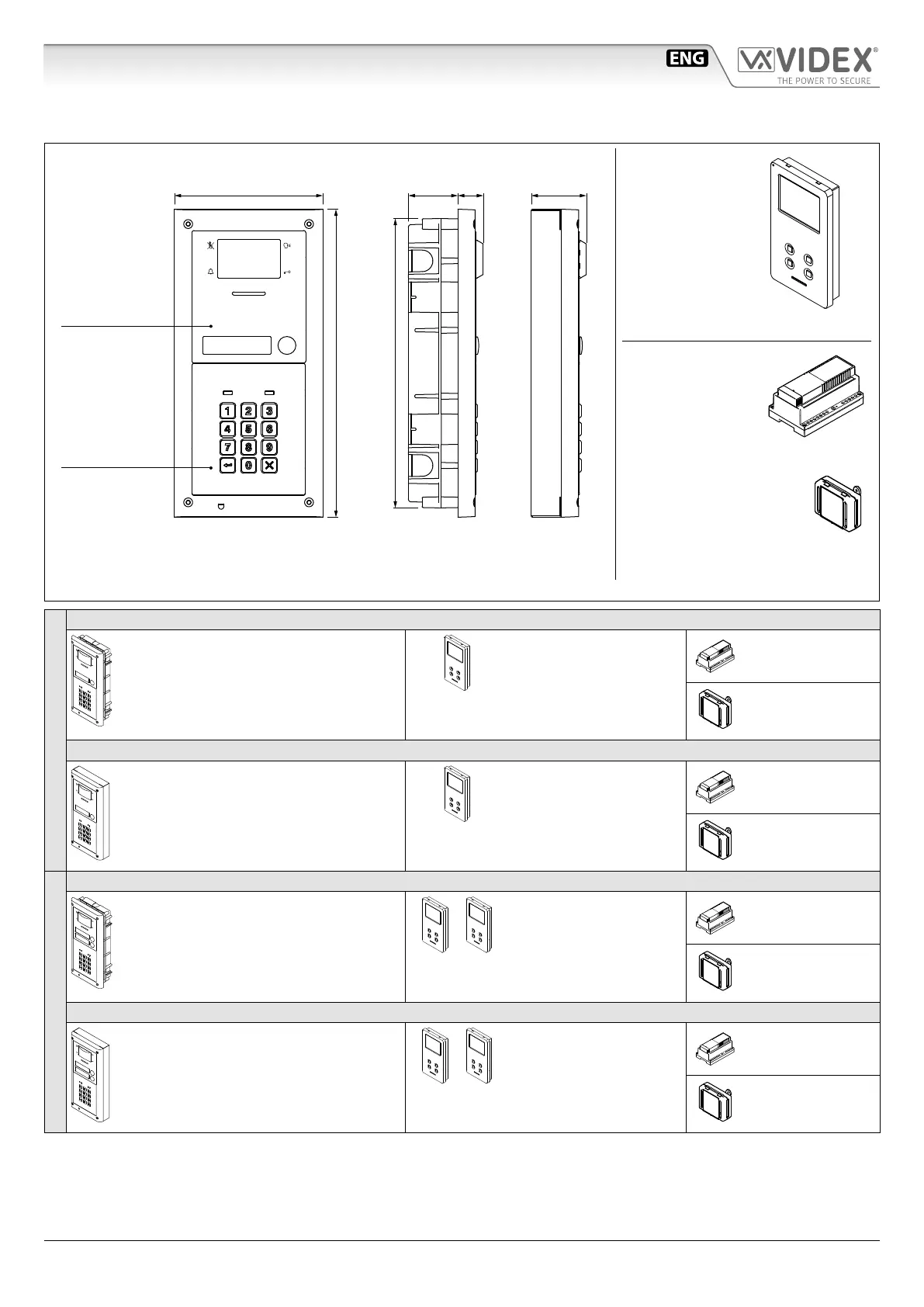

Fig. 3 - ESVKC/6388 components (measures in mm)
ONE WAY VERSIONS
ESVKC-1/6388 - ush mounting
1 Outdoor station composed of:
1 Art.4384-1: 1 button camera unit
1 Art.4901: Codelock module
1 Art.4852: Flush mounting box
1 Colour videomonitor
Art.6388
1 Power supply
Art.2321
1 Power supply
converter
Art.2322
ESVKC-1S/6388 - surface mounting
1 Outdoor station composed of:
1 Art.4384-1: 1 button camera unit
1 Art.4901: Codelock module
1 Art.4882: Surface mounting box
1 Colour videomonitor
Art.6388
1 Power supply
Art.2321
1 Power supply
converter
Art.2322
TWO WAY VERSIONS
ESVKC-2/6388 - ush mounting
1 Outdoor station composed of:
1 Art.4384-2: 2 buttons camera unit
1 Art.4901: Codelock module
1 Art.4852: Flush mounting box
2 Colour videomonitors
Art.6388
1 Power supply
Art.2321
1 Power supply
converter
Art.2322
ESVKC-2S/6388 - surface mounting
1 Outdoor station composed of:
1 Art.4384-2: 2 buttons camera unit
1 Art.4901: Codelock module
1 Art.4882: Surface mounting box
2 Colour videomonitors
Art.6388
1 Power supply
Art.2321
1 Power supply
converter
Art.2322
System components and available versions
