ESVK/6388 Series “2 wire Bus” videokit
ESVK/6388 Series - Installation handbook

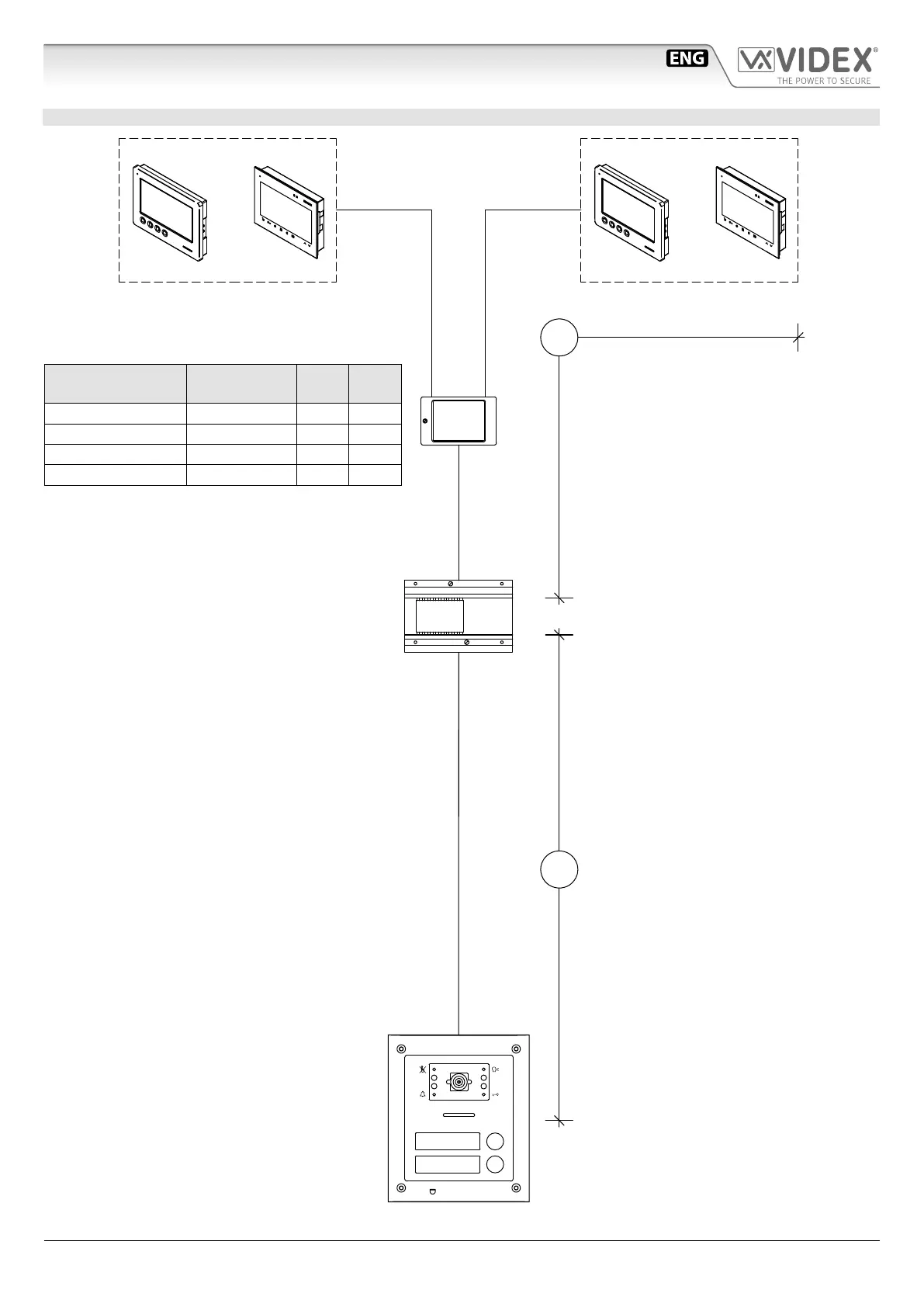

CABLES LENGTH & SIZE
Art.2321
B
A
Art.317N
Art.6788 Art.KRV782
7" Videophones
Or
Art.6788 Art.KRV782
7" Videophones
Or
Cable Type
Wires Section
(mm2)
A+B B max
VIDEX CM2 0.50 300 150
CAT5 UTP/CW1308 0.22 100 50
Std Telephone Cable 0.28 150 50
Standard wire 0.5 70 30
* Using the active distributor Art.317N, the maximum ca-
ble length using CM2 cable increases up to 300 metres.
General directions for installation
