6200 Series
Art.6276 - Installation instructions

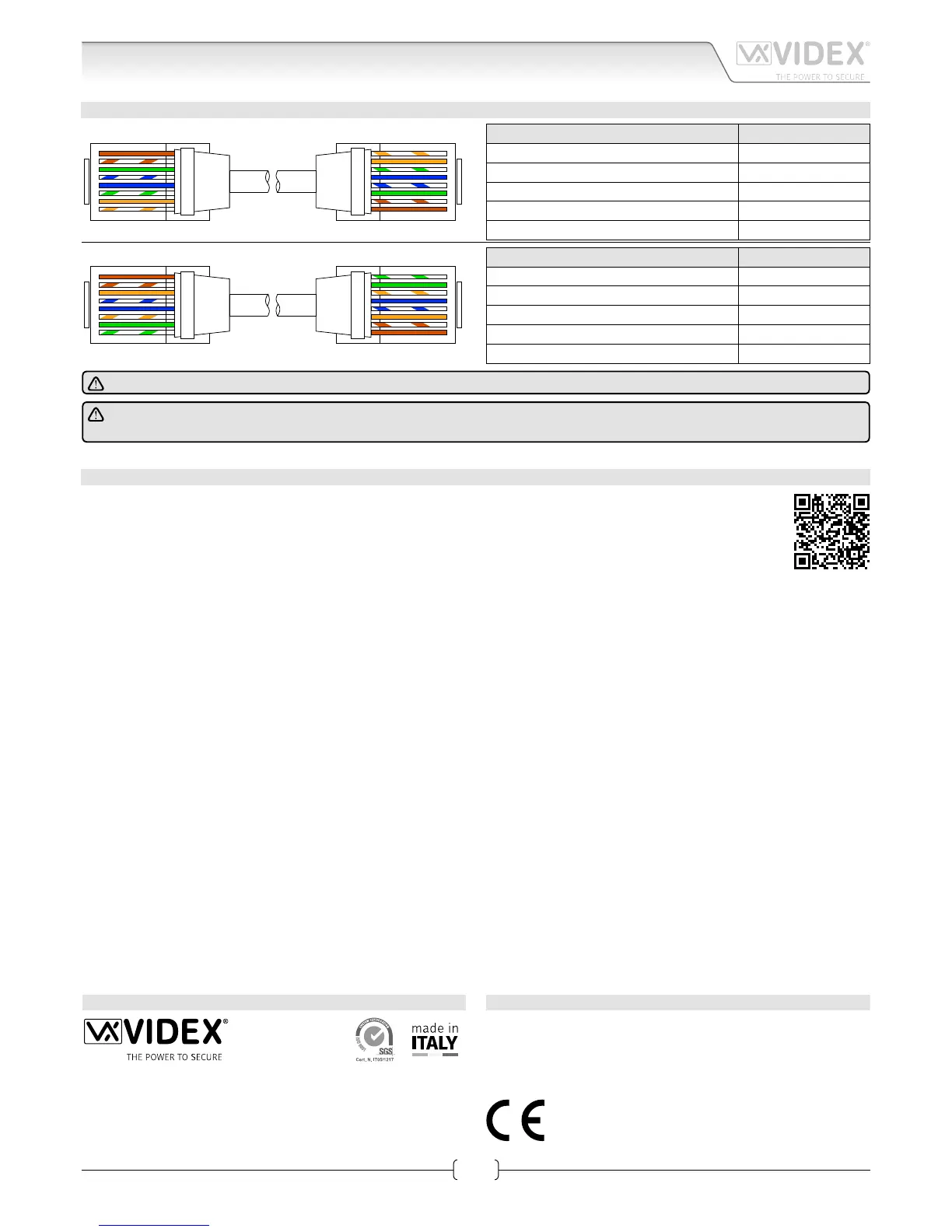

USING RJ45 PLUG TO CONNECT THE VIDEOPHONE
EIA/TIA568B
1
2
3
4
5
6
7
8
o
O
g
B
b
O
br
BR
8
7
6
5
4
3
2
1
BR
br
G
b
B
g
O
o
EIA/TIA-568B
RJ-45 pin VX2200 Signal
1 and 2 (white-orange / orange) L
3 and 4 (white-green / blue) –
5 and 6 (white-blue / green) +
7 (white-brown) V1
8 (brown) V2
EIA/TIA568A
1
2
3
4
5
6
7
8
g
G
o
B
b
O
br
BR
8
7
6
5
4
3
2
1
BR
br
O
b
B
o
G
g
EIA/TIA-568A
RJ-45 pin VX2200 Signal
1 and 2 (white-green / green) L
3 and 4 (white-orange / blue) –
5 and 6 (white-blue / orange) +
7 (white-brown) V1
8 (brown) V2
NOTE: DO NOT USE CROSS OVER CABLES.
IMPORTANT NOTE: SOLID COPPER CABLES MUST BE USED. COPPER COATED STEEL CCS AND COPPER COATED
ALUMINIUM CCA CAN NOT BE USED ON THE SYSTEM.
MEMORY BOARD
This device is also available in the version with memory board (Art.6276/VM).
If you have that version, please refer to the “6200, 6300, 6400 and 6700 Series Memory Board” user manual for
installation and use. The manual is available for download at the following link:
https://www.dropbox.com/s/492p16btyqhxmpu/66250782-EN.pdf?dl=0
Art.6276 3.5" colour display videophone
CUSTOMER SUPPORTMANUFACTURER
All Countries:
VIDEX ELECTRONICS S.P.A.
www.videx.it - technical@videx.it
Tel: +39 0734-631669
Fax: +39 0734-632475
VIDEX ELECTRONICS S.P.A.
Via del Lavoro, 1 - 63846 Monte Giberto (FM) Italy
Tel (+39) 0734 631669 - Fax (+39) 0734 632475
www.videx.it - info@videx.it
UK Customers:
VIDEX SECURITY LTD
www.videx-security.com
Tech Line: 0191 224 3174
Fax: 0191 224 1559
The product is CE marked demonstrating its conformity and is for distribution
within all member states of the EU with no restrictions. This product follows
the provisions of the European Directives 2014/30/EU (EMC); 2014/35/EU
(LVD); 2011/65/EU (RoHS): CE marking 93/68/EEC.
