Viessmann CS 900 Assembly Manual

GB
General notice (liability): the details of this technical documents serve for description. Consents regarding the availability of certain features or
regarding a certain purpose always require a special written agreement.
Page No. 5237334-05 GB 2.1.1 - 2.1.2 Right reserved to make technical changes!

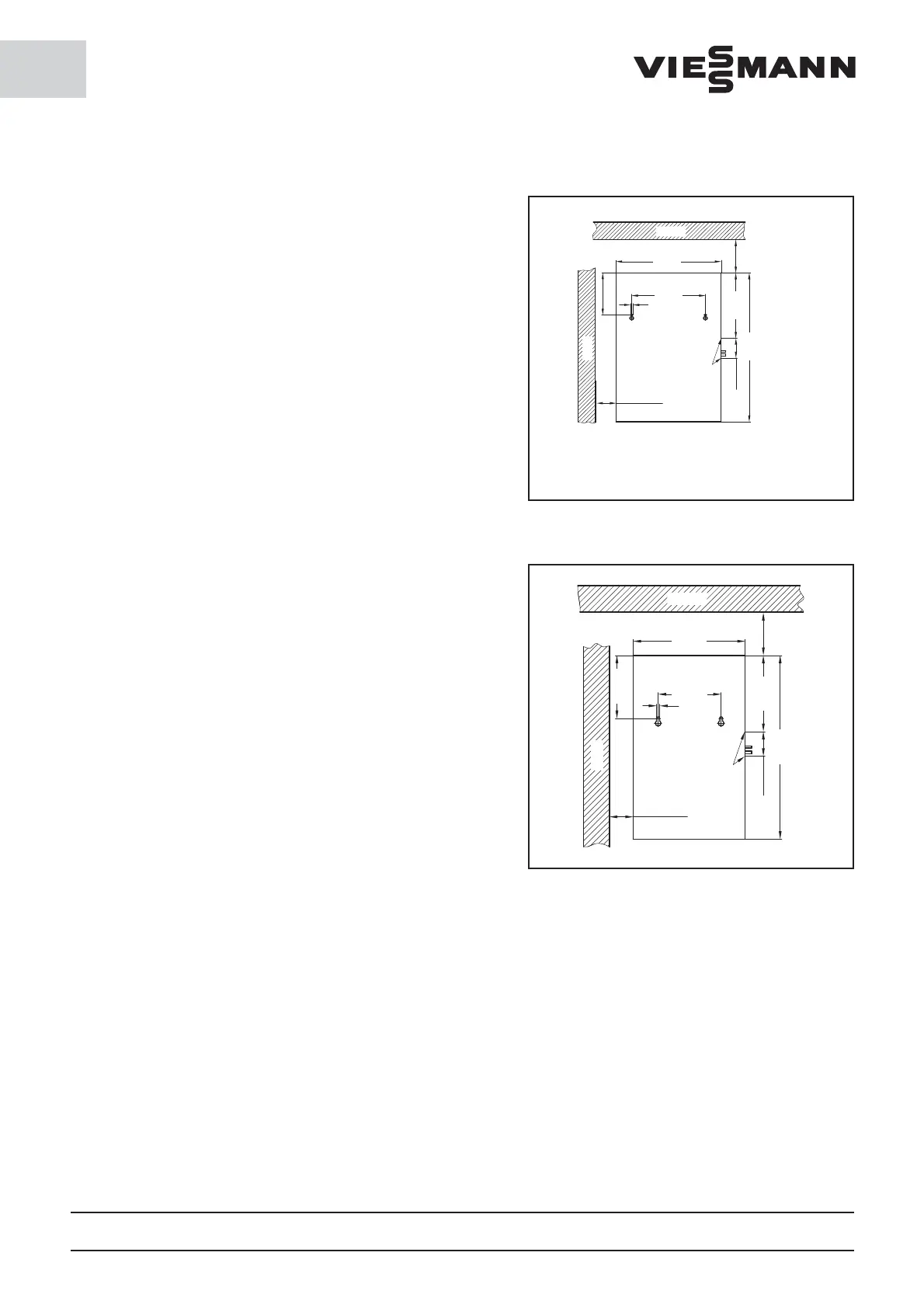

2.1.1 Drilling diagram for fastening the large condensation unit
(CS 2000, CS 2800, FS 1400, FS 1800, FS 2400)
Distance to wall 60 mm.
2.1.2 Drilling diagram for fastening the small condensation unit
(CS 0900, CS 1300, FS 0900)
Distance to wall 60 mm
Conections for
refrigerant and electro
lines to the evaporator
Wall
Ceiling
min. 60 mm
Two drill holes
with 12 mm
12 mm
min.
250 mm
94 mm
420 mm
240 mm
600 mm
390 mm
850 mm
Conections for
refrigerant and electro
lines to the evaporator
Wall
Ceiling
min. 60 mm
Two drill holes
with 12 mm
12 mm
240 mm
220 mm
290 mm
427 mm
700 mm
min.
250 mm
94 mm
